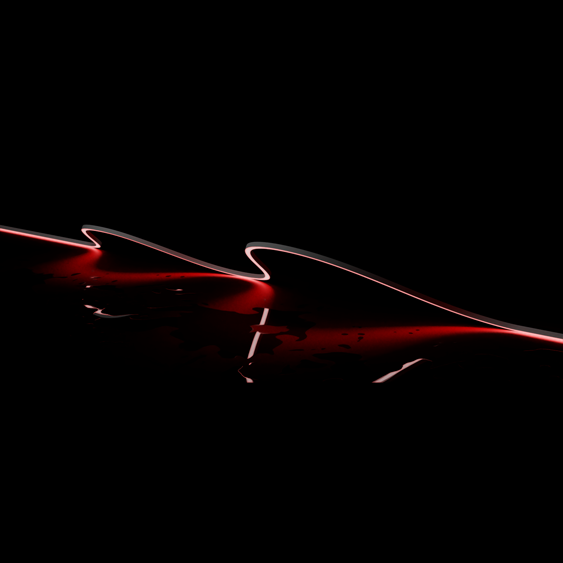

Pleo-Vivid Micro LED Neon Flex 9.6W/m 24V Red Per Metre Domus
Domus Pleo-Vivid micro LED neon flex, 9.6W/m, 24V DC, CRI90, red, sold per metre. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Pleo-Vivid M-S Red Neon Flex, 24V Red LED Neon Strip, Micro LED Neon Flex
- Product Type: Side-view micro LED neon flex
- Power Consumption: 9.6W per metre
- Input Voltage: 24V DC
- Light Colour: Vivid red
- Colour Rendering Index: CRI90
- LED Type: SMD
- LED Density: 140 LEDs per metre
- IP Rating: IP67
- Beam Angle: 110°
- Dimming: Yes, with a compatible controller and driver
- Cutting Increment: 50mm
- Maximum Continuous Run: 5m with single-end feed; 10m with dual-end feed
- Operating Temperature: -15°C to 85°C
- Driver Requirement: Requires a compatible 24V DC constant-voltage LED driver
- Supply Length: Sold per metre; also available in 20m rolls
- Dimensions (H x L x W): 5mm x 1000mm x 10mm
- Weight: 0.15 kg
- Vivid red static-colour output for architectural and feature lighting
- IP67-rated construction for suitable indoor, outdoor and damp-area applications
- Micro side-view profile for vertical illumination and edge-lighting installations
- High CRI90 output for improved colour rendering
- Flexible cutting in 50mm increments
- Dimmable with compatible control equipment
- Suitable for facades, signage, outlines and feature lighting
- Polyurethane-encased low-voltage construction
- Continuous runs up to 5m from one end or 10m with dual-end feeding
- Installation should be performed by a licensed electrician or suitably qualified lighting professional. Use a compatible 24V DC constant-voltage LED driver, observe polarity, provide suitable heat dissipation and waterproof all cut ends and connections for outdoor use. Install the complete electrical system in accordance with AS/NZS 3000:2018.
- Architectural feature lighting
- Building facades and exterior outlines
- Signage and illuminated lettering
- Retail, hospitality and entertainment displays
- Cove, wall and floor-edge lighting
- Outdoor landscape and garden feature lighting
- Decorative lighting in damp areas
- AS/NZS 3000:2018 Electrical installations for selection and installation of the 24V DC lighting system
- AS/NZS 60598.1:2025 Luminaires - General requirements and tests as a relevant luminaire safety reference
- Low-voltage 24V DC operation supports efficient LED lighting system design
- LED technology provides lower energy consumption than many conventional decorative lighting sources
- Long service life can reduce replacement frequency and material waste
- IP67 construction supports durable use in demanding indoor and outdoor environments
- Requires only the amount of strip needed because it is supplied per metre, which can reduce installation waste
Domus lists the Pleo-Vivid range as backed by a 3-year warranty. Domus warranty terms generally provide 3-year replacement coverage for LED strips in residential applications and 12-month replacement coverage in commercial applications, subject to licensed-electrician installation and compliance with the installation guidelines. ([domuslighting.com.au](https://www.domuslighting.com.au/product/pleo-vivid-m-s/))
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors. ([domuslighting.com.au](https://www.domuslighting.com.au/product/pleo-vivid-m-s/))
