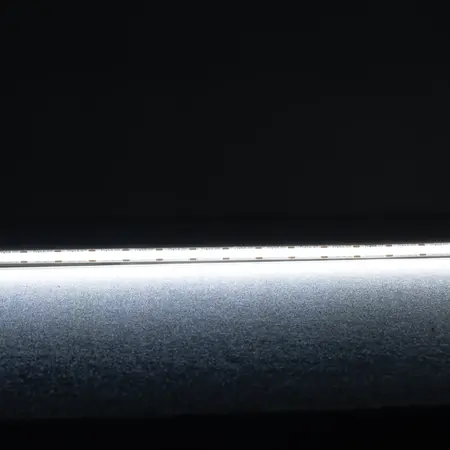

Plex-COB-10 LED Strip 24V IP54 CRI90 5000K 20m Roll Domus
Domus Plex-COB-10 LED Strip, 24V DC, IP54, CRI90, 640 LED/m, 5000K, 20m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: COB LED Strip Light, Dotless LED Strip, 24V LED Tape, High CRI LED Strip
- Model: PLEX-COB-10-20M
- Roll Length: 20 metres
- Input Voltage: 24V DC
- Power Consumption: 10W per metre
- Light Output: 1000 lumens per metre at 5000K
- Colour Temperature: 5000K
- Colour Rendering Index: CRI ≥90
- LED Type: COB, 640 LEDs per metre
- IP Rating: IP54; indoor use, suitable for indoor wet areas
- Beam Angle: 180°
- Dimming: Yes, with a compatible LED driver and dimmer
- Cutting Increment: 25mm
- Wiring: Parallel
- Maximum Continuous Run: 5m with one-end driver feed; 10m with driver feeds at both ends
- Operating Temperature: -20°C to 50°C
- Rated Life: 50,000 hours
- Required Driver: 24V DC constant-voltage LED driver
- Thermal Management: Must be installed on an aluminium heat sink
- Dimensions (H x L x W): 4.5mm x 20000mm x 12mm
- Weight: 1.4 kg
- COB technology provides a smooth, true dotless appearance
- High CRI90 output for accurate colour rendering
- 5000K white light suitable for task, feature and architectural lighting
- 24V DC operation helps reduce resistive heat and voltage drop over longer runs
- Dimmable with suitable driver and control equipment
- 25mm cut points support custom-length installations
- Weldless joint construction supports continuity and reliability
- Suitable for kitchens, bathrooms, laundries, bars, restaurants and indoor highlighting applications
- Installation should be performed by a licensed electrician in accordance with the manufacturer's instructions and applicable Australian wiring requirements. Use a correctly sized 24V DC constant-voltage LED driver, provide aluminium heat sinking along the strip, and do not exceed the manufacturer's maximum continuous-run lengths. Domus states that incorrect installation without an aluminium heat sink may void the warranty.
- Kitchen and bathroom task lighting
- Joinery, cabinetry and shelving illumination
- Architectural feature lighting
- Commercial interiors, bars and restaurants
- Cove, pelmet and indirect lighting
- Indoor wet-area highlighting where the IP54 rating is suitable
- AS/NZS 60598.1:2017 – general luminaire requirements and tests, applicable to the completed luminaire or lighting assembly; product-specific certification is not stated
- AS/NZS 3000:2018 – Electrical Installations (Wiring Rules), applicable to the electrical installation and connection of the associated driver
- LED technology provides efficient illumination at 10W per metre compared with many conventional linear-lighting alternatives
- 50,000-hour rated life can reduce replacement frequency and associated waste
- 24V DC operation and COB construction are designed to reduce resistive heat in suitable installations
- Long roll format and cut-to-length capability can reduce offcuts when correctly planned
- Aluminium heat sinks and LED strip components can be separated for recycling at end of life where local facilities accept them
Domus Lighting's January 2026 warranty statement provides COB LED strips with a 3-year replacement warranty for residential applications, or a 12-month replacement warranty for commercial applications. When used with Domus drivers, the warranty extends to a total of 5 years residential or 2 years commercial. Warranty eligibility requires licensed installation and compliance with the manufacturer's installation instructions.
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
