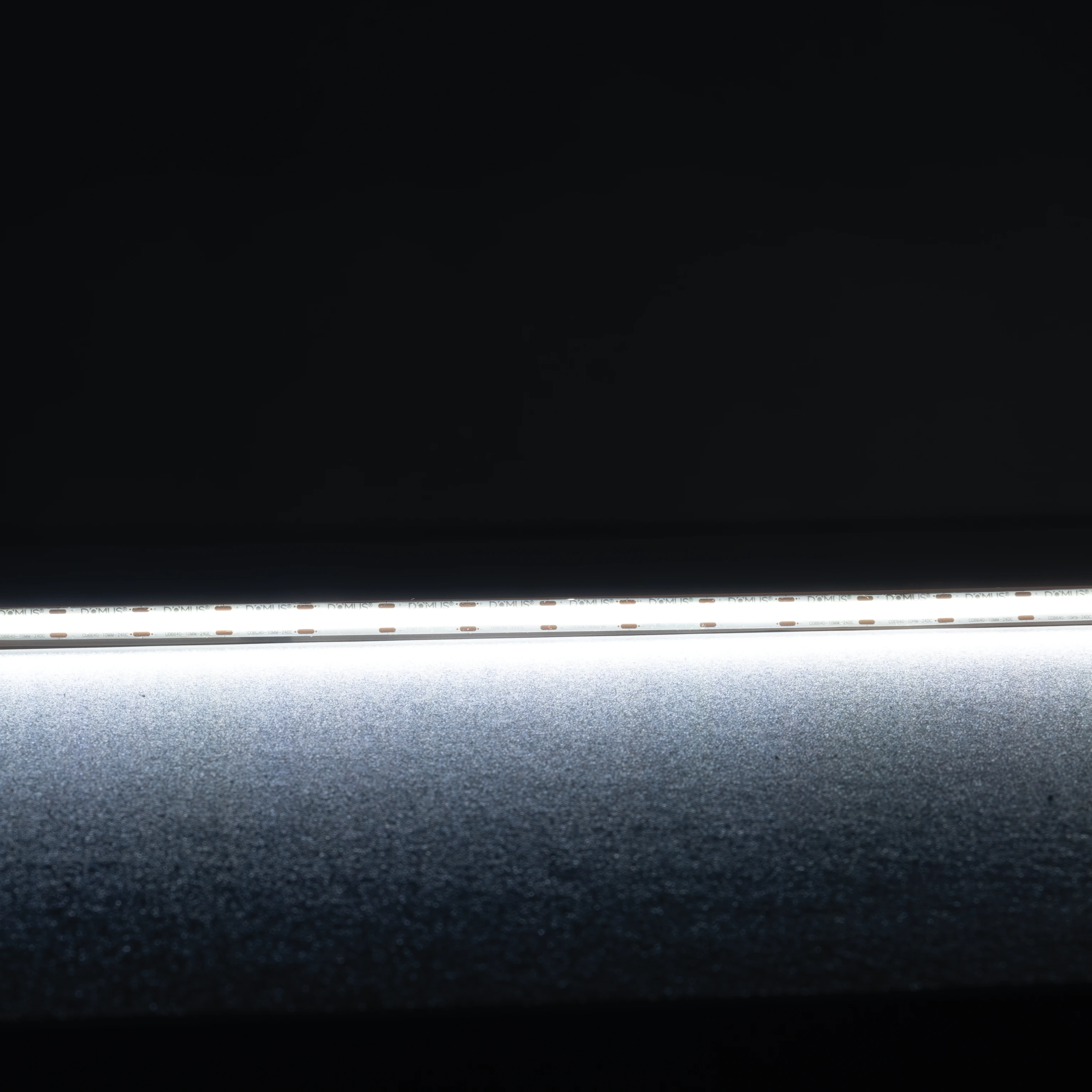

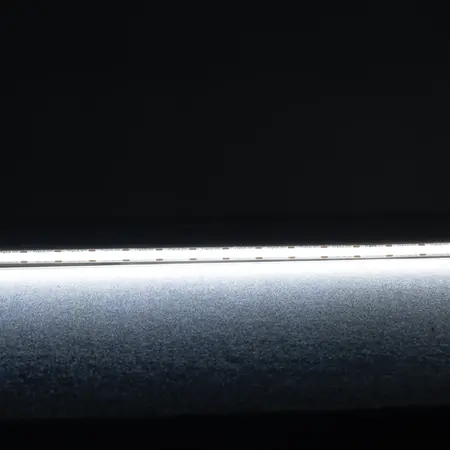

Plex-COB-10 LED Strip 24V IP54 CRI90 5000K Per Metre Domus
Domus Plex-COB-10 LED Strip, 24V DC, IP54, CRI90, 640 LED/m, 5000K, sold per metre. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: COB LED Strip, Dotless LED Strip, 24V LED Tape, PLEX-COB-10-IP54
- Input Voltage: 24V DC
- Power Consumption: 10W per metre
- Light Output: 1000 lumens per metre at 5000K
- Colour Temperature: 5000K
- Colour Rendering Index: CRI ≥90
- LED Type: COB, 640 LEDs per metre
- IP Rating: IP54, indoor use only and suitable for indoor wet areas
- Beam Angle: 180°
- Dimming: Yes, with a suitable LED driver and dimmer
- Lifespan: 50,000 hours
- Wiring: Parallel
- Cutting Increment: 25mm
- Maximum Continuous Run: 5m with single-end feed or 10m with feeds at both ends
- Operating Temperature: -20°C to 50°C
- Storage Temperature: -30°C to 80°C
- Required Driver: 24V DC constant-voltage LED driver
- Heat Management: Must be installed on an aluminium heat sink
- Variant ID: 24019
- Dimensions (H x L x W): 4.5mm x 1000mm x 10mm
- Weight: 0.1 kg
- COB technology provides a smooth, dotless linear appearance
- High colour rendering with CRI of at least 90
- 1000 lumens per metre at 5000K
- Dimmable when paired with compatible control equipment
- Can be cut in 25mm increments
- Parallel wiring supports continuous runs up to 5m with a single-end feed
- IP54 protection for indoor applications and suitable indoor wet areas
- Available per metre for custom-length installations
- Installation should be performed by a licensed electrician, particularly where the 24V DC driver connects to mains power. Install the strip on a suitable aluminium heat sink as specified by Domus; failure to do so may void the warranty. Follow AS/NZS 3000 requirements for the complete electrical installation.
- Kitchen under-cabinet lighting
- Bathroom and laundry feature lighting
- Bar and restaurant accent lighting
- Indoor joinery and shelving illumination
- Commercial architectural and highlighting applications
- Residential decorative and task lighting
- AS/NZS 3000:2018 Electrical Installations for the wiring and installation of the 24V DC lighting system
- AS/NZS 60598 series may apply to the completed lighting installation and associated luminaire assembly
- AS/NZS 61347.2.13 is relevant to compatible LED controlgear and drivers
- LED technology provides efficient illumination at approximately 100 lumens per watt
- 50,000-hour rated lifespan can reduce replacement frequency and material waste
- Low-voltage 24V DC operation supports efficient, controlled lighting system design
- Aluminium heat-sink components are recyclable through appropriate metal recycling streams
Domus Lighting warranty: residential COB LED strips receive a 3-year replacement warranty, extended to a total 5-year replacement warranty when used with Domus drivers. Commercial COB LED strips receive a 12-month replacement warranty, extended to a total 2-year replacement warranty when used with Domus drivers. Warranty conditions include installation on an aluminium heat sink and installation by a licensed electrician.
Available per metre through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
