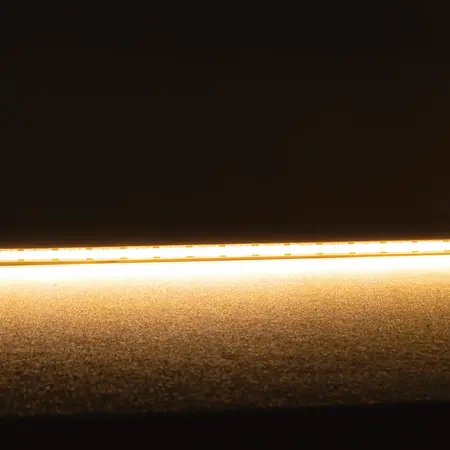

Plex-COB-15 LED Strip 24V IP54 CRI90 3000K 20m Roll Domus
Domus Plex-COB-15 LED Strip, 24V DC, IP54, CRI90, 640 LED/m, 3000K, 20m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Plex COB 15 LED Tape, COB LED Strip Light, Dotless LED Strip, 24V LED Tape Light
- Input Voltage: 24V DC
- Power Consumption: 15W per metre
- Luminous Output: 1350 lm per metre at 3000K
- Colour Temperature: 3000K warm white
- Colour Rendering Index: CRI ≥90
- LED Type: COB, 640 LEDs per metre
- Beam Angle: 180°
- Ingress Protection: IP54, indoor use including suitable wet areas
- Dimming: Yes, with compatible LED driver and dimmer
- Lifespan: 50,000 hours
- Wiring: Parallel
- Cutting Increment: 25mm
- Maximum Continuous Run: 5m with one-end feed; 10m with both-end feed
- Operating Temperature: -20°C to 50°C
- Heat Management: Must be installed on an aluminium heat sink
- Driver Requirement: 24V DC constant-voltage LED driver
- Dimensions (H x L x W): 4.5mm x 250mm x 250mm
- Weight: 1.2 kg
- True dotless COB appearance with smooth, uniform light output
- High CRI90 performance for improved colour rendering
- 24V DC operation reduces resistive heat and supports longer run lengths
- Dimmable with a suitable constant-voltage driver and dimmer
- Weldless joint design supports continuity and installation reliability
- 25mm cutting increments for flexible sizing
- Suitable for indoor kitchens, bathrooms, laundries, bars, restaurants and feature lighting
- 20m roll format for larger linear lighting installations
- Installation should be completed by a licensed electrician using a correctly sized 24V DC constant-voltage LED driver. Install the strip on an aluminium heat sink and follow the manufacturer's maximum run lengths and wiring requirements. The IP54 strip is for indoor use, including suitable wet areas, and is not intended for waterproof outdoor installation.
- Architectural feature lighting
- Kitchen and cabinet lighting
- Bathroom and laundry lighting
- Bar and restaurant lighting
- Display and joinery lighting
- Commercial interior linear lighting
- Indirect cove and accent lighting
- AS/NZS 3000:2018 is relevant to the electrical installation of the lighting system and associated wiring
- AS/NZS 60598.1:2017 provides general safety requirements relevant to luminaires incorporating LED light sources
- AS/NZS 61347.2.13 is relevant to the compatible electronic LED controlgear or driver rather than the LED strip itself
- LED technology can reduce energy consumption compared with conventional fluorescent and halogen linear lighting
- 50,000-hour rated life can reduce replacement frequency and associated waste
- 24V DC extra-low-voltage operation supports efficient low-voltage lighting system design
- Aluminium heat-sink installation helps manage operating temperature and may support longer product life
Domus Lighting warranty: 3-year replacement warranty for residential COB LED strips, or 12-month replacement warranty for commercial applications. COB LED strips receive a total 5-year replacement warranty in residential use, or total 2-year replacement warranty in commercial use, when used with Domus drivers. Warranty eligibility requires licensed-electrician installation, adherence to installation guidelines and installation on an aluminium heat sink.
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
