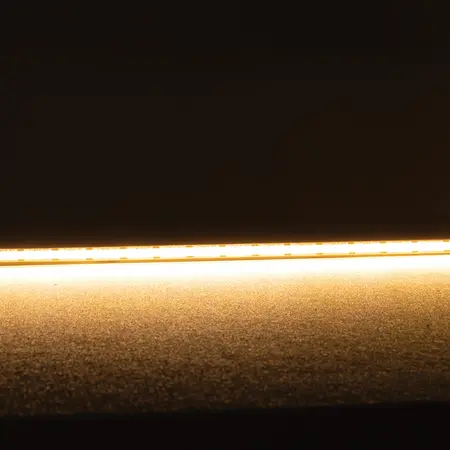

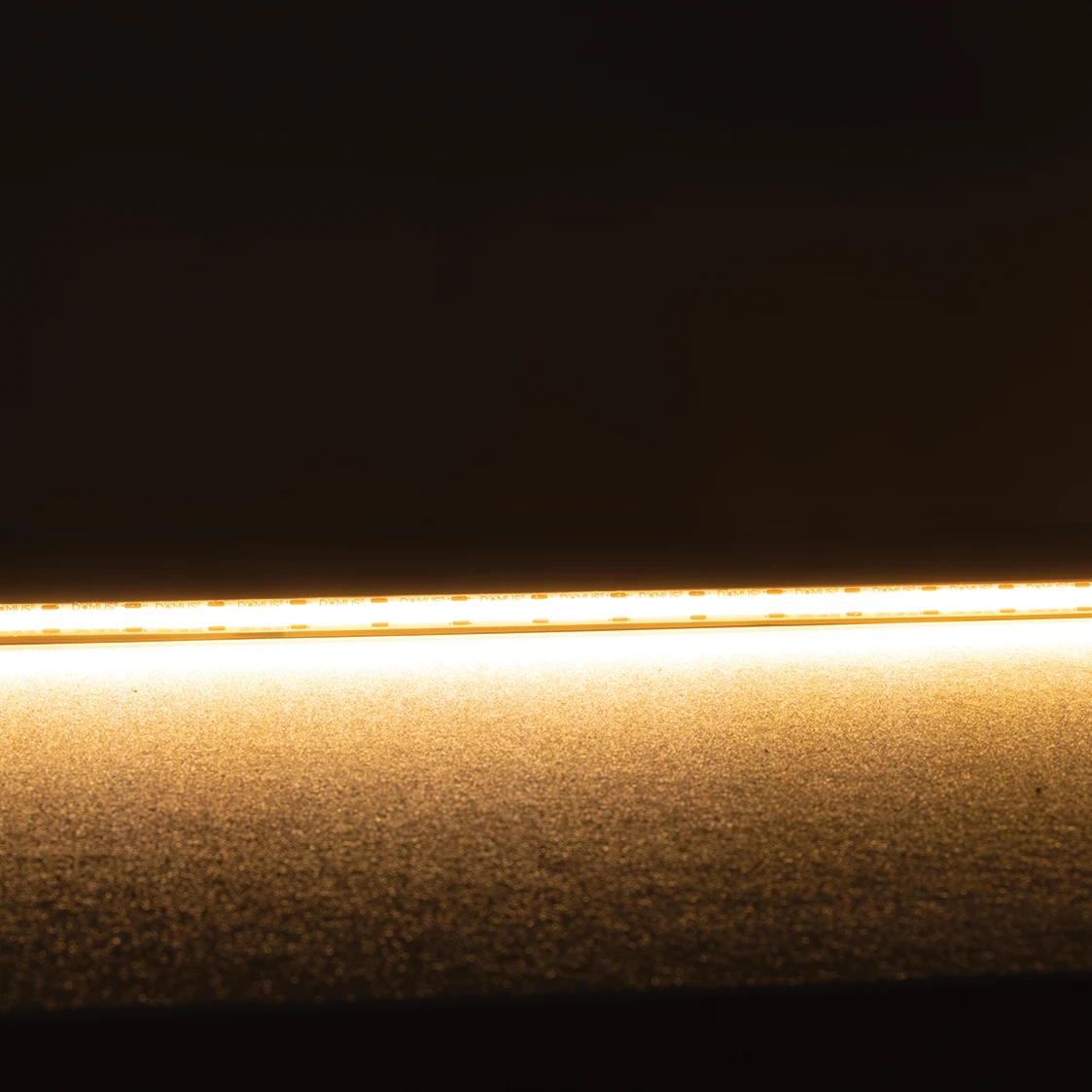

Plex-COB-15 LED Strip 24V IP54 CRI90 3000K Per Metre Domus
Domus Plex-COB-15 LED Strip, 24V DC, IP54, CRI90, 640 LED/m, 3000K, sold per metre. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: COB LED Tape, Dotless LED Strip, 24V LED Strip Light, Warm White LED Strip
- Input Voltage: 24V DC
- Power Consumption: 15W per metre
- Luminous Output: 1350 lm per metre at 3000K
- Colour Temperature: 3000K warm white
- Colour Rendering Index: CRI ≥90
- LED Type: COB, 640 LEDs per metre
- IP Rating: IP54 for indoor use and suitable indoor wet areas
- Beam Angle: 180°
- Dimming: Yes, with a compatible LED driver and dimmer
- Lifespan: 50,000 hours
- Wiring: Parallel
- Cutting Increment: 25mm
- Maximum Continuous Run: 5m with one-end driver feed or 10m with driver feeds at both ends
- Operating Temperature: -20°C to 50°C
- Required Driver: 24V DC constant-voltage LED driver
- Installation Base: Aluminium heat sink required
- Dimensions (H x L x W): 4.5mm x 1000mm x 12mm
- Weight: 0.1 kg
- COB technology provides a smooth, true dotless appearance
- High CRI90 output for accurate colour rendering
- 24V DC operation reduces resistive heat and supports longer runs
- IP54 construction suitable for indoor areas and indoor wet areas
- Dimmable with a suitable 24V LED driver and compatible dimmer
- 25mm cutting increments for custom-length installations
- Weldless joint design improves continuity and installation reliability
- Sold per metre for custom lighting layouts
- Compatible with Domus fast-fix, L-joint and flexible strip connectors
- Installation should be completed by a licensed electrician, particularly where the 24V driver is connected to mains power. Install the strip on an aluminium heat sink and use a compatible 24V DC constant-voltage driver. Follow applicable wiring and lighting requirements, including AS/NZS 3000 where relevant.
- Kitchen under-cabinet and task lighting
- Bathroom and laundry feature lighting
- Bar and restaurant architectural lighting
- Retail displays and shelving
- Residential and commercial feature lighting
- Indoor wet-area accent lighting
- Cove, joinery and linear architectural lighting
- AS/NZS 60598.1: General requirements and tests for luminaires, applicable to the assembled lighting system
- AS/NZS 60598.2.23: Extra-low-voltage lighting systems, applicable where the strip is assessed as part of an ELV lighting system
- AS/NZS 61347.2.13: Requirements for LED controlgear, applicable to the compatible 24V LED driver rather than the strip itself
- AS/NZS 3000: Electrical installations wiring requirements, applicable to the mains-connected installation and driver wiring
- 15W per metre LED technology provides efficient illumination compared with conventional light sources
- 50,000-hour rated lifespan can reduce replacement frequency and associated waste
- 24V DC operation supports efficient low-voltage lighting system design
- Aluminium heat-sink installation helps manage heat and extend service life
- LED lighting produces less waste heat than many traditional lighting technologies
Domus warranty: residential COB LED strips receive a 3-year replacement warranty, extended to a total of 5 years when used with Domus drivers. Commercial applications receive a 12-month replacement warranty, extended to a total of 2 years when used with Domus drivers. Warranty eligibility requires installation by a licensed electrician and compliance with installation instructions, including use of an aluminium heat sink.
Available through Domus Lighting and authorised Australian electrical and lighting distributors; supplied per metre, with 20m and 50m roll options also available.
