Plex-COB-20-IP67 LED Strip 24V IP67 CRI90 3000K 20m Roll Domus
Domus Plex-COB-20-IP67 LED Strip, 24V DC, IP67, CRI90, 640 LED/m, 3000K, 20m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: COB LED Strip, Dotless LED Strip, Waterproof LED Tape, 24V LED Strip Lighting
- Input Voltage: 24V DC
- Power Consumption: 20W per metre; 400W per 20m roll
- Lumen Output: 1520lm per metre at 3000K
- Colour Temperature: 3000K warm white
- Colour Rendering Index: ≥90
- LED Type: COB, 640 LEDs per metre
- Ingress Protection: IP67 with silicone coating
- Beam Angle: 180°
- Dimming: Yes, with a suitable compatible LED driver and dimmer
- Lifespan: 50,000 hours
- Wiring: Parallel
- Cutting Increment: 25mm
- Maximum Continuous Run: 3m with one-end driver feed or 6m with two-end driver feed
- Operating Temperature: -20°C to 50°C
- Storage Temperature: -30°C to 80°C
- Required Driver: 24V DC constant-voltage LED driver
- Heat Management: Must be installed on an aluminium heat sink to maintain warranty validity
- Construction: Weldless joint design for improved continuity and reliability
- Dimensions (H x L x W): 4.5mm x 20000mm x 12mm
- Weight: 1.2 kg
- True dotless COB appearance for smooth, uniform linear illumination
- High CRI90 output for improved colour rendering

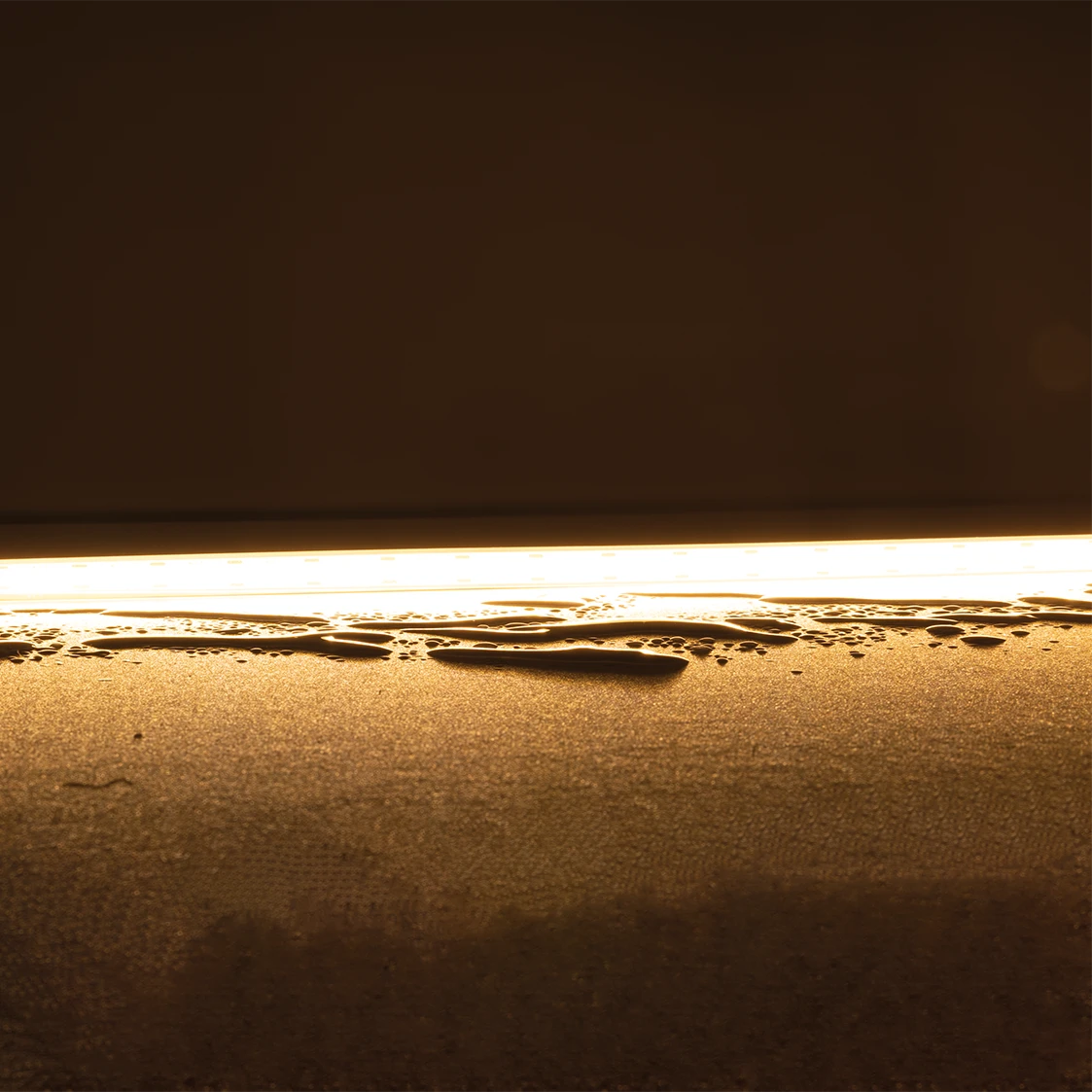

- IP67 waterproof construction for suitable wet-area and protected outdoor applications
- 24V DC operation reduces resistive heat compared with lower-voltage strip systems
- 3000K warm white colour temperature
- Dimmable with a suitable 24V constant-voltage driver and dimmer
- Supplied as a 20m roll
- 25mm cutting increments
- Suitable accessories include fast-fix and L-joint connectors
- Installation should be performed by a licensed electrician in accordance with applicable Australian wiring and lighting requirements. Use a correctly sized 24V DC constant-voltage LED driver, provide aluminium heat sinking along the strip length, and ensure IP67-rated connections are maintained in wet or outdoor applications. Domus states that installation on an aluminium heat sink is required for warranty validity. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2026/01/Warranty-Statement-Revised-09-01-2026.pdf))
- Architectural linear lighting
- Kitchen, bathroom and laundry feature lighting
- Bars, restaurants and hospitality interiors
- Cabinet, pelmet and joinery lighting
- Commercial interior highlighting
- Protected outdoor or wet-area lighting where the complete installation maintains IP67 protection
- Applicable lighting safety framework: AS/NZS 60598.1 for general luminaire requirements and tests
- Applicable extra-low-voltage lighting framework: AS/NZS 60598.2.23:2021
- Electrical installation should comply with AS/NZS 3000 Wiring Rules; compliance of the complete installed system depends on the LED strip, driver, controls, wiring and installation method. ([inus04aapb1h3nprod.dxcloud.episerver.net](https://inus04aapb1h3nprod.dxcloud.episerver.net/en-au/standards/as-nzs-60598-1-2017-99555_saig_as_as_209293/?utm_source=openai))
- LED technology provides efficient linear illumination compared with conventional light sources
- 50,000-hour rated lifespan can reduce replacement frequency and associated material waste
- 24V DC operation and parallel wiring support efficient low-voltage lighting system design
- Aluminium heat sinking helps manage operating temperature and can support product longevity
- Dimmable operation can reduce energy consumption when full light output is not required
Domus warranty for COB LED strips is 3 years replacement for residential applications, or 12 months replacement for commercial applications. When used with Domus drivers, the warranty extends to 5 years residential or 2 years commercial. Warranty eligibility requires licensed-electrician installation and compliance with installation guidelines, including aluminium heat sinking for this strip. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2026/01/Warranty-Statement-Revised-09-01-2026.pdf))
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors. ([domuslighting.com.au](https://www.domuslighting.com.au/product-category/plex-series/?utm_source=openai))
