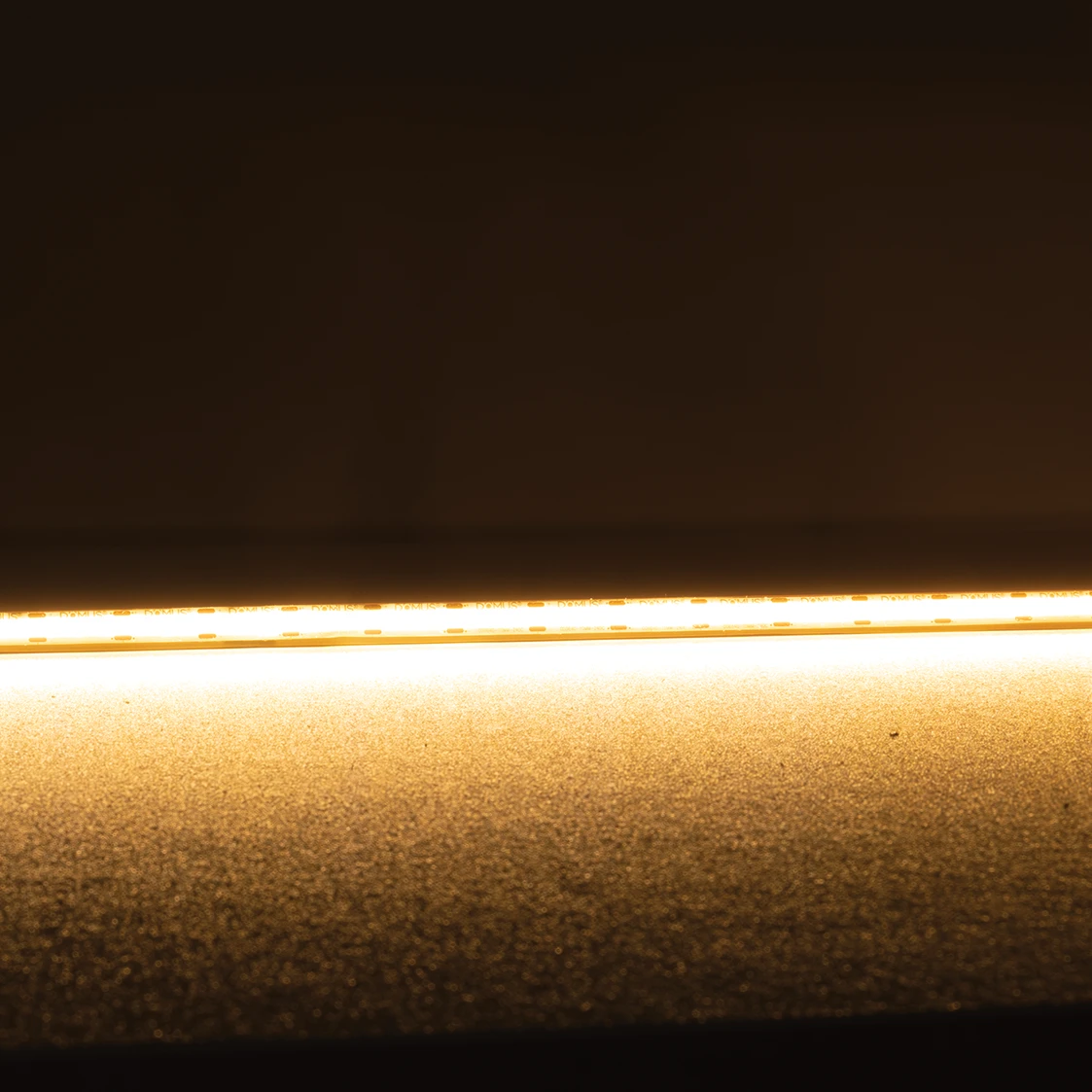

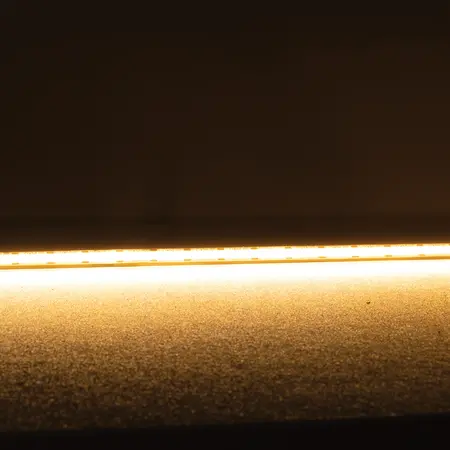

Plex-COB-20 LED Strip 24V IP54 CRI90 3000K 50m Roll Domus
Domus Plex-COB-20 LED Strip, 24V DC, IP54, CRI90, 640 LED/m, 3000K, 50m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Domus PLEX-COB-20-50M, COB LED Tape Light, Dotless LED Strip, 24V LED Strip Lighting
- Product Code: PLEX-COB-20-50M / Variant 24037
- Light Source: COB LED, 640 LEDs per metre
- Input Voltage: 24V DC
- Power Consumption: 20W per metre
- Total Roll Power: 1000W
- Lumen Output: 1800lm per metre at 3000K
- Colour Temperature: 3000K warm white
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP54
- Beam Angle: 180°
- Dimming: Yes, with suitable LED driver and dimmer
- Cutting Increment: 25mm
- Wiring: Parallel constant-voltage configuration
- Maximum Continuous Run: 5m with single-end driver feed or 10m with dual-end feed
- Operating Temperature: -20°C to 50°C
- Rated Life: 50,000 hours
- Required Accessories: 24V DC constant-voltage LED driver and aluminium heat sink
- Installation Environment: Indoor use, including suitable indoor wet areas
- Dimensions (H x L x W): 4.5mm x 50000mm x 12mm
- Weight: 5 kg
- COB construction provides a smooth, true dotless linear appearance
- High-density 640 LEDs per metre for uniform illumination
- 3000K warm white colour temperature with CRI90 colour rendering
- 24V DC operation helps reduce resistive voltage drop over conventional lower-voltage strip systems
- IP54 protection for indoor applications and suitable indoor wet areas
- Dimmable with compatible driver and dimming equipment
- 25mm cutting increments for flexible installation lengths
- Weldless joint design improves continuity and installation reliability
- Requires installation on an aluminium heat sink for thermal management and warranty validity
- Suitable for kitchens, bathrooms, laundries, bars, restaurants and architectural feature lighting
- Installation should be completed by a licensed electrician. Use a correctly sized 24V DC constant-voltage LED driver, suitable cabling, compatible dimming equipment and aluminium heat-sinking. The 50m roll has a total nominal load of 1000W and must be divided into appropriately sized separately fed runs; do not connect the full roll as one continuous run.
- Architectural cove and feature lighting
- Kitchen, bathroom and laundry lighting
- Bar, restaurant and hospitality fit-outs
- Display, cabinet and joinery lighting
- Commercial interior linear lighting
- Residential decorative and accent lighting
- AS/NZS 3000:2018 – applicable to electrical installation and wiring requirements
- AS/NZS 60598.1:2017 – general requirements for luminaires and complete lighting assemblies, where applicable
- AS/NZS 60598.2.23:2021 – applicable to extra-low-voltage lighting systems, where applicable
- AS/NZS 61347.2.13:2018 – applicable to the separate LED controlgear or driver
- LED technology provides lower energy consumption than many conventional lighting sources for equivalent illumination
- Rated service life of up to 50,000 hours can reduce replacement frequency and associated waste
- 24V DC constant-voltage operation supports efficient, controllable lighting system design
- COB construction and weldless joints may support longer product service life when correctly heat-sunk
Domus warranty: 3-year replacement warranty for COB LED strips in residential applications, extended to a total of 5 years when used with Domus drivers. Commercial applications receive a 12-month replacement warranty, extended to a total of 2 years when used with Domus drivers. Installation by a licensed electrician and installation on an aluminium heat sink are required for warranty coverage.
Available through Domus Lighting and authorised Australian lighting distributors, subject to distributor stock availability.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
