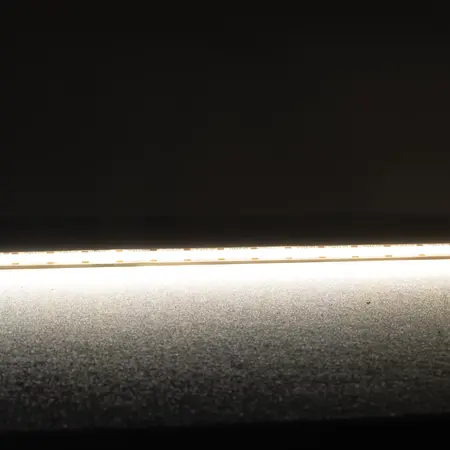

Plex-COB-20 LED Strip 24V IP54 CRI90 4000K 20m Roll Domus
Domus Plex-COB-20 LED Strip, 24V DC, IP54, CRI90, 640 LED/m, 4000K, 20m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Plex-COB-20, COB LED Tape, Dotless LED Strip, 24V LED Strip Light
- Product Type: COB true dotless LED strip
- Roll Length: 20 metres
- Power Consumption: 20W per metre
- Input Voltage: 24V DC
- Light Output: 2000 lm per metre at 4000K
- Colour Temperature: 4000K
- Colour Rendering Index: CRI ≥90
- LED Density: 640 LEDs per metre
- IP Rating: IP54
- Beam Angle: 180°
- Cutting Increment: 25mm
- Dimming: Compatible with suitable LED driver and dimmer
- Maximum Single-End Run: 3 metres with one tail and driver
- Maximum Double-End Run: 6 metres with tails and drivers at both ends
- Driver Requirement: 24V DC constant-voltage LED driver
- Construction: Weldless joint design
- Dimensions (H x L x W): 4.5mm x 20000mm x 12mm
- Weight: 2 kg
- COB technology provides a smooth, continuous dotless light appearance
- High CRI90 colour rendering for accurate colour reproduction
- 24V DC operation helps reduce resistive heat over longer runs
- IP54 protection suitable for indoor areas exposed to limited moisture
- Cuttable at marked 25mm intervals
- Dimmable with compatible control equipment
- Suitable for fast-fix, L-joint and flexible strip connectors
- Available in a 20 metre roll for extended linear lighting installations
- Installation should be performed by a licensed electrician, particularly where the 24V LED driver is connected to mains power. Use a compatible 24V DC constant-voltage driver, observe the maximum run lengths and install the strip in accordance with applicable wiring and manufacturer requirements.
- Kitchen under-cabinet and task lighting
- Bathroom and laundry feature lighting
- Bar and restaurant accent lighting
- Architectural cove and indirect lighting
- Retail display and showcase lighting
- Commercial interior highlighting
- Residential decorative and ambient lighting
- LED technology provides efficient illumination compared with many conventional lighting sources
- Long operating life can reduce replacement frequency and associated material waste
- 24V operation and approximately 100 lm/W output support efficient low-voltage lighting design
- Lower heat generation than many traditional light sources can reduce cooling demand in some applications
Domus Lighting warranty: 3-year replacement warranty for residential applications, or 12-month replacement warranty for commercial applications. COB LED strips receive a total 5-year residential replacement warranty, or total 2-year commercial replacement warranty, when used with Domus drivers. Warranty conditions include licensed electrician installation, correct installation procedures and use within the product's IP rating.
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
