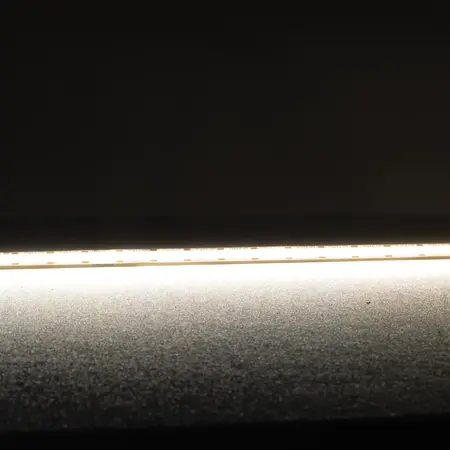

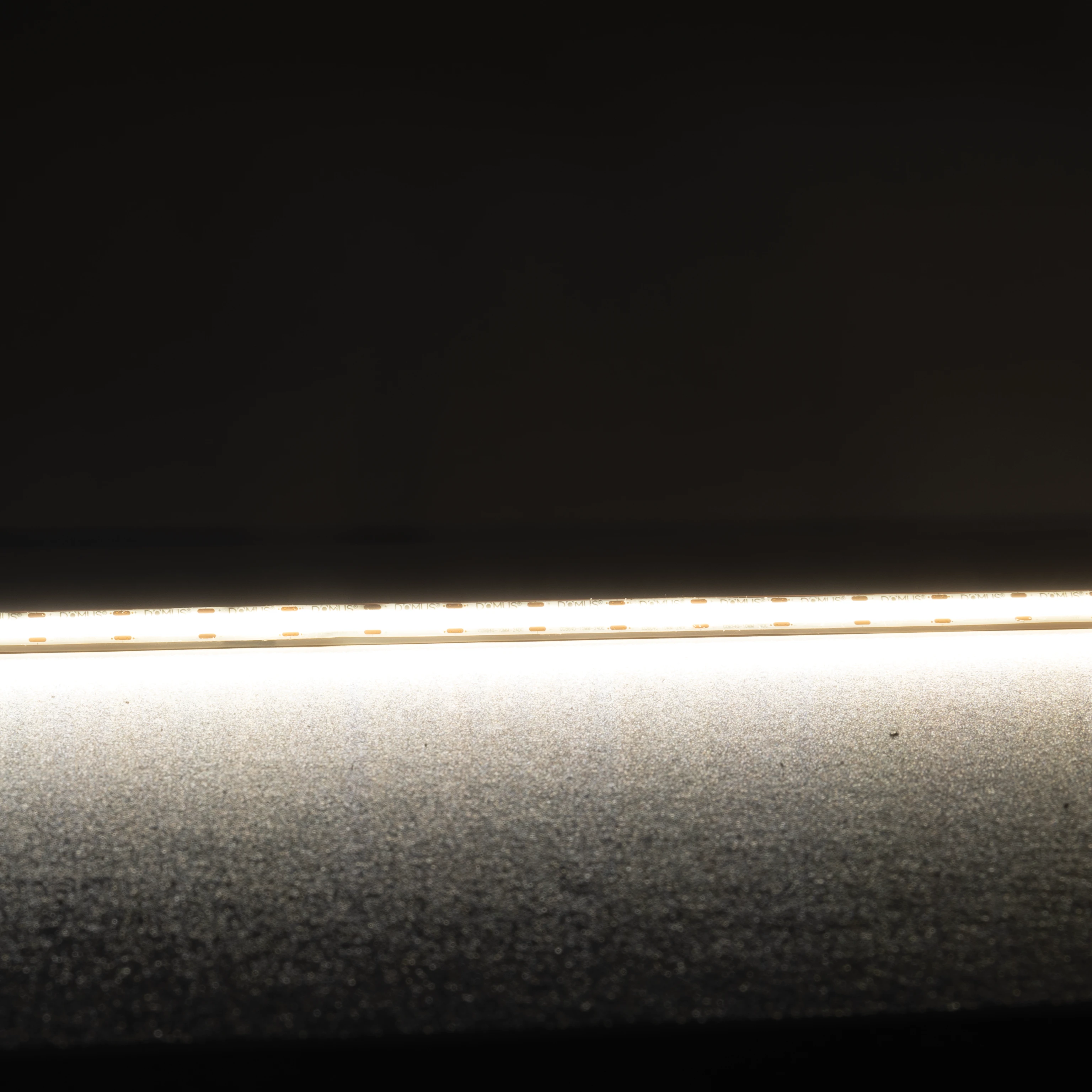

Plex-COB-20 LED Strip 24V IP54 CRI90 4000K 50m Roll Domus

BRAND: Domus Lighting
SKU: 24038
$1,415.30 List price: $1,887.10
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
Domus Plex-COB-20 LED Strip, 24V DC, IP54, CRI90, 640 LED/m, 4000K, 50m roll. Requires 24V DC LED driver.

Alternatively Known As: COB LED Strip, Dotless LED Strip, 24V LED Tape, Domus PLEX-COB-20-50M, SKU 24038

Technical Specifications
  • Input Voltage: 24V DC
  • Power: 20W per metre
  • Luminous Output: 2000lm per metre
  • Colour Temperature: 4000K neutral white
  • Colour Rendering Index: ≥90
  • LED Type: COB, 640 LEDs per metre
  • IP Rating: IP54
  • Beam Angle: 180°
  • Dimming: Yes, with suitable LED driver and dimmer
  • Wiring: Parallel
  • Cutting Increment: 25mm
  • Maximum Continuous Run: 3m with one-end driver feed; 6m with two-end driver feed
  • Lifespan: 50,000 hours
  • Operating Temperature: -20°C to 50°C
  • Required Driver: 24V DC constant-voltage LED driver
  • Installation Base: Aluminium heat sink required to maintain performance and warranty coverage
  • Dimensions (H x L x W): 4.5mm x 50000mm x 12mm
  • Weight: 3 kg
Key Features
  • True dotless COB LED appearance
  • High CRI90 light quality for improved colour rendering
  • 2000lm per metre output at 4000K
  • 24V DC operation for reduced resistive heat
  • IP54 protection for indoor use and suitable indoor wet areas
  • Dimmable with compatible driver and dimmer
  • Weldless joint design for improved continuity and reliability
  • Cuttable at 25mm intervals
  • 50m roll format for extended linear lighting installations
Professional Installation Requirements
  • Installation should be performed by a licensed electrician, particularly where the 24V LED driver connects to mains power. Use a compatible 24V DC constant-voltage driver, install the strip on an aluminium heat sink, and follow the manufacturer's installation instructions.
Applications
  • Residential feature lighting
  • Kitchen and joinery lighting
  • Bathroom and laundry lighting
  • Bar and restaurant lighting
  • Commercial architectural lighting
  • Display, cabinet and cove lighting
  • Indoor linear accent lighting
Standards & Compliance
  • AS/NZS 60598.2.23:2021 — applicable to extra-low-voltage lighting systems; product-specific conformity is not stated by the manufacturer. ([inus04aapb1h3nprod.dxcloud.episerver.net](https://inus04aapb1h3nprod.dxcloud.episerver.net/en-us/standards/as-nzs-60598-2-23-2021-115874_saig_as_as_3028800/))
  • AS/NZS 60598.1:2017 — general luminaire safety requirements where the strip forms part of a complete luminaire or lighting system; product-specific conformity is not stated by the manufacturer. ([inus04aapb1h3nprod.dxcloud.episerver.net](https://inus04aapb1h3nprod.dxcloud.episerver.net/en-au/standards/as-nzs-60598-1-2017-99555_saig_as_as_209293/))
  • AS/NZS 3000:2018 — applicable wiring and installation requirements for the associated electrical installation and driver connection. ([inus04aapb1h3nprod.dxcloud.episerver.net](https://inus04aapb1h3nprod.dxcloud.episerver.net/en-au/standards/as-nzs-60598-1-2017-99555_saig_as_as_209293/?utm_source=openai))
Environmental Benefits
  • LED technology can reduce energy consumption compared with many traditional linear lighting sources
  • 50,000-hour rated lifespan can reduce replacement frequency and associated waste
  • 24V DC operation and efficient COB design support lower heat generation during operation
  • Aluminium heat-sink installation supports thermal management and extended product service life
Warranty Information

Domus warranty: 3-year replacement warranty for residential COB LED strips, extended to a total 5-year replacement warranty when used with Domus drivers. Commercial applications receive a 12-month replacement warranty, extended to a total 2-year replacement warranty when used with Domus drivers. Warranty eligibility requires installation by a licensed electrician and compliance with installation instructions. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2026/01/Warranty-Statement-Revised-09-01-2026.pdf))

Available Now

Available through Domus Lighting and authorised Australian distributors.
