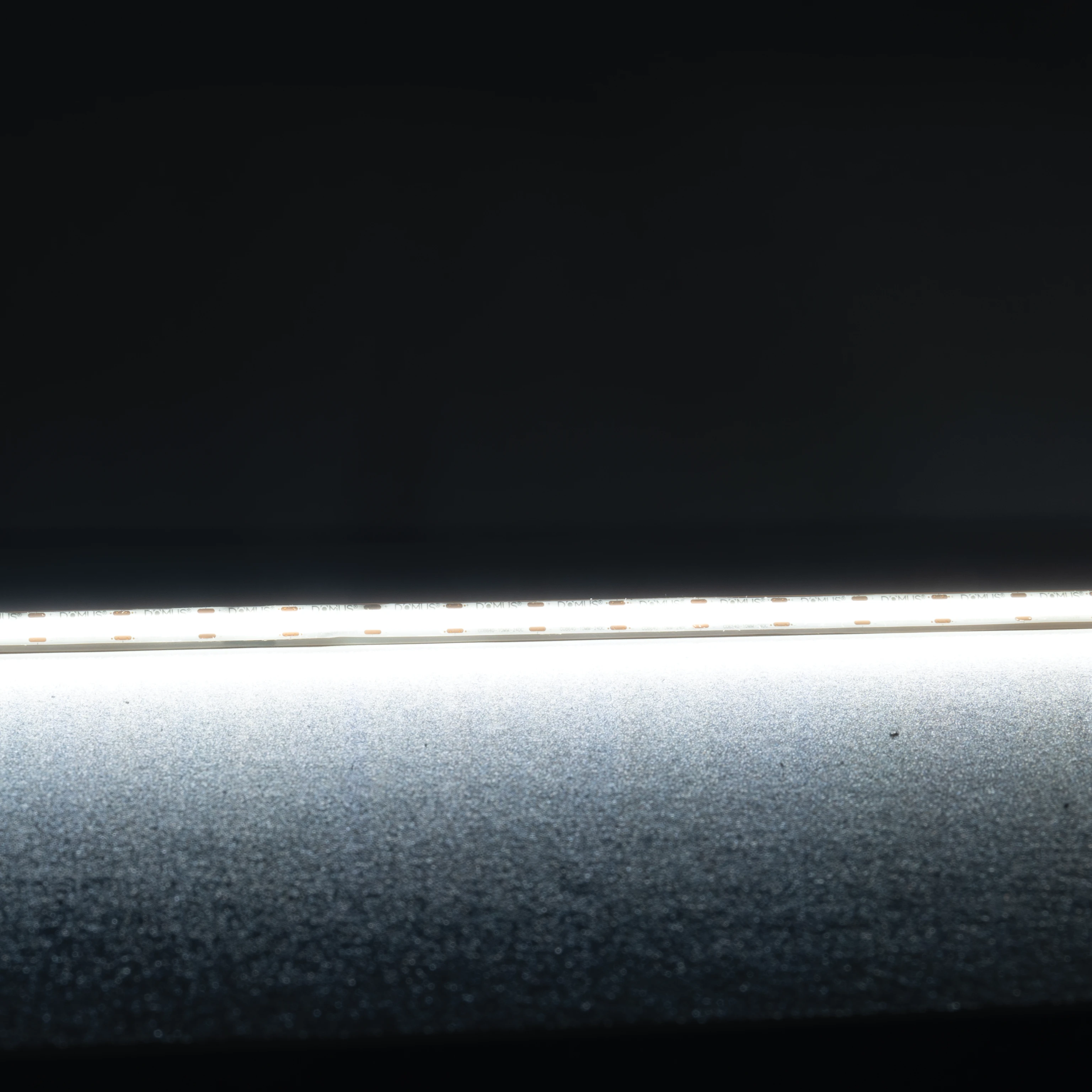

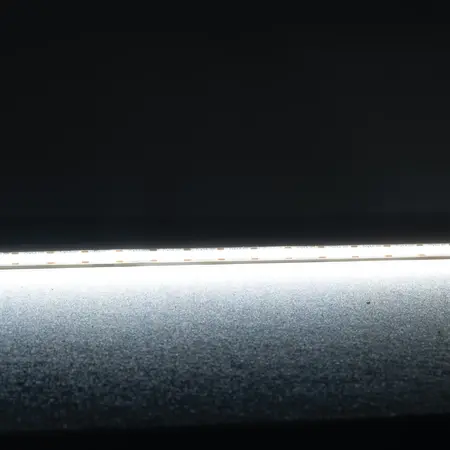

Plex-COB-20 LED Strip 24V IP54 CRI90 5000K 20m Roll Domus
Domus Plex-COB-20 LED Strip, 24V DC, IP54, CRI90, 640 LED/m, 5000K, 20m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Plex COB LED Tape, COB LED Strip Light, 24V LED Strip, Dotless LED Strip
- Input Voltage: 24V DC
- Power Consumption: 20W per metre
- Roll Length: 20m
- IP Rating: IP54
- LED Type: COB
- LED Density: 640 LEDs per metre
- Colour Temperature: 5000K
- Colour Rendering Index: CRI ≥90
- Lumen Output: Approximately 2000 lm per metre at 5000K
- Beam Angle: 180°
- Cutting Increment: 25mm
- Dimming: Yes, with suitable LED driver and dimmer
- Wiring: Parallel
- Maximum Continuous Run: 3m with single-end feed or 6m with feed from both ends
- Required Driver: 24V DC constant-voltage LED driver
- Operating Temperature: -20°C to 50°C
- Storage Temperature: -30°C to 80°C
- Recommended Heat Management: Install on an aluminium heat sink
- Indoor Use: Suitable for indoor wet areas; not intended for outdoor exposure
- Dimensions (H x L x W): 4.5mm x 20000mm x 12mm
- Weight: 2.5 kg
- COB technology provides a continuous dotless appearance
- High colour rendering with CRI ≥90
- Neutral daylight 5000K output
- IP54 protection for indoor wet-area applications
- 24V DC operation helps reduce resistive losses over suitable low-voltage runs
- 25mm cut points for installation flexibility
- Dimmable with compatible driver and dimmer
- Long service life rated at up to 50,000 hours
- Available in a 20m roll format
- Requires aluminium heat sinking for correct operation and warranty compliance
- Installation should be completed by a licensed electrician where the 24V driver is connected to mains power. Use a compatible 24V DC constant-voltage driver, install the strip on an aluminium heat sink, observe the 3m single-feed or 6m dual-feed maximum run lengths, and follow applicable electrical installation requirements.
- Kitchen under-cabinet and bench lighting
- Bathroom and laundry highlighting
- Bar and restaurant feature lighting
- Commercial interior highlighting
- Joinery, shelving and display lighting
- Cove, pelmet and architectural accent lighting
- AS/NZS 60598.1:2025, applicable to the completed luminaire assembly where the LED strip is integrated into a lighting fitting
- AS/NZS 3000:2018, applicable to the associated electrical installation and mains-connected LED driver
- LED technology provides lower energy consumption than many conventional lighting sources for comparable illumination
- 50,000-hour rated life can reduce replacement frequency and associated waste
- 24V DC operation can reduce resistive losses when correctly designed and wired
- Aluminium heat-sink installation supports thermal management and may extend service life
Domus COB LED strips carry a 3-year replacement warranty for residential applications, extendable to a total of 5 years when used with Domus drivers. Commercial applications receive a 12-month replacement warranty, extendable to a total of 2 years when used with Domus drivers. Warranty eligibility requires licensed-electrician installation and compliance with installation guidelines.
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
