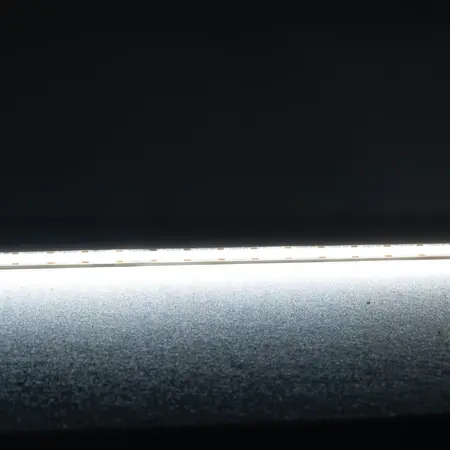

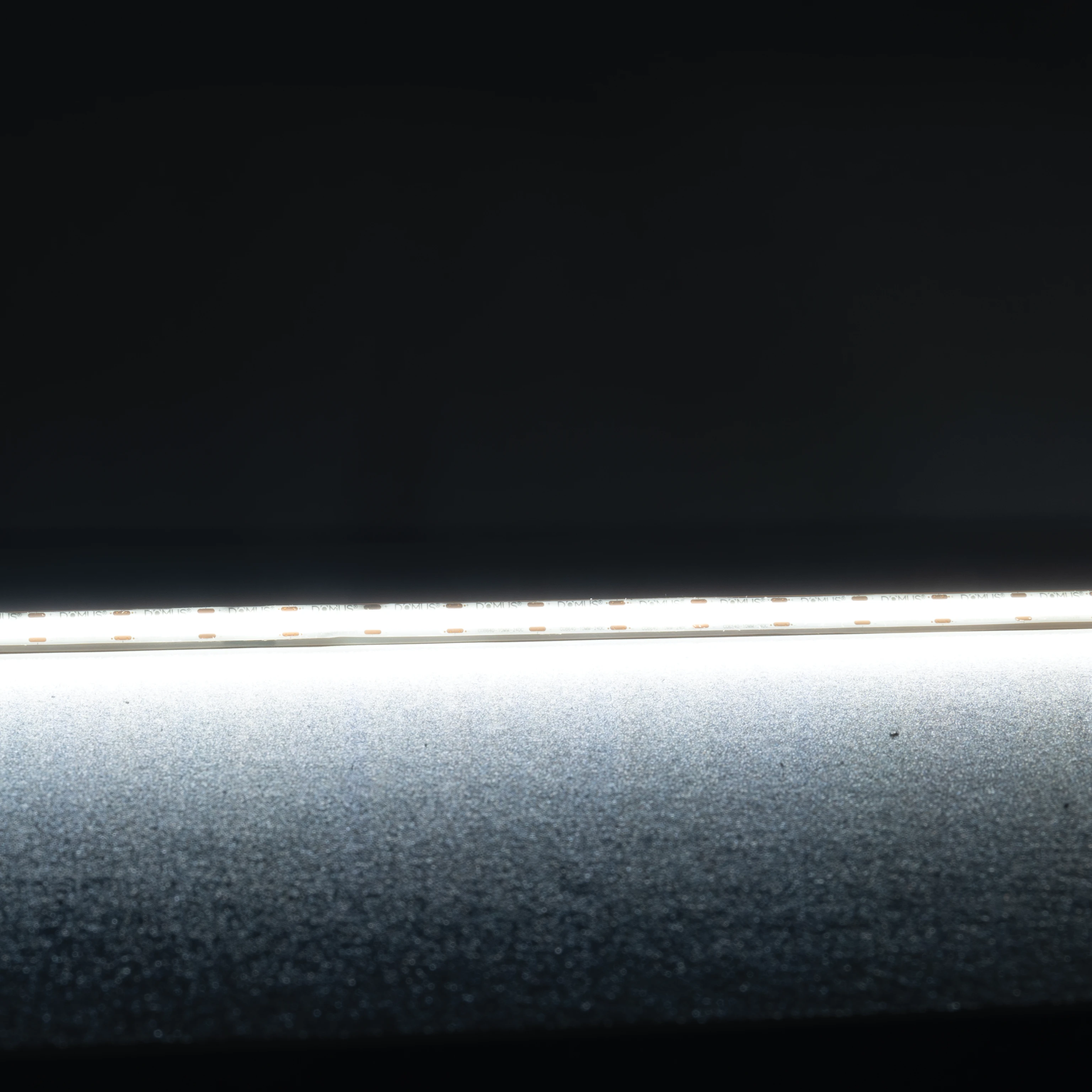

Plex-COB-20 LED Strip 24V IP54 CRI90 5000K Per Metre Domus
Domus Plex-COB-20 LED Strip, 24V DC, IP54, CRI90, 640 LED/m, 5000K, sold per metre. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: COB LED Strip Light, Dotless LED Strip, 24V LED Tape, Flexible LED Strip
- Input Voltage: 24V DC
- Power Consumption: 20W per metre
- Colour Temperature: 5000K
- Colour Rendering Index: CRI ≥90
- Light Output: 2000 lm per metre
- LED Type: COB, 640 LEDs per metre
- Beam Angle: 180°
- IP Rating: IP54; indoor use only and suitable for indoor wet areas
- Dimmable: Yes, with a suitable LED driver and dimmer
- Lifespan: 50,000 hours
- Wiring: Parallel
- Cutting Increment: 25mm
- Continuous Run: Maximum 3m with single-end feed; maximum 6m with feeds at both ends
- Operating Temperature: -20°C to 50°C
- Storage Temperature: -30°C to 80°C
- Required Driver: 24V DC constant-voltage LED driver
- Heat Dissipation: Must be installed on an aluminium heat sink
- Dimensions (H x L x W): 4.5mm x 1000mm x 12mm
- Weight: 0.1 kg
- True dotless COB appearance
- High colour rendering with CRI ≥90
- 5000K white light suitable for task and display lighting
- 24V DC operation supports reduced resistive losses and longer run lengths
- Dimmable with compatible control gear
- Cuttable at 25mm intervals
- Available per metre for custom-length installations
- Suitable for kitchens, bathrooms, laundries, bars, restaurants and indoor highlighting
- Connector accessories available for solder-free joins and extensions
- Installation should be performed by a licensed electrician. Use a compatible 24V DC constant-voltage LED driver and install the strip on an aluminium heat sink. Follow the manufacturer's maximum run lengths and IP54 indoor-use limitations.
- Kitchen under-cabinet and task lighting
- Bathroom and laundry accent lighting
- Bar and restaurant feature lighting
- Retail display and joinery illumination
- Architectural highlighting and cove lighting
- Indoor wet-area lighting where the IP54 rating is suitable
- AS/NZS 60598.1 is relevant to the safety assessment of the completed lighting installation or luminaire assembly.
- AS/NZS 61347.2.13 is relevant to compatible electronic controlgear for LED modules.
- Domus product-specific Australian standard certification was not stated in the available product documentation.
- LED technology provides efficient lighting with approximately 90-100 lumens per watt.
- The stated 50,000-hour lifespan can reduce replacement frequency and material waste.
- 24V DC operation and suitable dimming controls can help reduce energy consumption in use.
- The strip is supplied in cuttable sections, which can reduce installation offcuts when accurately measured.
Domus' current warranty statement lists COB LED strips with a 3-year replacement warranty for residential applications, extending to 5 years total when used with Domus drivers. Commercial applications receive a 12-month replacement warranty, extending to 2 years total when used with Domus drivers. Installation on an aluminium heat sink and compliance with installation requirements are conditions of warranty eligibility.
Available per metre through Domus Lighting and authorised Australian electrical and lighting distributors.
