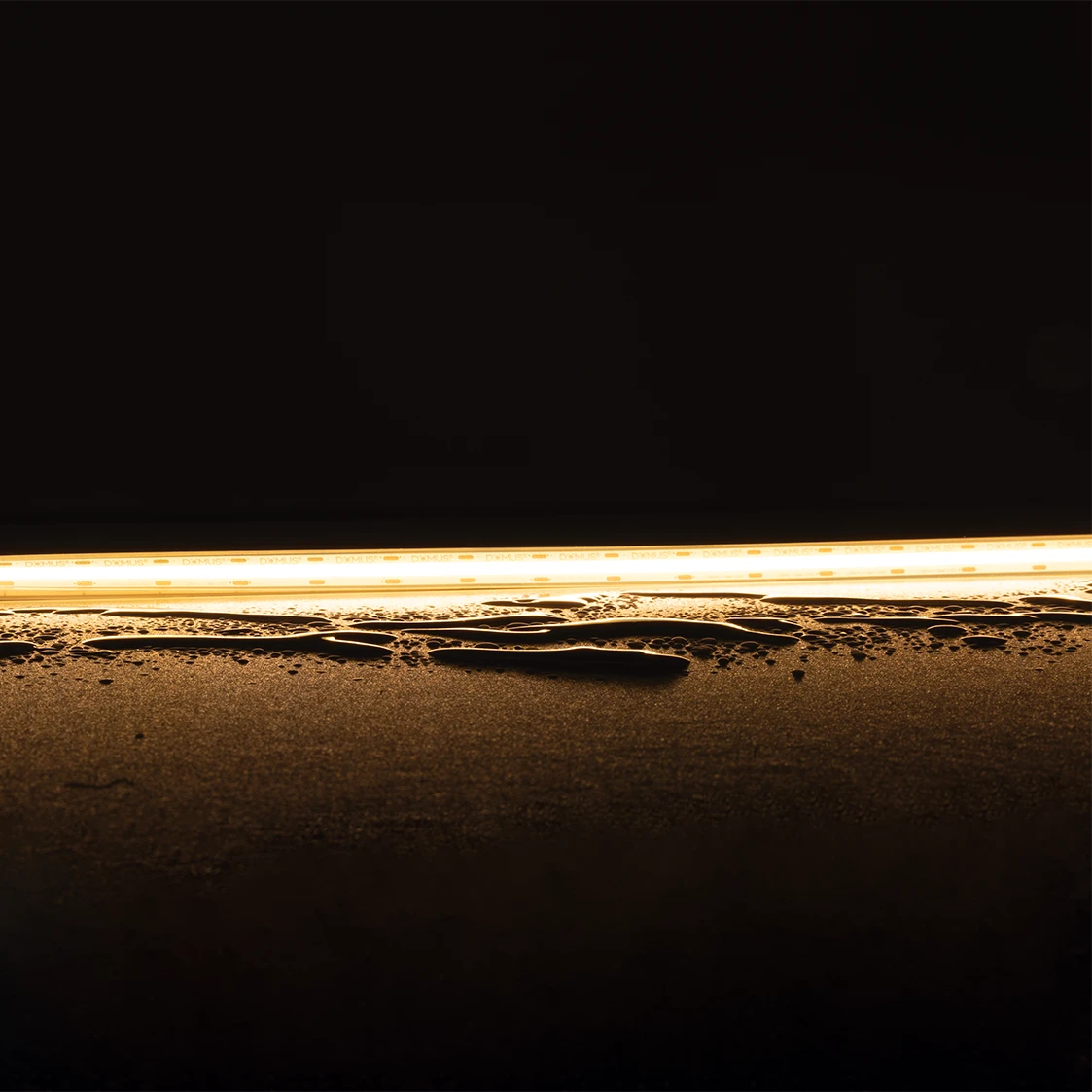

Plex-COB-5-IP67 LED Strip 24V IP67 CRI90 3000K 20m Roll Domus
Domus Plex-COB-5-IP67 LED Strip, 24V DC, IP67, CRI90, 640 LED/m, 3000K, 20m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: PLEX COB LED Strip, COB Dotless LED Tape, Waterproof LED Strip Light, 24V LED Strip
- Input Voltage: 24V DC
- Power Consumption: 5W per metre
- Roll Length: 20 metres
- Colour Temperature: 3000K warm white
- Luminous Output: 390 lm per metre
- Colour Rendering Index: CRI ≥90
- LED Type: COB, 640 LEDs per metre
- Ingress Protection: IP67
- Beam Angle: 180°
- Dimming: Yes, with compatible LED driver and dimmer
- Cutting Increment: 25mm
- Maximum Continuous Run: 5m with single-end feed; 10m with feeds at both ends
- Wiring: Parallel
- Rated Life: 50,000 hours
- Operating Temperature: -20°C to +50°C
- Storage Temperature: -30°C to +80°C
- Required Driver: 24V DC constant-voltage LED driver
- Installation Requirement: Install on an aluminium heat sink; failure to do so may void the warranty
- Dimensions (H x L x W): 4.5mm x 20000mm x 12mm
- Weight: 1 kg
- COB technology provides a smooth, dotless linear appearance
- IP67 silicon-coated construction for waterproof applications
- High CRI90 output for improved colour accuracy
- 24V DC operation helps reduce voltage drop and heat over longer runs
- Weldless joint design supports continuity and reliability
- Dimmable with suitable driver and dimming equipment
- Can be cut at 25mm intervals
- Compatible with Domus LED drivers and strip-lighting accessories
- Installation should be completed by a licensed electrician, particularly where the 240V AC input to the LED driver is connected. Use a compatible 24V DC constant-voltage driver, install the strip on an aluminium heat sink, and follow AS/NZS 3000 and the manufacturer's installation instructions.
- Architectural feature lighting
- Kitchen, bathroom and laundry highlighting
- Bar, restaurant and hospitality fit-outs
- Display, joinery and cabinet lighting
- Commercial and residential linear lighting
- Indoor or protected outdoor applications requiring IP67 protection
- AS/NZS 3000: Wiring Rules — relevant to installation of the 24V DC LED lighting system and associated driver
- AS/NZS 60598.1: Luminaires — relevant to the completed luminaire or lighting assembly; product-level compliance is not separately stated by the manufacturer
- Low 5W-per-metre power consumption supports energy-efficient accent and feature lighting
- LED technology and a stated 50,000-hour life can reduce replacement frequency and associated waste
- 24V DC operation can reduce resistive losses and heat compared with equivalent longer low-voltage runs
- Longer service life helps reduce material consumption over the product lifecycle
Domus Lighting warranty: COB LED strips have a 3-year replacement warranty for residential applications and a 12-month replacement warranty for commercial applications. When used with Domus drivers, total replacement warranty coverage is 5 years residential or 2 years commercial, subject to licensed installation and the manufacturer's conditions.
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
