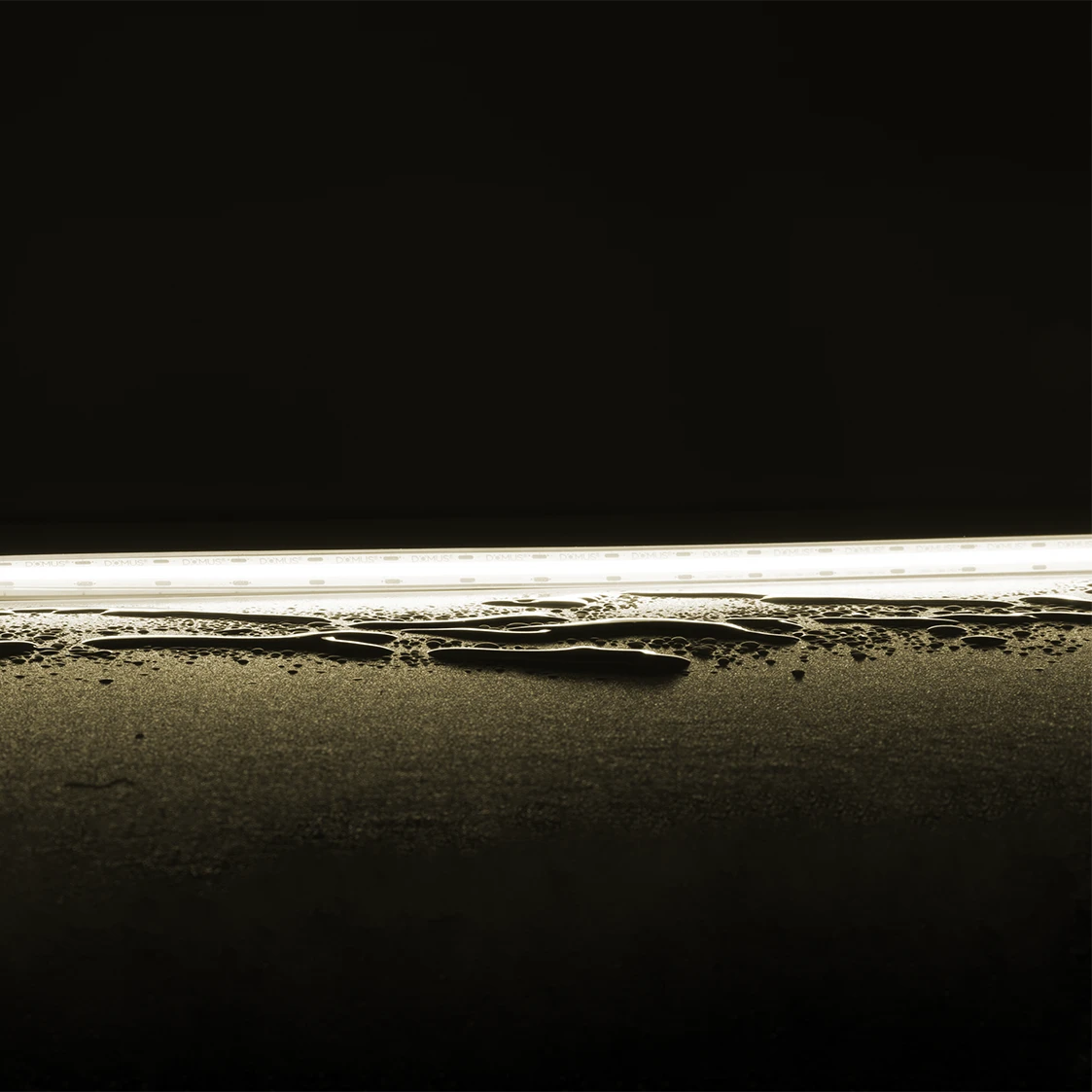

Plex-COB-5-IP67 LED Strip 24V IP67 CRI90 4000K 20m Roll Domus
Domus Plex-COB-5-IP67 LED Strip, 24V DC, IP67, CRI90, 640 LED/m, 4000K, 20m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: COB LED Strip, Dotless LED Strip, Waterproof LED Strip, 24V LED Tape Light
- LED Type: COB, 640 LEDs per metre
- Power: 5W per metre
- Input Voltage: 24V DC
- Colour Temperature: 4000K
- Light Output: 425lm per metre
- Colour Rendering Index: CRI ≥90
- Beam Angle: 180°
- Ingress Protection: IP67
- Dimming: Yes, with a suitable LED driver and dimmer
- Cutting Increment: 25mm
- Maximum Run: 5m with single-end feed; 10m with feeds at both ends
- Wiring: Parallel
- Rated Life: 50,000 hours
- Operating Temperature: -20°C to 50°C
- Driver Requirement: 24V DC constant-voltage LED driver required
- Heat Management: Must be installed on an aluminium heat sink or LED profile
- Dimensions (H x L x W): 4.5mm x 20000mm x 12mm
- Weight: 2 kg
- True dotless COB illumination
- High-density 640 LEDs per metre
- 4000K neutral white light suitable for architectural and feature lighting
- High colour rendering with CRI ≥90
- IP67-rated silicone-protected strip for water- and dust-resistant applications
- Dimmable with compatible 24V LED driver and dimmer
- Weldless joint design for improved continuity and reliability
- 25mm cut points for installation flexibility
- Suitable for kitchens, bathrooms, laundries, bars, restaurants and feature lighting
- Installation should be performed by a licensed electrician. Use a correctly sized 24V DC constant-voltage LED driver, install the strip on an aluminium heat sink or profile, and follow applicable AS/NZS 3000 wiring requirements. IP67 sealing must be maintained at all cut and connection points.
- Architectural linear lighting
- Kitchen and cabinet lighting
- Bathroom and laundry lighting
- Bar and restaurant feature lighting
- Cove and joinery lighting
- Commercial and residential accent lighting
- Indoor wet-area lighting where suitable sealed connections are used
- AS/NZS 3000:2018 – applicable to the electrical installation and wiring of the associated 24V DC lighting system
- LED technology provides lower power consumption than conventional halogen and fluorescent lighting
- Long rated life of 50,000 hours can reduce replacement frequency and material waste
- 24V DC operation supports efficient low-voltage lighting system design
- Aluminium heat-sink installation can improve thermal management and extend product service life
Domus COB LED strips have a 3-year replacement warranty for residential applications and a 12-month replacement warranty for commercial applications. When used with Domus drivers, coverage extends to a total of 5 years residential or 2 years commercial. Warranty eligibility requires installation by a licensed electrician and installation on an aluminium heat sink in accordance with Domus guidelines.
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
