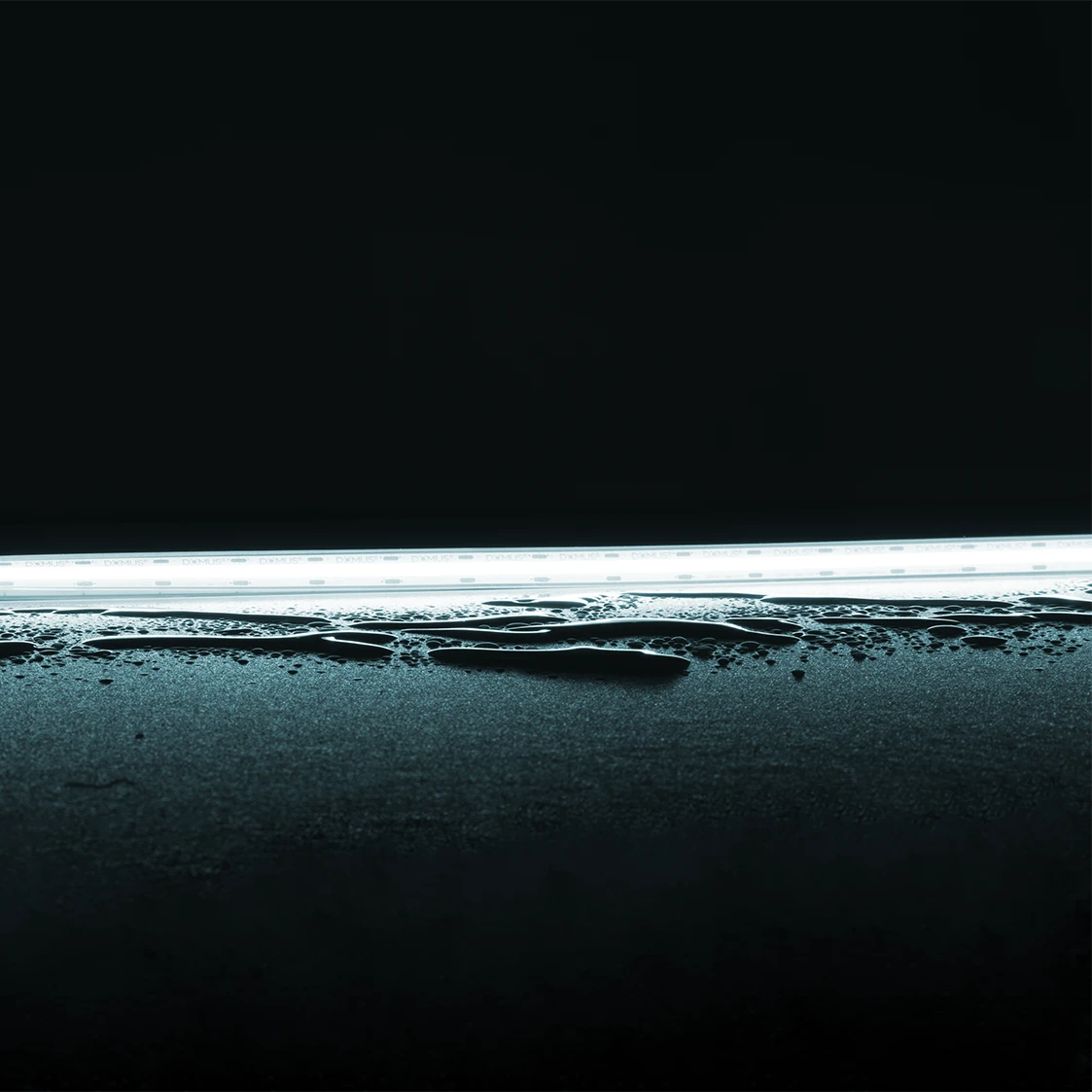

Plex-COB-5-IP67 LED Strip 24V IP67 CRI90 5000K Per Metre Domus
Domus Plex-COB-5-IP67 LED Strip, 24V DC, IP67, CRI90, 640 LED/m, 5000K, sold per metre. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: 24V COB LED Strip, Dotless LED Strip, IP67 LED Tape Light, Waterproof LED Strip
- Light Source: COB LED
- LED Density: 640 LEDs per metre
- Colour Temperature: 5000K
- Input Voltage: 24V DC
- Power Consumption: 5W per metre
- Lumen Output: 425 lm per metre
- Colour Rendering Index: CRI ≥90
- Beam Angle: 180°
- IP Rating: IP67
- Dimming: Yes, with a compatible LED driver and dimmer
- Wiring: Parallel
- Cutting Increment: 25mm
- Maximum Continuous Run: 5m with single-end feed; 10m with feed at both ends
- Service Life: 50,000 hours
- Operating Temperature: -20°C to +50°C
- Storage Temperature: -30°C to +80°C
- Driver Requirement: 24V DC constant-voltage LED driver
- Sales Format: Sold per metre for custom cuts
- Dimensions (H x L x W): 4.5mm x 1000mm x 12mm
- Weight: 0.1 kg
- COB technology provides a smooth, true dotless appearance
- IP67 silicone-coated construction for waterproof installations
- High CRI90 output for improved colour rendering
- Low 5W per metre power consumption
- Dimmable with suitable control equipment
- 25mm cutting increments for custom-length installations
- Weldless joint design supports continuity and reliability
- Suitable for use with Domus fast-fix, L-joint and strip connectors
- Requires installation on an aluminium heat sink or profile
- A compatible 24V DC constant-voltage driver is required. Connection of the driver to mains power should be performed by a licensed electrician in accordance with AS/NZS 3000. Install the LED strip on an aluminium heat sink or profile, seal all IP67 terminations correctly, and use suitable dimming equipment where required.
- Kitchen feature lighting
- Bathroom and laundry lighting
- Bar and restaurant highlighting
- Architectural and joinery lighting
- Commercial feature lighting
- Outdoor or wet-area linear lighting where IP67 installation requirements are met
- AS/NZS 3000:2018 – applicable to the electrical installation and connection of the associated LED driver; Domus does not state a product-specific Australian Standards certification for the bare LED strip.
- 5W per metre power consumption supports lower energy use than higher-wattage strip lighting options
- COB LED technology and a stated 50,000-hour service life can reduce replacement frequency and associated waste
- 24V DC operation allows use with efficient constant-voltage LED drivers
- Long-life LED lighting reduces the material and packaging waste associated with frequent lamp replacement
Residential: 3-year replacement warranty. Commercial: 12-month replacement warranty. Warranty extends to 5 years residential or 2 years commercial when used with Domus drivers, subject to Domus warranty conditions, correct installation and licensed electrical work.
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
