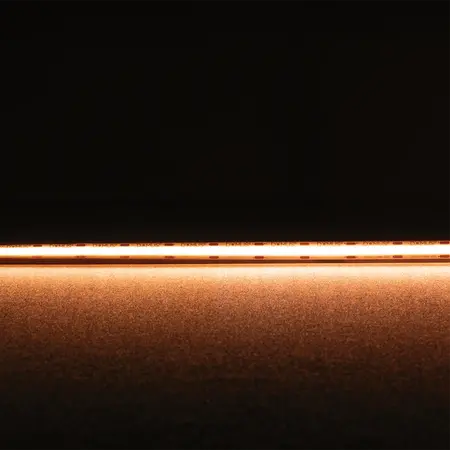

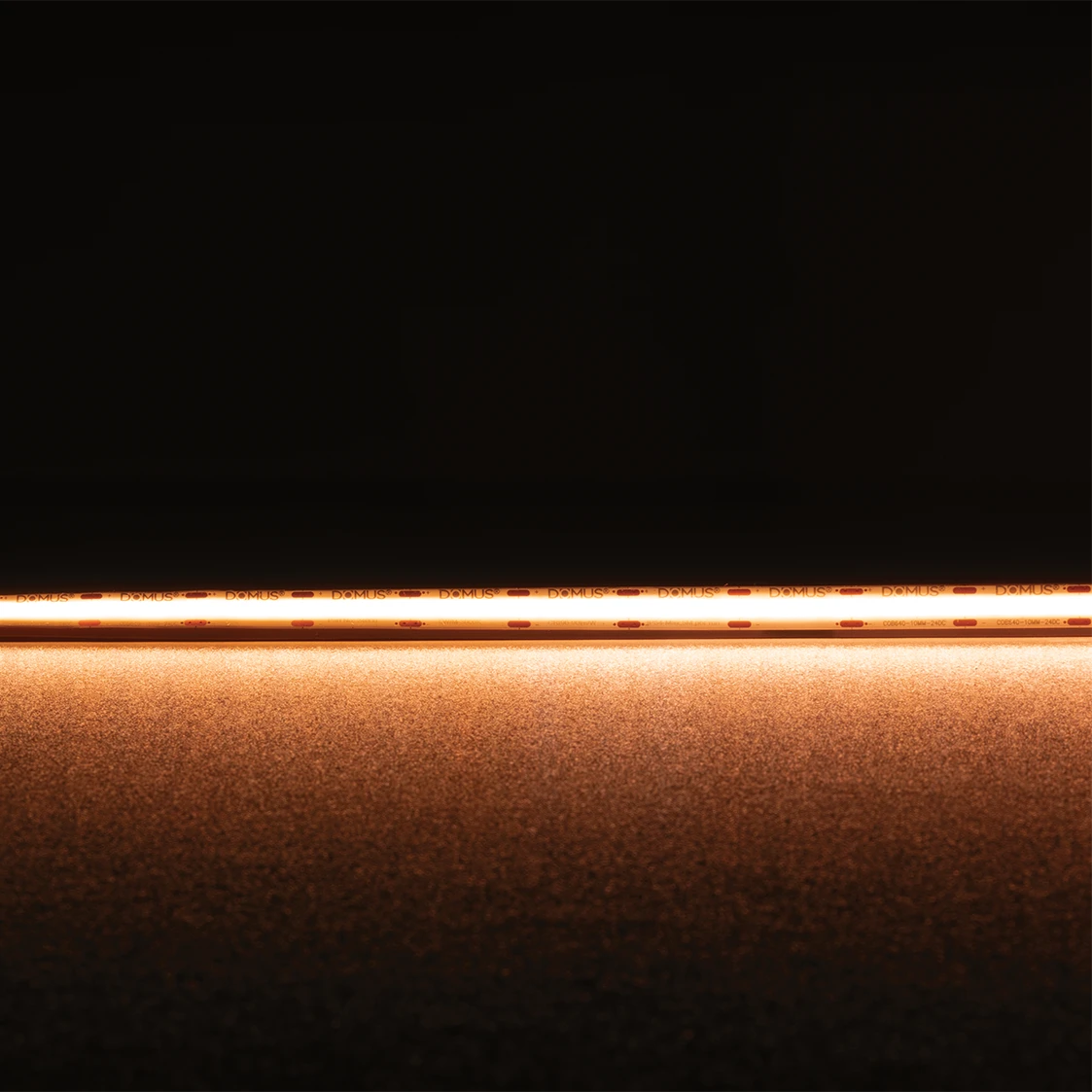

Plex-COB-5 LED Strip 24V IP54 CRI90 2700K 50m Roll Domus
Domus Plex-COB-5 LED Strip, 24V DC, IP54, CRI90, 640 LED/m, 2700K, 50m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: COB LED Strip Light, Dotless LED Strip, 24V LED Tape, Flexible LED Strip
- Product Code: PLEX-COB-5-50M, variant 23969
- Roll Length: 50 metres
- Input Voltage: 24V DC
- Power Consumption: 5W per metre
- Total Roll Power: 250W nominal
- Lumen Output: 400 lm per metre at 2700K
- Colour Temperature: 2700K extra warm white
- Colour Rendering Index: CRI ≥90
- LED Type: COB, 640 LEDs per metre
- Ingress Protection: IP54; indoor use only, including suitable indoor wet areas
- Beam Angle: 180°
- Dimming: Yes, with a suitable compatible driver and dimmer
- Cutting Increment: 25mm
- Maximum Continuous Run: 5m with one-end driver feed; 10m with driver feeds at both ends
- Wiring: Parallel
- Operating Temperature: -20°C to 50°C
- Rated Life: 50,000 hours
- Required Driver: 24V DC constant-voltage LED driver
- Heat Management: Must be installed on an aluminium heat sink or LED profile
- Dimensions (H x L x W): 4.5mm x 50000mm x 12mm
- Weight: 0.5 kg
- COB technology provides a smooth, true dotless appearance
- High-density 640 LEDs per metre for uniform linear illumination
- 2700K extra warm white colour suitable for ambient and decorative lighting
- CRI ≥90 for improved colour rendering
- 24V DC operation helps reduce resistive heat over longer installations
- 180° beam angle for broad, even light distribution
- Dimmable with compatible 24V LED control equipment
- 25mm cutting increments for custom-length sections
- Weldless joint design improves continuity and installation reliability
- 50m supply roll for larger linear lighting projects
- Installation should be performed by a licensed electrician. Use a correctly sized 24V DC constant-voltage LED driver and compatible dimming equipment where required. Install the strip on an aluminium heat sink or profile for thermal management. The 50m roll must be divided into compliant sections within the maximum 5m single-end or 10m dual-end feed limits. Follow applicable Australian wiring and lighting requirements.
- Kitchen under-cabinet and joinery lighting
- Bathroom and laundry highlighting in suitable indoor wet areas
- Bars, restaurants and hospitality interiors
- Architectural cove and indirect lighting
- Retail displays and shelving
- Residential feature lighting
- Commercial linear lighting installations
- Indoor signage and decorative illumination
- AS/NZS 60598.1:2017 is relevant to the safety assessment of complete luminaires and assembled lighting systems; product-specific compliance is not stated on the manufacturer datasheet
- AS 61347.2.13:2018 applies to the associated electronic controlgear or 24V LED driver used with LED modules
- AS/NZS 3000 applies to the electrical installation and connection of the associated driver and lighting system
- LED technology provides low-power illumination at 5W per metre
- 24V DC operation and low power consumption can support energy-efficient lighting designs
- 50,000-hour rated life can reduce replacement frequency and material waste
- Low operating heat output can reduce cooling loads compared with higher-heat light sources
- Long 50m supply roll can reduce packaging and connector waste per installed metre
Domus Lighting warranty: 3-year replacement warranty for residential COB LED strip, extended to a total 5-year replacement warranty when used with Domus drivers; 12-month replacement warranty for commercial applications, extended to a total 2-year replacement warranty when used with Domus drivers. Warranty eligibility requires installation by a licensed electrician and compliance with installation instructions. The strip must be installed on an aluminium heat sink or profile, otherwise the warranty may be void.
Available through Domus Lighting and authorised Australian lighting distributors; confirm current stock and variant availability before ordering.
