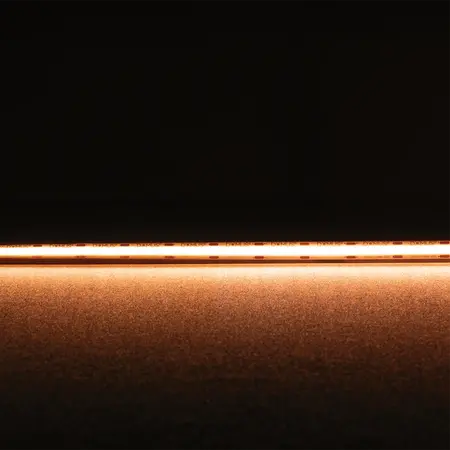

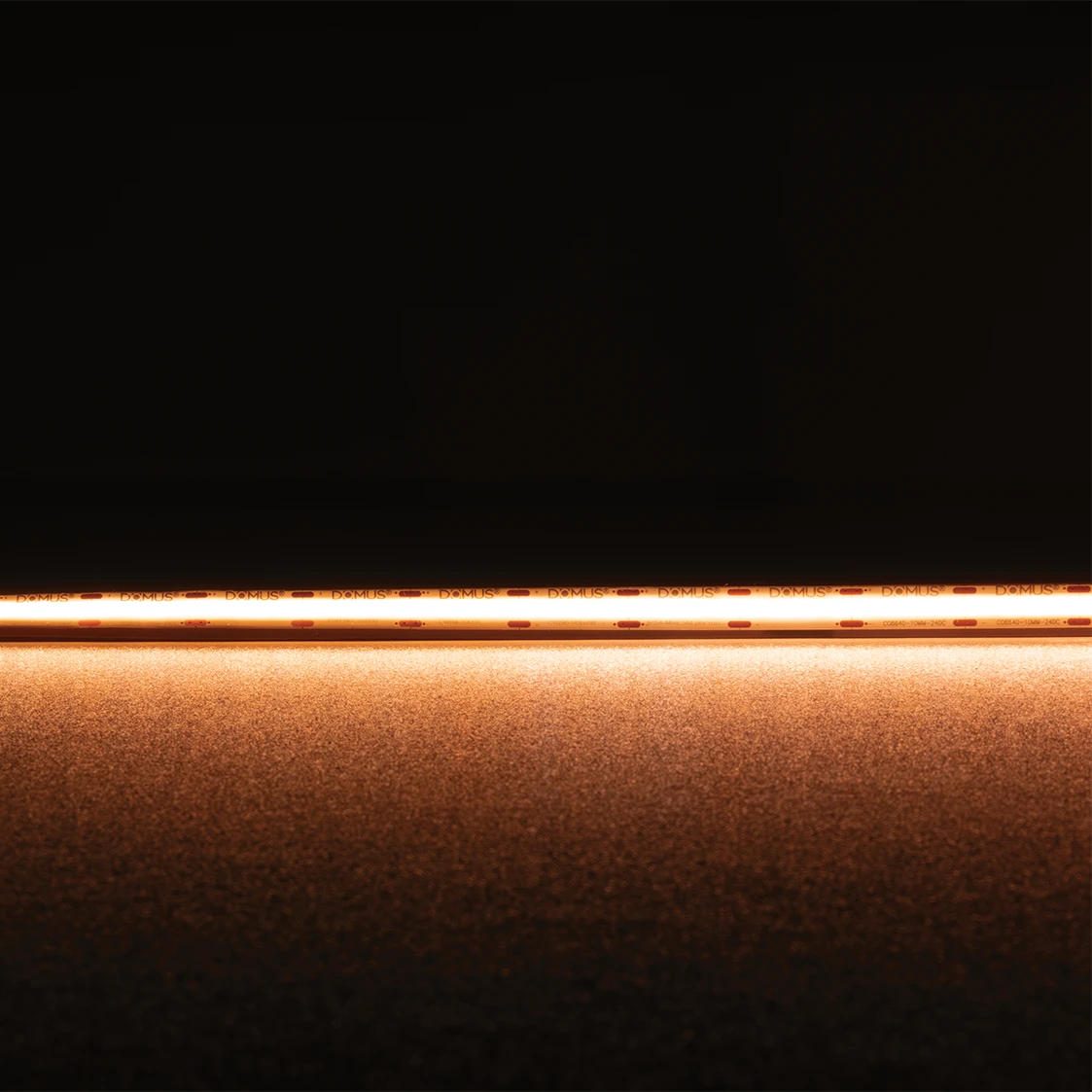

Plex-COB-5 LED Strip 24V IP54 CRI90 2700K Per Metre Domus
Domus Plex-COB-5 LED Strip, 24V DC, IP54, CRI90, 640 LED/m, 2700K, sold per metre. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: COB LED Strip Light, Dotless LED Strip, 24V LED Tape, Extra Warm White LED Strip
- Input Voltage: 24V DC
- Power Consumption: 5W per metre
- IP Rating: IP54; indoor use only, suitable for indoor wet areas
- LED Type: COB, 640 LEDs per metre
- Colour Temperature: 2700K extra warm white
- Colour Rendering Index: CRI ≥90
- Luminous Output: 400 lm per metre at 2700K
- Beam Angle: 180°
- Dimming: Yes, with compatible LED driver and dimmer
- Cutting Increment: 25mm
- Wiring: Parallel
- Continuous Run: Maximum 5m from one end or 10m when powered from both ends
- Rated Life: 50,000 hours
- Operating Temperature: -20°C to 50°C
- Storage Temperature: -30°C to 80°C
- Required Driver: 24V DC constant-voltage LED driver
- Heat Management: Must be installed on an aluminium heat sink or profile
- Dimensions (H x L x W): 4.5mm x 1000mm x 12mm
- Weight: 0.1 kg
- COB technology provides a smooth, dotless appearance
- High CRI90 output for improved colour rendering
- 2700K extra warm white suitable for ambient and feature lighting
- 24V DC operation reduces resistive heat and supports longer runs
- Dimmable with a suitable constant-voltage driver and dimmer
- Cuttable in 25mm increments for custom-length installations
- Available by the metre for custom lighting projects
- Optional connectors are available for straight, corner and flexible joins
- Installation should be performed by a licensed electrician using a compatible 24V DC constant-voltage LED driver. The strip must be installed on an aluminium heat sink or profile, and the installation should comply with applicable Australian electrical and lighting requirements.
- Kitchen under-cabinet and task lighting
- Bathroom and laundry feature lighting
- Bar and restaurant architectural lighting
- Residential and commercial cove lighting
- Indoor shelving, cabinetry and display lighting
- Decorative and accent lighting in indoor wet areas
- AS/NZS 60598.1:2017, applicable to the safety of the completed luminaire or lighting assembly
- AS/NZS 3000:2018, applicable to the electrical installation and wiring of the lighting system
- LED technology provides efficient illumination at 5W per metre
- 50,000-hour rated life can reduce replacement frequency and material waste
- Low-voltage 24V DC operation supports efficient system design
- Aluminium heat-sink installation helps manage operating temperature and extend product service life
Domus Lighting warranty: 3-year replacement warranty for residential COB LED strips, extending to 5 years when used with Domus drivers; commercial warranty is 12 months, extending to 2 years when used with Domus drivers. Warranty conditions require installation by a licensed electrician and compliance with installation guidelines.
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
