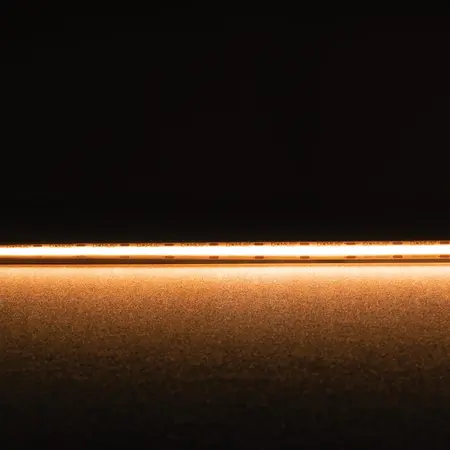

Plex-COB-5 LED Strip 24V IP54 CRI90 3000K 20m Roll Domus
Domus Plex-COB-5 LED Strip, 24V DC, IP54, CRI90, 640 LED/m, 3000K, 20m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: COB LED Strip, Dotless LED Tape, 24V LED Strip Light, Warm White LED Strip
- Input Voltage: 24V DC
- Power Consumption: 5W per metre
- Total Roll Length: 20 metres
- Light Output: 450lm per metre at 3000K
- Colour Temperature: 3000K warm white
- Colour Rendering Index: CRI ≥90
- LED Type: COB, 640 LEDs per metre
- Ingress Protection: IP54; indoor use and suitable for indoor wet areas
- Beam Angle: 180°
- Dimming: Yes, with a suitable LED driver and dimmer
- Lifespan: 50,000 hours
- Wiring: Parallel
- Cutting Increment: 25mm
- Maximum Continuous Run: 5m with one-end driver feed or 10m with two-end driver feed
- Operating Temperature: -20°C to 50°C
- Driver Requirement: 24V DC constant-voltage LED driver
- Heat Management: Must be installed on an aluminium heat sink
- Dimensions (H x L x W): 4.5mm x 20000mm x 12mm
- Weight: 1.5 kg
- COB technology provides a smooth, true dotless appearance
- High CRI90 light quality for accurate colour rendering
- 24V DC operation helps reduce resistive heat on longer runs
- 3000K warm white colour temperature
- IP54 construction suitable for indoor wet areas
- Weldless joint design supports continuity and reliability
- Fully dimmable with compatible driver and dimmer
- 25mm cut sections for flexible sizing
- Compatible with Domus PLEX-COB connectors and accessories
- Installation should be completed by a licensed electrician, particularly where the 24V LED driver connects to mains power. Install the strip on an aluminium heat sink and use a compatible 24V DC constant-voltage driver. Incorrect installation or omission of the heat sink may void the warranty.
- Kitchen and cabinet lighting
- Bathroom and laundry feature lighting
- Bars, restaurants and hospitality interiors
- Architectural and commercial linear lighting
- Display, shelving and joinery illumination
- Cove, recess and general indoor highlighting
- AS/NZS 60598.1:2017 — relevant general safety requirements for the completed LED luminaire or lighting assembly; product-specific compliance declaration is not stated by the manufacturer
- Low 5W per metre power consumption supports efficient linear lighting installations
- 50,000-hour rated lifespan can reduce replacement frequency and material waste
- 24V DC operation helps reduce resistive heat losses in longer runs
- LED technology avoids mercury-containing fluorescent lamps
- Aluminium heat-sink installation supports thermal management and product longevity
Domus COB LED strips carry a 3-year replacement warranty for residential applications, extended to a total of 5 years when used with Domus drivers. Commercial applications receive a 12-month replacement warranty, extended to a total of 2 years when used with Domus drivers. Warranty eligibility requires installation by a licensed electrician and compliance with Domus installation guidelines.
Available through Domus Lighting and authorised Australian lighting distributors.
