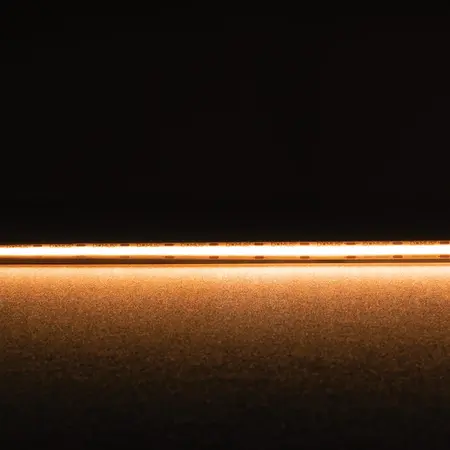

Plex-COB-5 LED Strip 24V IP54 CRI90 3000K 50m Roll Domus
Domus Plex-COB-5 LED Strip, 24V DC, IP54, CRI90, 640 LED/m, 3000K, 50m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: COB LED strip, dotless LED strip, flexible LED tape, 24V LED strip light, warm white LED strip
- Input Voltage: 24V DC
- Power: 5W per metre
- Light Output: 450 lm per metre at 3000K
- Colour Temperature: 3000K warm white
- Colour Rendering Index: CRI ≥90
- LED Type: COB, 640 LEDs per metre
- Beam Angle: 180°
- IP Rating: IP54; indoor use, suitable for indoor wet areas
- Dimming: Yes, with a suitable LED driver and dimmer
- Cutting Increment: 25mm
- Wiring: Parallel
- Maximum Continuous Run: 5m with one-end driver feed; 10m with driver feeds at both ends
- Operating Temperature: -20°C to 50°C
- Rated Life: 50,000 hours
- Driver Requirement: 24V DC constant-voltage LED driver
- Heat Management: Must be installed on an aluminium heat sink
- Strip Width: 12mm
- Strip Height: 4.5mm
- McAdam Step: SDCM 3
- Dimensions (H x L x W): 4.5mm x 50000mm x 12mm
- Weight: 3.5 kg
- True dotless COB appearance with smooth, uniform linear illumination
- High CRI90 output for improved colour rendering
- 24V DC operation reduces resistive heat and supports longer run lengths
- 50m roll format for large-scale linear lighting installations
- Weldless joint design improves continuity and reliability
- 25mm cutting increments for installation flexibility
- Dimmable with compatible 24V constant-voltage equipment
- Compatible fast-fix, L-joint and strip connector accessories
- Suitable for kitchens, bathrooms, laundries, bars, restaurants and architectural feature lighting
- Installation should be performed by a licensed electrician. Use a correctly sized 24V DC constant-voltage LED driver, suitable dimmer where required, aluminium heat sinking and wiring appropriate to the installation. The manufacturer's warranty requires installation in accordance with its guidelines, including aluminium heat sinking and compatible drivers. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2026/08/PLEX-COB-5-IP54-Data-Sheet.pdf))
- Kitchen and joinery lighting
- Bathroom and laundry feature lighting
- Bar and restaurant architectural lighting
- Display, cabinet and shelving illumination
- Cove, recessed and indirect lighting
- Commercial linear lighting projects
- Residential architectural and decorative lighting
- AS/NZS 60598.2.23:2021 — relevant reference for extra-low-voltage lighting systems; verify compliance of the completed lighting assembly and installation documentation.
- AS/NZS 60598.1:2017 — general luminaire safety requirements relevant to a completed luminaire or assembled lighting system.
- AS/NZS 3000 — electrical installation and wiring requirements applicable to the installed 24V lighting system and associated mains-connected driver.
- Low 5W-per-metre power consumption can reduce energy use compared with higher-wattage linear lighting alternatives.
- 50,000-hour rated life can reduce replacement frequency and associated material waste.
- 24V DC operation and parallel wiring support efficient, low-voltage linear lighting installations.
- Aluminium heat-sink installation supports thermal management and may help maintain product life and performance.
Domus warranty for COB LED strips is 3 years replacement for residential applications and 12 months replacement for commercial applications. Warranty increases to 5 years residential or 2 years commercial when used with Domus drivers, subject to the published conditions, licensed installation and installation guidelines. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2026/01/Warranty-Statement-Revised-09-01-2026.pdf))
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers. ([domuslighting.com.au](https://www.domuslighting.com.au/product-category/plex-series/?utm_source=openai))
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
