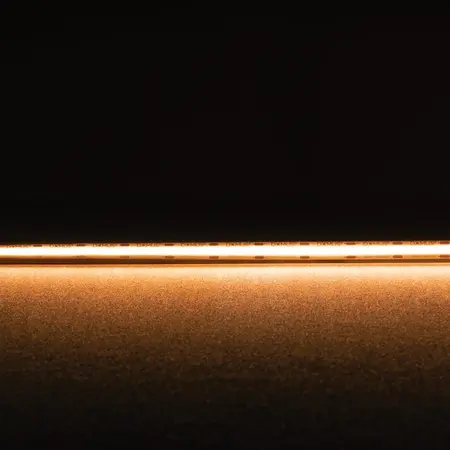

Plex-COB-5 LED Strip 24V IP54 CRI90 3000K Per Metre Domus
Domus Plex-COB-5 LED Strip, 24V DC, IP54, CRI90, 640 LED/m, 3000K, sold per metre. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: COB LED Strip, FCOB LED Tape, Dotless LED Strip, 24V LED Strip Light
- Input Voltage: 24V DC
- Power Consumption: 5W per metre
- Light Output: 450 lm per metre at 3000K
- Colour Temperature: 3000K warm white
- Colour Rendering Index: CRI ≥90
- LED Type: COB, 640 LEDs per metre
- IP Rating: IP54; indoor use only and suitable for indoor wet areas
- Beam Angle: 180°
- Dimming: Fully dimmable with suitable 24V LED driver and dimmer
- Cutting Increment: 25mm
- Wiring: Parallel
- Maximum Continuous Run: 5m with single-end driver feed; 10m with driver feed at both ends
- Lifespan: 50,000 hours
- Operating Temperature: -20°C to 50°C
- Storage Temperature: -30°C to 80°C
- Required Driver: 24V DC constant-voltage LED driver
- Dimensions (H x L x W): 4.5mm x 1000mm x 12mm
- Weight: 0.1 kg
- COB technology provides a continuous, dotless appearance
- High colour rendering with CRI ≥90
- 3000K warm white light suitable for accent and feature lighting
- 24V DC operation supports reduced voltage drop over longer runs compared with 12V strips
- 25mm cutting increments for custom-length installations
- Dimmable when paired with a compatible driver and dimmer
- Available by the metre for custom cuts
- Must be installed on an aluminium heat sink for thermal management and warranty validity
- Install the strip on a suitable aluminium heat sink and use a compatible 24V DC constant-voltage LED driver. Connection to mains-powered equipment and driver installation should be completed by a licensed electrician in accordance with AS/NZS 3000 and the driver manufacturer's instructions.
- Kitchen cabinet and benchtop accent lighting
- Bathroom and laundry feature lighting in suitable indoor wet areas
- Bar and restaurant decorative lighting
- Joinery, shelving and display lighting
- Cove, niche and indirect architectural lighting
- Indoor highlighting and feature-lighting installations
- AS/NZS 3000: Electrical installations and wiring requirements for the completed installation
- AS/NZS 60598.1: General safety requirements for luminaires applicable to the completed lighting assembly
- AS/NZS 61347.2.13: Particular requirements for electronic controlgear for LED modules, applicable to the compatible LED driver
- LED technology provides efficient illumination at 5W per metre compared with many conventional light sources
- 50,000-hour rated lifespan can reduce replacement frequency and associated material waste
- 24V operation and 90-100 lm/W efficiency support lower energy consumption in suitable lighting applications
- Aluminium heat-sink installation helps manage operating temperature and extend product service life
Domus Lighting warranty: residential COB LED strips receive a 3-year replacement warranty, extended to a total 5-year replacement warranty when used with Domus drivers. Commercial applications receive a 12-month replacement warranty, extended to a total 2-year replacement warranty when used with Domus drivers. Installation on an aluminium heat sink and compliance with installation guidelines are required.
Available by the metre and through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
