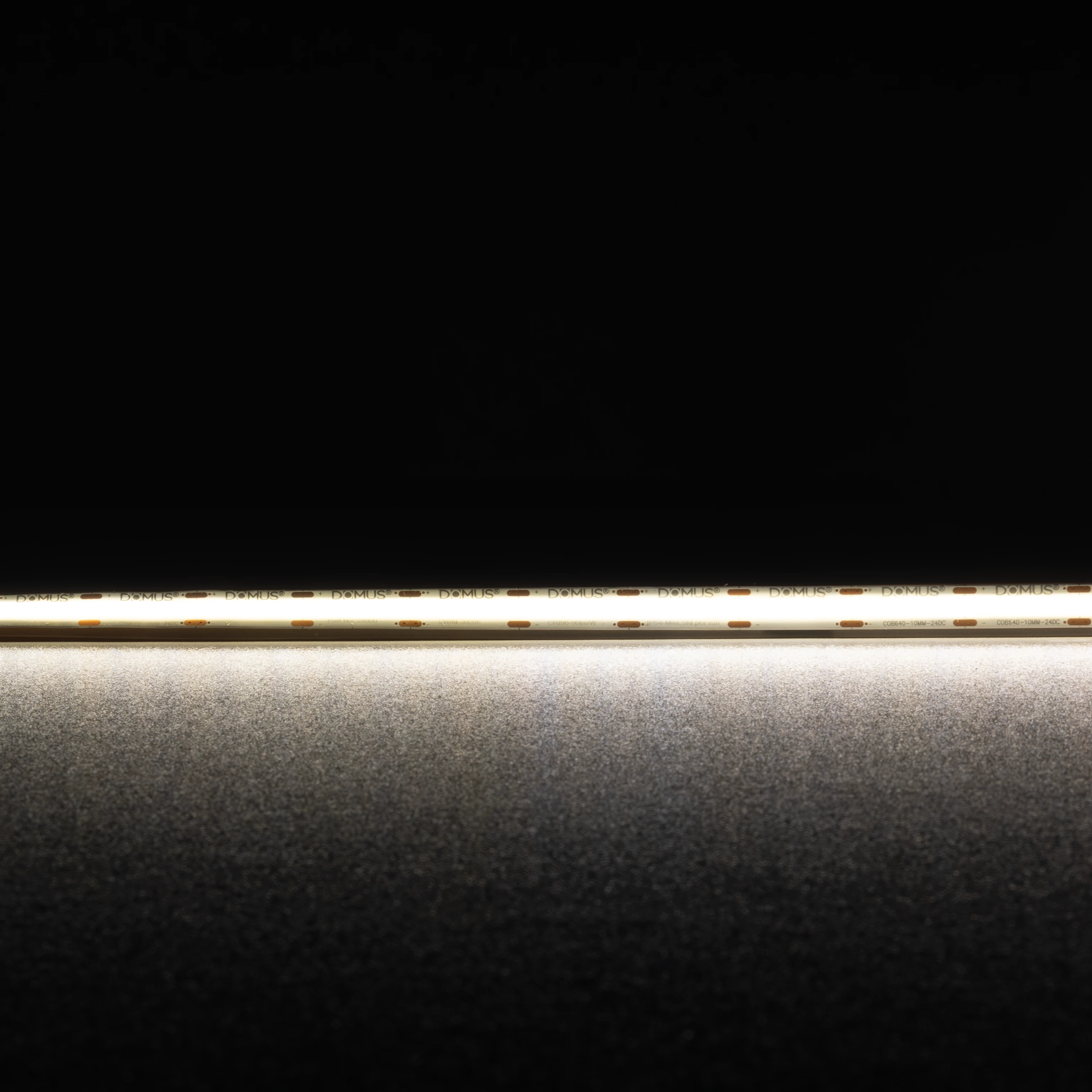

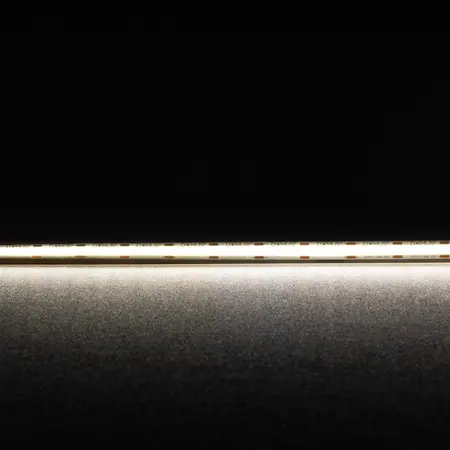

Plex-COB-5 LED Strip 24V IP54 CRI90 4000K 20m Roll Domus
Domus Plex-COB-5 LED Strip, 24V DC, IP54, CRI90, 640 LED/m, 4000K, 20m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Plex COB-5 LED Tape, COB LED Strip Light, Dotless LED Strip, 24V LED Tape, High-CRI LED Strip
- Input Voltage: 24V DC
- Power Consumption: 5W per metre
- Supply Length: 20m roll
- Colour Temperature: 4000K neutral white
- Lumen Output: 500 lm per metre
- LED Type: COB, 640 LEDs per metre
- Colour Rendering Index: CRI ≥90
- IP Rating: IP54 for indoor use and suitable indoor wet areas
- Beam Angle: 180°
- Dimming: Yes, with compatible 24V LED driver and dimmer
- Rated Life: 50,000 hours
- Wiring: Parallel
- Cutting Increment: 25mm
- Maximum Continuous Run: 5m with one-end feed or 10m with two-end feed
- Operating Temperature: -20°C to 50°C
- Storage Temperature: -30°C to 80°C
- Driver Requirement: 24V DC constant-voltage LED driver
- Heat Management: Must be installed on an aluminium heat sink or LED profile
- Dimensions (H x L x W): 4.5mm x 20000mm x 12mm
- Weight: 1.2 kg
- True dotless COB illumination with 640 LEDs per metre
- High colour rendering with CRI ≥90
- 4000K neutral white light suitable for residential and commercial interiors
- IP54 construction for indoor use, including suitable indoor wet-area applications
- Flexible 20m supply roll with 25mm cutting increments
- Dimmable with a suitable constant-voltage driver and compatible dimming control
- Long 50,000-hour rated life
- Aluminium heat sink installation helps manage operating temperature and maintain warranty conditions
- Installation should be performed by a licensed electrician. Use a compatible 24V DC constant-voltage LED driver, size the installation within the stated maximum run lengths, and install the strip on a suitable aluminium heat sink or profile. Any mains-voltage driver connection must comply with applicable Australian wiring requirements.
- Cove and concealed architectural lighting
- Kitchen, bathroom and laundry accent lighting
- Retail, hospitality and restaurant linear lighting
- Display cabinets, shelving and joinery illumination
- Residential and commercial indoor highlighting applications
- Applicable luminaire safety framework: AS/NZS 60598.1:2025, Luminaires, Part 1: General requirements and tests
- Installation wiring should comply with AS/NZS 3000 where the 24V driver is connected to the electrical installation
- The available product data does not state a specific product certification or declaration of compliance to these standards
- Uses 5W per metre for relatively low electrical consumption compared with many higher-output strip-lighting options
- 50,000-hour rated life can reduce replacement frequency and associated material waste
- 24V DC operation supports efficient low-voltage lighting system design
- Aluminium heat-sink installation can assist thermal management and extend service life
- LED lighting avoids mercury-containing fluorescent lamp technology
Domus Lighting's 9 January 2026 warranty statement specifies a COB LED Strip warranty of 3 years replacement for residential applications, extending to a total of 5 years when used with Domus drivers. Commercial warranty is 12 months replacement, extending to a total of 2 years when used with Domus drivers. Warranty eligibility requires licensed-electrician installation and adherence to Domus installation guidelines, including aluminium heat-sink installation.
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
