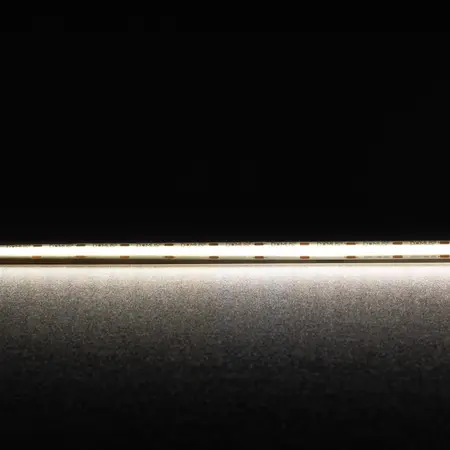

Plex-COB-5 LED Strip 24V IP54 CRI90 4000K 50m Roll Domus
Domus Plex-COB-5 LED Strip, 24V DC, IP54, CRI90, 640 LED/m, 4000K, 50m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: COB LED strip, dotless LED tape, 24V LED strip light, linear LED strip lighting
- Roll Length: 50 metres
- Input Voltage: 24V DC
- Power Consumption: 5W per metre
- Luminous Output: 500 lm per metre at 4000K
- Colour Temperature: 4000K neutral white
- Colour Rendering Index: ≥90
- LED Type: COB, 640 LEDs per metre
- IP Rating: IP54; indoor use only, including suitable indoor wet areas
- Beam Angle: 180°
- Dimming: Yes, with a compatible driver and dimmer
- Cutting Increment: 25mm
- Rated Life: 50,000 hours
- Operating Temperature: -20°C to 50°C
- Wiring: Parallel
- Continuous Run: Maximum 5m with one-end feed or 10m with feeds at both ends
- Driver Requirement: 24V DC constant-voltage LED driver
- Thermal Management: Must be installed on an aluminium heat sink or LED profile
- Dimensions (H x L x W): 4.5mm x 50000mm x 12mm
- Weight: 2.5 kg
- True dotless COB appearance with 640 LEDs per metre
- High CRI90 light quality for accurate colour rendering
- 4000K neutral white light suitable for architectural and task lighting
- IP54 construction for indoor applications and suitable indoor wet areas
- Dimmable with suitable 24V DC driver and compatible dimming control
- 25mm cutting increments for custom-length installations
- Weldless joint design helps improve continuity and reliability
- 50m supply roll for larger linear lighting projects
- 50m roll must be divided into compliant installed runs within the specified maximum run lengths
- Installation should be completed by a suitably qualified electrician. Use a compatible 24V DC constant-voltage LED driver, install the strip on an aluminium heat sink or profile, and complete any mains-voltage driver wiring in accordance with AS/NZS 3000 and the manufacturer's instructions.
- Kitchen and cabinet lighting
- Bathroom and laundry feature lighting
- Bars, restaurants and hospitality interiors
- Architectural cove and concealed lighting
- Retail and commercial display lighting
- Residential and commercial linear accent lighting
- AS/NZS 3000:2018 Electrical installations – Wiring Rules, applicable to the electrical installation and driver connection
- AS/NZS 60598.1:2025 Luminaires – General requirements and tests, relevant when the strip is incorporated into a complete luminaire or lighting assembly
- LED technology provides efficient illumination at 5W per metre compared with many conventional linear light sources
- 50,000-hour rated life can reduce replacement frequency and associated material waste
- 24V DC operation and COB construction support efficient low-voltage linear lighting systems
- Required aluminium heat sink or profile can be recovered and recycled at end of service life
Domus warranty: 3-year replacement warranty for residential use and 12-month replacement warranty for commercial use. When used with Domus drivers, COB LED strips receive a total 5-year residential replacement warranty or 2-year commercial replacement warranty, subject to installation and warranty conditions.
Available through Domus Lighting and authorised Australian electrical wholesalers, lighting retailers and distributors.
