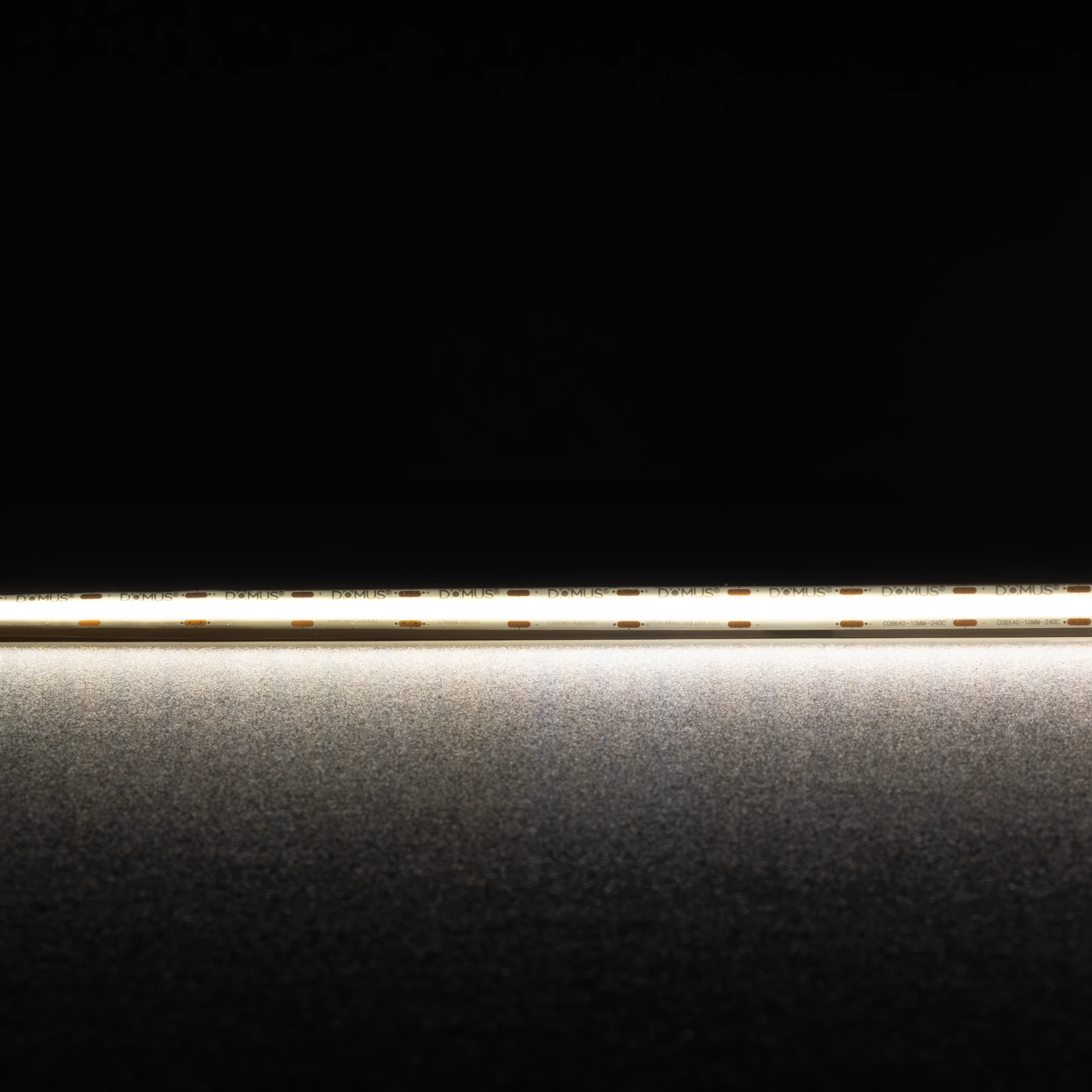

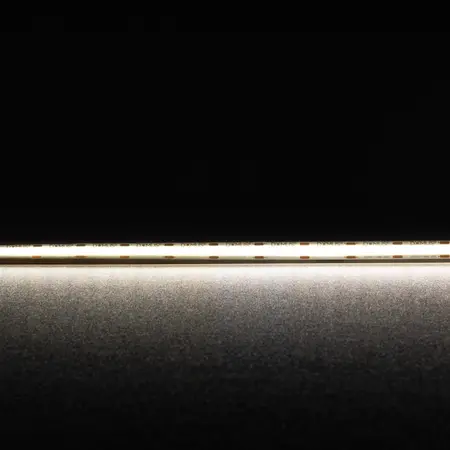

Plex-COB-5 LED Strip 24V IP54 CRI90 4000K Per Metre Domus
Domus Plex-COB-5 LED Strip, 24V DC, IP54, CRI90, 640 LED/m, 4000K, sold per metre. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: COB LED Strip Light, Dotless LED Strip, 24V LED Tape, PLEX-COB-5 Neutral White LED Strip
- Input Voltage: 24V DC
- Power Consumption: 5W per metre
- Lumen Output: 500 lm per metre
- Colour Temperature: 4000K neutral white
- Colour Rendering Index: CRI ≥90
- LED Type: COB, 640 LEDs per metre
- IP Rating: IP54
- Beam Angle: 180°
- Dimming: Yes, with a compatible 24V LED driver and dimmer
- Cutting Increment: 25mm
- Wiring: Parallel
- Maximum Continuous Run: 5m with one-end driver feed; 10m with both-end driver feed
- Operating Temperature: -20°C to 50°C
- Rated Life: 50,000 hours
- Driver Requirement: 24V DC constant-voltage LED driver, sold separately
- Heat Management: Must be installed on an aluminium heat sink or LED profile
- Use: Indoor use only; suitable for indoor wet areas
- Light Distribution: Smooth, seamless and dotless appearance
- Weight Basis: Approximate estimate for one metre; manufacturer-published weight not located
- Dimensions (H x L x W): 4.5mm x 1000mm x 12mm
- Weight: 0.1 kg
- True dotless COB appearance using 640 LEDs per metre
- High CRI90 performance for accurate colour rendering
- 24V DC operation for reduced resistive heat and longer run lengths
- 4000K neutral white light with approximately 500 lumens per metre
- IP54 protection for indoor applications and suitable indoor wet areas
- 25mm cutting increments for custom-length installations
- Dimmable with a suitable driver and dimming control
- Weldless joint design supports continuity and reliability
- Compatible with fast-fix, straight, corner and flexible strip connectors
- Suitable for kitchens, bathrooms, laundries, bars, restaurants and feature lighting
- Installation should be performed by a licensed electrician in accordance with the manufacturer's installation requirements and applicable Australian wiring rules. Use a correctly sized 24V DC constant-voltage LED driver, suitable dimming equipment where required, and install the strip on an aluminium heat sink or LED profile. Incorrect installation or omission of the heat sink may void the warranty.
- Kitchen under-cabinet and joinery lighting
- Bathroom and laundry feature lighting
- Bar and restaurant architectural lighting
- Retail, hospitality and commercial feature lighting
- Indoor cove, shelf and cabinet illumination
- Decorative and architectural linear lighting
- AS/NZS 3000:2018 Wiring Rules — applicable to the associated electrical installation and 24V driver wiring
- AS/NZS 60598.1:2017 — relevant to the safety assessment of the completed luminaire or lighting assembly
- AS/NZS 61347.2.13:2018 — relevant to compatible LED controlgear and constant-voltage drivers
- 5W per metre power consumption supports efficient linear lighting installations
- 24V DC low-voltage operation can reduce resistive losses when correctly designed and wired
- 50,000-hour rated life can reduce replacement frequency and material waste
- Aluminium heat-sink installation supports thermal management and longer service life
- LED lighting generally reduces energy consumption compared with equivalent higher-wattage conventional light sources
Domus COB LED strips have a 3-year replacement warranty for residential applications and a 12-month replacement warranty for commercial applications. When used with Domus drivers, the warranty extends to 5 years residential or 2 years commercial. Warranty conditions include licensed-electrician installation, use according to installation guidelines and installation on an aluminium heat sink.
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
