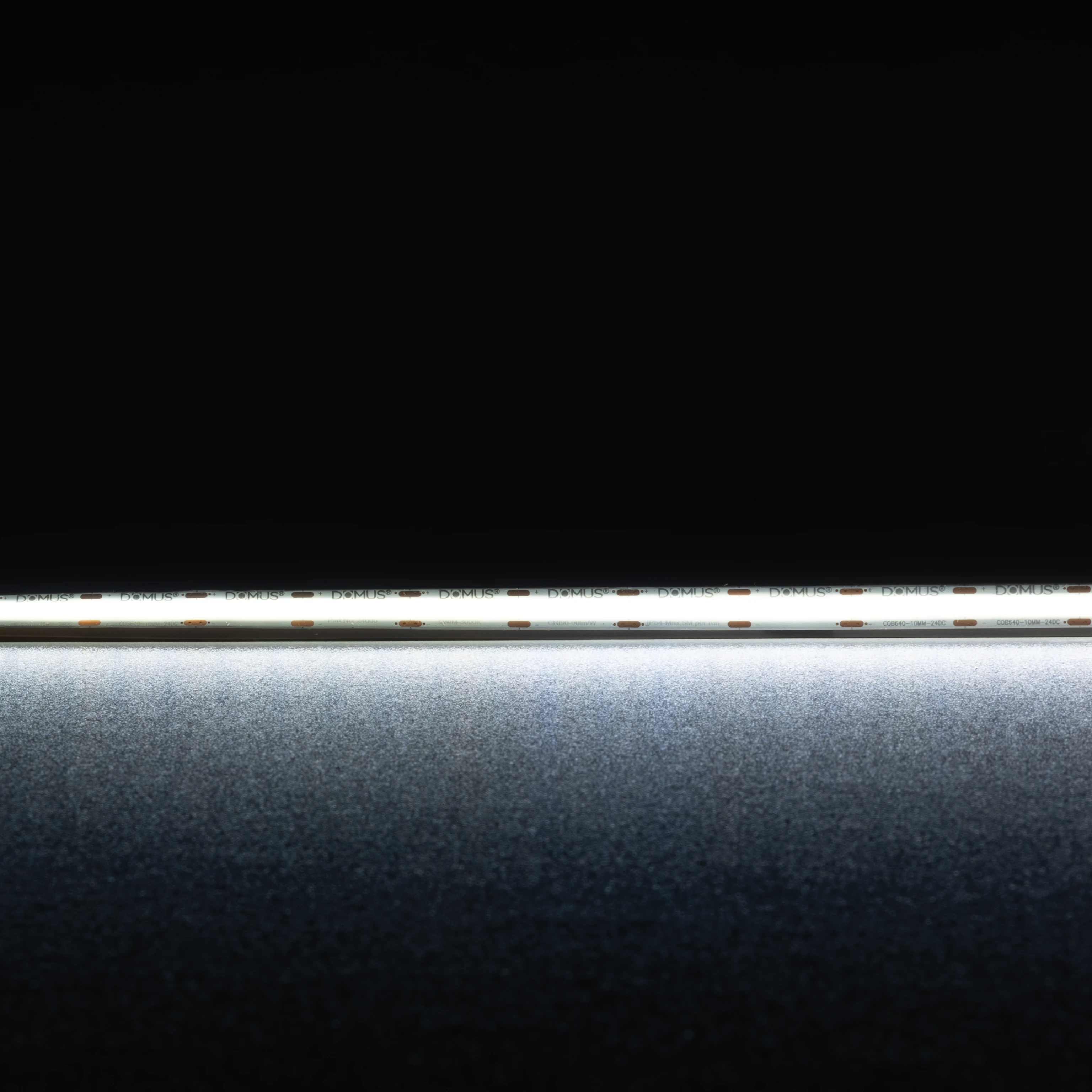

Plex-COB-5 LED Strip 24V IP54 CRI90 5000K 20m Roll Domus
Domus Plex-COB-5 LED Strip, 24V DC, IP54, CRI90, 640 LED/m, 5000K, 20m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: COB LED Strip, Dotless LED Strip, 24V LED Tape, High CRI LED Strip
- Product Code: PLEX-COB-5-20M / Variant 24016
- Roll Length: 20 metres
- Power Consumption: 5W per metre; 100W per 20m roll
- Input Voltage: 24V DC
- Light Output: 500 lumens per metre
- Colour Temperature: 5000K
- Colour Rendering Index: CRI ≥90
- LED Density: 640 COB LEDs per metre
- Ingress Protection: IP54
- Beam Angle: 180°
- Cutting Increment: 25mm
- Continuous Run: Maximum 5m from one end or 10m when powered from both ends
- Dimming: Compatible with suitable 24V LED driver and dimming control
- Operating Temperature: -20°C to 50°C
- Driver Requirement: 24V DC constant-voltage LED driver required
- Installation Requirement: Aluminium LED profile or heat sink required
- Dimensions (H x L x W): 4.5mm x 20000mm x 12mm
- Weight: 0.8 kg
- Continuous dotless COB light output
- High colour rendering with CRI ≥90
- Neutral daylight-white 5000K colour temperature
- Low-voltage 24V DC operation
- IP54 protection for suitable indoor applications
- Dimmable with compatible driver and control equipment
- 25mm cut points for custom lengths
- Suitable for concealed, cove and linear lighting installations
- Installation should be completed by a licensed electrician, particularly where the 24V driver connects to mains power. Install the strip on a suitable aluminium profile or heat sink, use a compatible 24V DC constant-voltage driver, and follow the manufacturer's maximum run lengths and installation instructions.
- Cove and pelmet lighting
- Joinery and cabinet lighting
- Retail and hospitality displays
- Commercial feature and accent lighting
- Residential indirect lighting
- Signage and architectural linear lighting
- AS/NZS 60598.1:2017, relevant to general luminaire safety requirements when the strip is incorporated into a completed luminaire or lighting system
- AS/NZS 60598.2.23:2021, relevant to extra-low-voltage lighting systems where applicable
- AS 61347.2.13:2018, relevant to the associated LED controlgear or 24V driver rather than the LED strip alone
- Consumes 5W per metre while providing approximately 500 lumens per metre at 5000K
- Low-voltage 24V DC operation supports efficient LED lighting system design
- COB LED construction provides a long, continuous light source that can reduce replacement frequency
- High CRI output can provide effective illumination with less need for supplementary lighting
- LED lighting generally produces less energy consumption than equivalent conventional light sources
Domus Lighting warranty: 3-year replacement warranty for residential COB LED strips, extended to 5 years total when used with Domus drivers; 12-month replacement warranty for commercial applications, extended to 2 years total when used with Domus drivers. Warranty eligibility requires installation by a licensed electrician and compliance with Domus installation guidelines.
Available through Domus Lighting and authorised Australian lighting distributors.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
