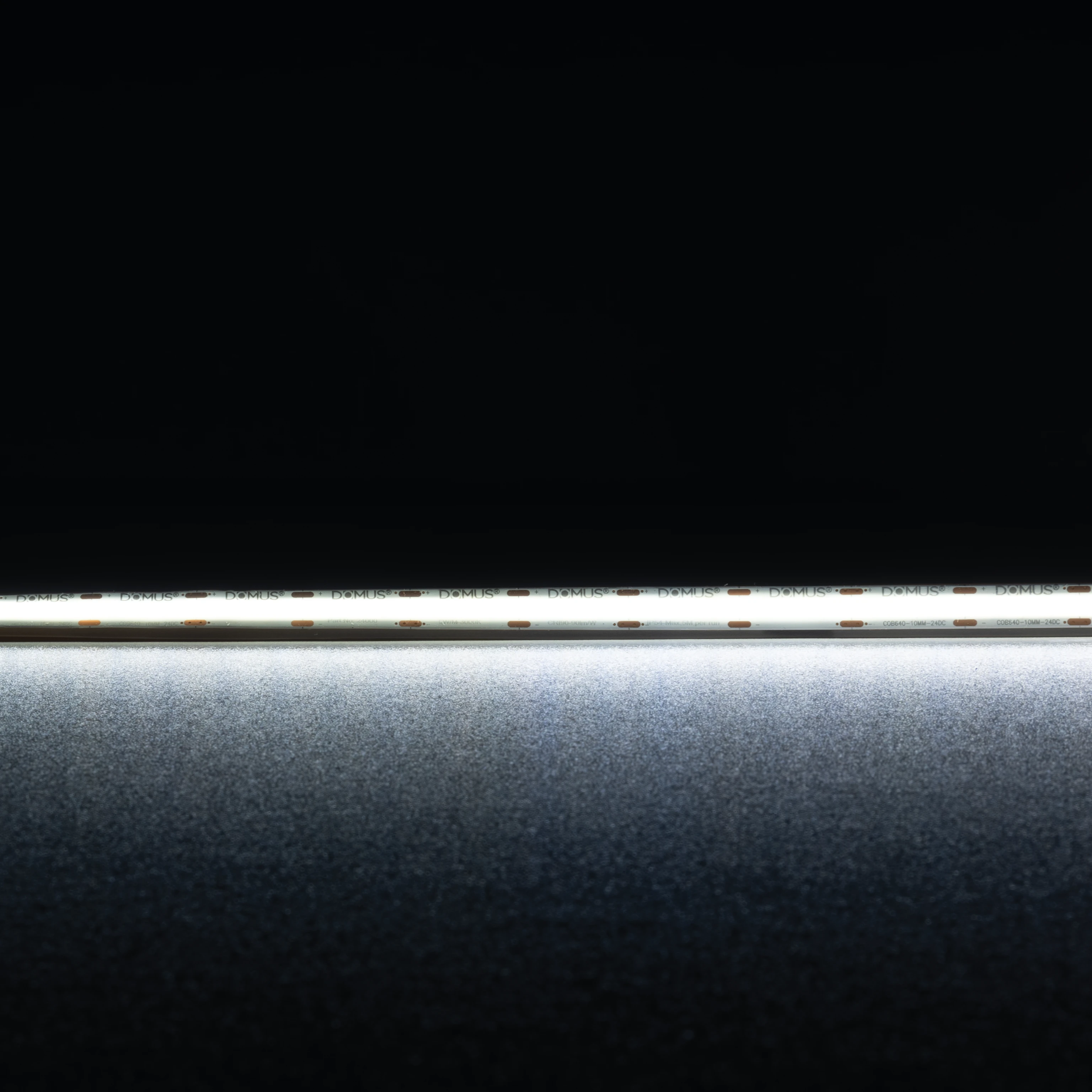

Plex-COB-5 LED Strip 24V IP54 CRI90 5000K 50m Roll Domus
Domus Plex-COB-5 LED Strip, 24V DC, IP54, CRI90, 640 LED/m, 5000K, 50m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: COB LED Strip Light, Dotless LED Strip, 24V LED Tape, High CRI LED Strip
- Roll Length: 50 metres
- Wattage: 5W per metre; 250W per 50m roll
- Input Voltage: 24V DC
- Colour Temperature: 5000K
- Lumen Output: 500lm per metre
- Colour Rendering Index: CRI ≥90
- LED Type: COB
- LED Density: 640 LEDs per metre
- IP Rating: IP54
- Beam Angle: 180°
- Cutting Increment: 25mm
- Maximum Continuous Run: 5m from one end or 10m when powered from both ends
- Dimming: Yes, with a suitable 24V DC LED driver and compatible dimmer
- Strip Width: 12mm
- PCB Width: 10mm
- End Cap Size: 16.5mm wide x 6.5mm high
- Operating Temperature: -20°C to 50°C
- Rated Life: 50,000 hours
- Driver Requirement: 24V DC constant-voltage LED driver, sold separately
- Dimensions (H x L x W): 4.5mm x 50000mm x 12mm
- Weight: 0.5 kg
- COB technology provides a smooth, true dotless appearance
- High colour rendering with CRI ≥90
- Low-voltage 24V DC operation
- IP54 protection for suitable indoor and sheltered damp-area applications
- 25mm cut points for length adjustment
- Dimmable with compatible control equipment
- Weldless joint design supports continuity and reliability
- Suitable for use with compatible aluminium LED profiles or heat sinks
- Installation should be performed by a licensed electrician or suitably qualified lighting professional. Use an appropriately rated 24V DC constant-voltage LED driver, observe the maximum continuous run lengths, provide suitable heat dissipation with an aluminium profile or heat sink, and install in accordance with AS/NZS 3000 and the manufacturer's instructions.
- Kitchen and bathroom feature lighting
- Laundry and bar lighting
- Restaurant and hospitality interiors
- Architectural coves and concealed linear lighting
- Display, cabinet and joinery illumination
- Commercial and residential indoor highlighting
- AS/NZS 3000:2018 – Electrical installations, including low-voltage and extra-low-voltage lighting installation requirements
- AS/NZS 60598.1:2017 – General luminaire safety requirements where the strip is incorporated into a complete luminaire or lighting assembly
- LED technology provides efficient illumination at 5W per metre
- Long rated life of up to 50,000 hours can reduce replacement frequency and waste
- 24V DC operation supports efficient low-voltage lighting system design
- Compatible with dimming controls, allowing reduced energy consumption when full output is not required
Domus Lighting warranty: residential applications receive 3-year replacement coverage, extending to 5 years when used with Domus drivers. Commercial applications receive 12-month replacement coverage, extending to 2 years when used with Domus drivers. Installation must meet Domus warranty conditions, including use of a licensed electrician and compliance with installation instructions.
Available through Domus Lighting and authorised Australian lighting distributors.
