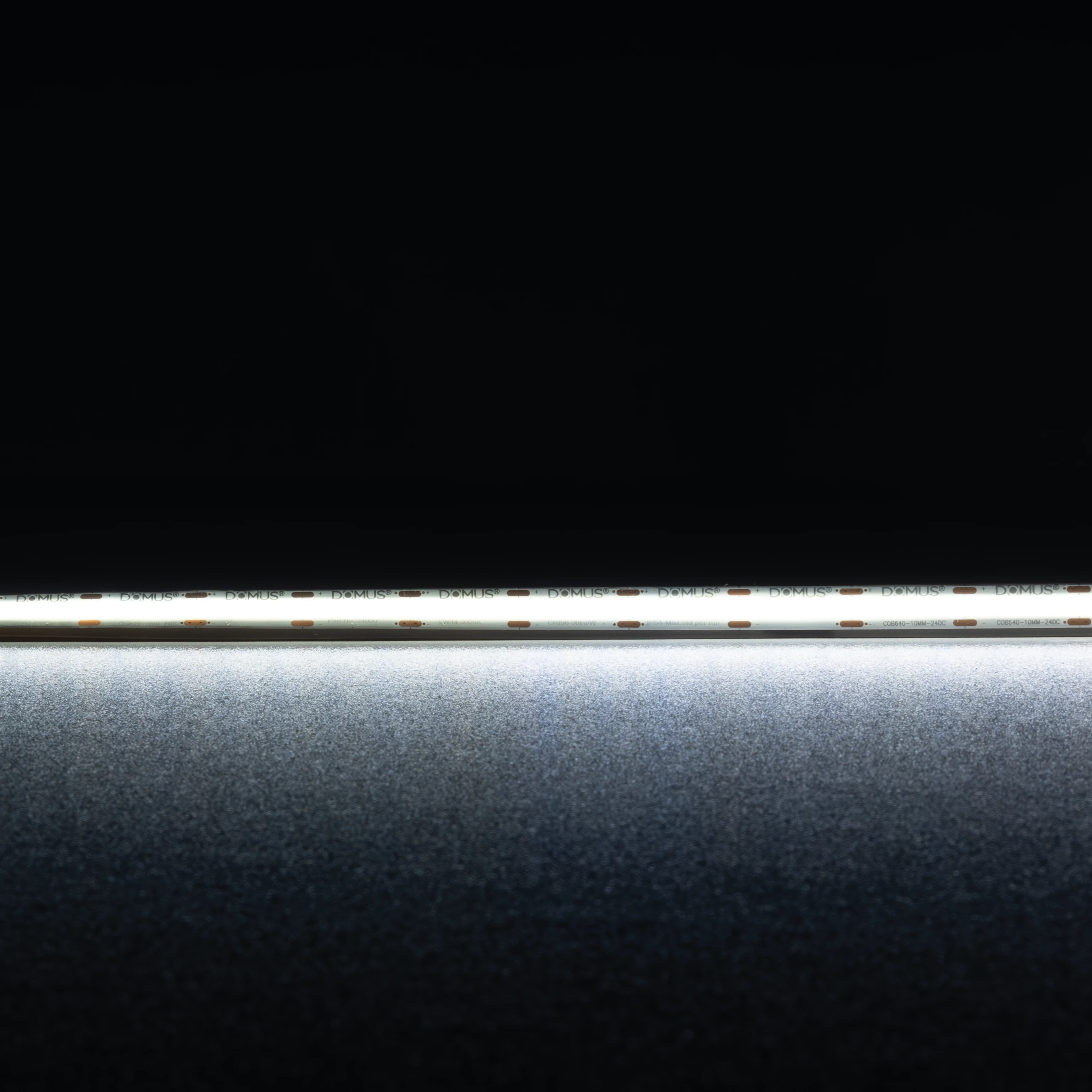

Plex-COB-5 LED Strip 24V IP54 CRI90 5000K Per Metre Domus
Domus Plex-COB-5 LED Strip, 24V DC, IP54, CRI90, 640 LED/m, 5000K, sold per metre. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: COB LED Strip Light, Dotless LED Strip, 24V LED Tape, High CRI LED Strip, Domus PLEX-COB-5
- Input Voltage: 24V DC
- Power Consumption: 5W per metre
- Lumen Output: 500lm per metre at 5000K
- Colour Temperature: 5000K
- Colour Rendering Index: CRI ≥90
- LED Type: COB, 640 LEDs per metre
- Beam Angle: 180°
- IP Rating: IP54 for indoor use, including indoor wet areas
- Cutting Increment: 25mm
- Wiring: Parallel
- Dimming: Yes, with compatible LED driver and dimmer
- Maximum Continuous Run: 5m with single-end driver feed; 10m with driver feeds at both ends
- Operating Temperature: -20°C to 50°C
- Storage Temperature: -30°C to 80°C
- Rated Life: 50,000 hours
- Driver Requirement: 24V DC constant-voltage LED driver
- Heat Management: Must be installed on an aluminium heat sink
- Dimensions (H x L x W): 4.5mm x 1000mm x 12mm
- Weight: 0.1 kg
- True dotless COB illumination with smooth, uniform light output
- High colour rendering with CRI ≥90
- 24V DC operation helps reduce resistive heat over longer runs
- Suitable for kitchens, bathrooms, laundries, bars, restaurants and indoor feature lighting
- Dimmable with a compatible 24V LED driver and dimmer
- Flexible 25mm cutting increments for custom lengths
- Weldless joint design supports continuity and reliability
- Available per metre for custom-cut installations
- Compatible with Domus fast-fix, straight-join, corner-join and flexible connectors
- Installation should be completed by a licensed electrician. Use a correctly sized 24V DC constant-voltage LED driver, install the strip on an aluminium heat sink, observe the IP54 indoor-use limitation and follow applicable Australian wiring and lighting requirements.
- Kitchen under-cabinet and task lighting
- Bathroom, laundry and indoor wet-area highlighting
- Bar, restaurant and hospitality feature lighting
- Residential architectural and joinery lighting
- Commercial display, shelving and cove lighting
- Indoor linear accent and decorative lighting
- AS/NZS 60598.1:2017 - General requirements and tests for luminaires when incorporated into a complete lighting assembly
- AS/NZS 61347.2.13 - Applicable requirements for LED module controlgear used with the required driver
- AS/NZS 3000 - Relevant electrical installation requirements for the associated driver and low-voltage lighting system
- 5W per metre power consumption supports lower energy use than higher-wattage linear lighting alternatives
- 500lm per metre output provides approximately 100lm/W efficacy at 5000K
- 50,000-hour rated life can reduce replacement frequency and installation waste
- 24V DC operation can reduce resistive heat and improve efficiency over suitable longer runs
- Low-voltage LED technology avoids mercury-containing fluorescent light sources
Domus COB LED strips have a 3-year replacement warranty for residential applications and a 12-month replacement warranty for commercial applications. When used with Domus drivers, the total replacement warranty extends to 5 years residential and 2 years commercial. Warranty eligibility requires installation by a licensed electrician and compliance with Domus installation guidelines, including installation on an aluminium heat sink.
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
