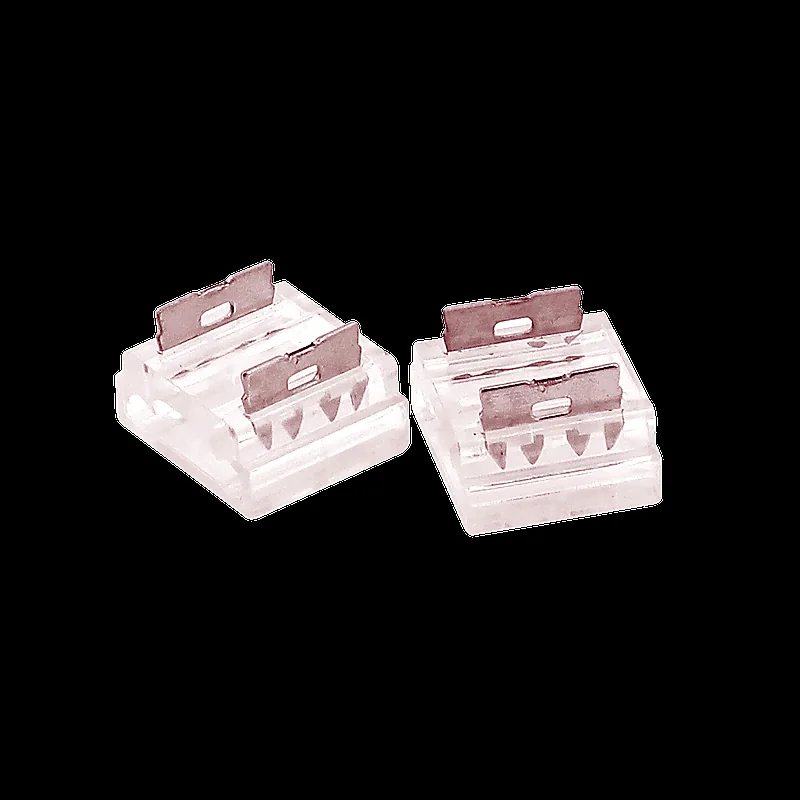

PLEX-MICRO Cable Connector Single IP54 500mm Tail White Pack of 5 Domus Lighting
Domus Lighting PLEX-MICRO Cable Connector Single features Connector pulling force: 4.64kgf, Available in 500mm to 2m tails and strip-to-strip, Includes L-shaped…
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED strip connectors, COB strip connectors, solderless LED connectors, LED strip joiners
Technical Specifications
- Connector pulling force: 4.64kgf
- Compatible with IP54 COB strips including single colour, RGB, RGBTW, TW & Micro strips
- Available in 500mm to 2m tails and strip-to-strip connectors
- Includes L-shaped and flexible strip-to-strip connectors for single colour COB strips
- No soldering required; installation with pliers only
- Dimensions (H x L x W): 10mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Secure and reliable connection with a pulling force of 4.64kgf
- Quick and easy to connect without soldering
- Requires only a pair of pliers for installation
- Enables cutting and joining of strips to custom lengths on site
- Connectors fit inside supplied profiles
- Designed for continuous light with no hotspots
Professional Installation Requirements
- Installation can be performed by a qualified electrician or trained installer using pliers; no soldering skills required.
Applications
- Installation of IP54 COB LED strips
- Connecting single colour COB strips, RGB, RGBTW, TW & Micro strips
- Custom length LED strip lighting setups
- Indoor and outdoor LED lighting projects requiring secure connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces waste by allowing custom length cutting and joining of LED strips
- No soldering required, minimizing use of additional materials and chemicals
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The PLEX-MICRO Live Cable Connector 5 Pack is available now for immediate purchase. Ideal for quick and reliable LED strip lighting installations in residential and commercial applications.
