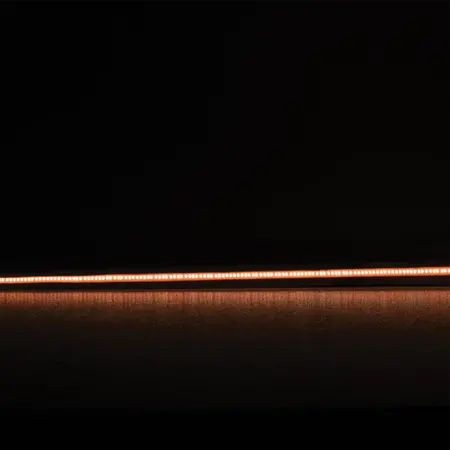

Plex-Micro COB LED Strip 8W/m 24V IP54 2700K Per Metre Domus
Domus Plex-Micro COB LED Strip, 8W/m, 24V DC, IP54, CRI90, 2700K, sold per metre. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Plex-Micro LED Tape, COB LED Strip Light, 24V LED Strip, Extra Warm White LED Strip
- Input Voltage: 24V DC
- Power Consumption: 8W per metre
- Colour Temperature: 2700K extra warm white
- Light Source: COB LED
- Luminous Output: 540 lm/m
- Colour Rendering Index: CRI ≥90
- Beam Angle: 180°
- LED Density: 480 LEDs/m
- Wiring: Parallel
- Ingress Protection: IP54
- Cutting Increment: 50mm
- Maximum Continuous Run: 5m with one-end feed; 10m with two-end feed
- Dimming: Yes, with suitable dimmer and compatible 24V driver
- Required Driver: 24V DC constant-voltage LED driver
- Installation Requirement: Install on an aluminium heat sink
- Dimensions (H x L x W): 2.8mm x 1000mm x 5mm
- Weight: 0.1 kg
- Dotless COB LED appearance for continuous linear illumination
- Micro-width 5mm strip for confined installation spaces
- 2700K extra warm white light colour
- High colour rendering with CRI ≥90
- IP54 protection for indoor applications including suitable wet-area installations
- Cuttable at 50mm increments
- Dimmable with compatible control equipment
- Supplied and priced per metre
- Installation should be performed by a licensed electrician, particularly where the 24V driver connects to mains supply. Use a correctly sized 24V DC constant-voltage LED driver, install the strip on an aluminium heat sink as specified by Domus, and follow applicable Australian wiring and luminaire requirements.
- Under-cabinet and kitchen lighting
- Bathroom, laundry and wet-area accent lighting in suitable protected locations
- Wardrobe and joinery illumination
- Retail display and hospitality lighting
- Architectural cove and feature lighting
- Indoor linear lighting where a 5mm-wide strip is required
- AS/NZS 60598.1: General requirements for luminaires, applicable when the strip is incorporated into a complete luminaire or lighting assembly
- AS/NZS 60598.2.1: Particular requirements for fixed general-purpose luminaires, applicable to the completed fixed lighting installation
- AS/NZS 61347.2.13: Particular requirements for electronic controlgear for LED modules, applicable to the compatible 24V LED driver
- Low-voltage LED technology provides efficient lighting with an 8W/m power requirement
- COB LED construction can provide a long service life when correctly heat-managed, reducing replacement waste
- Cut-to-length 50mm sections can help minimise excess material during installation
- Aluminium heat-sink installation supports thermal management and product longevity
Domus Lighting warranty: 3-year replacement warranty for residential COB LED Strip products, extended to a total of 5 years when used with Domus drivers; commercial warranty is 12 months, extended to a total of 2 years when used with Domus drivers. Warranty eligibility requires installation by a licensed electrician and installation on an aluminium heat sink in accordance with Domus guidelines.
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
