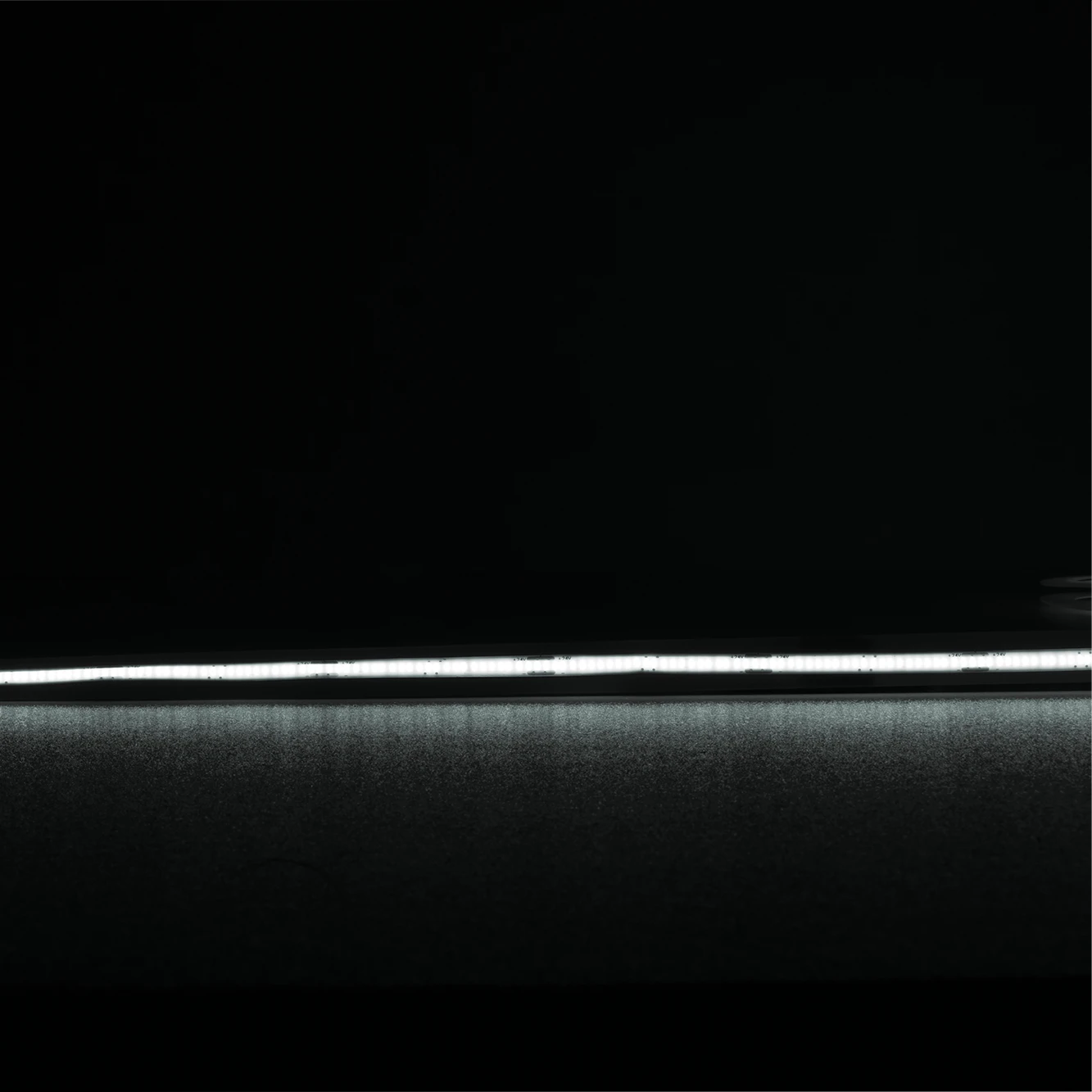

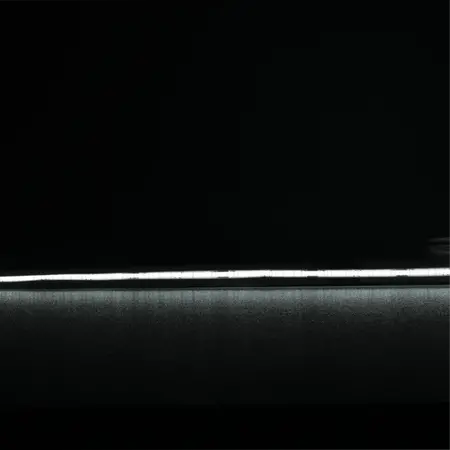

Plex-Micro COB LED Strip 8W/m 24V IP54 5000K Per Metre Domus
Domus Plex-Micro COB LED Strip, 8W/m, 24V DC, IP54, CRI90, 480 LED/m, 5000K, sold per metre. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Plex-Micro LED Strip, COB LED Tape, Micro-Width LED Strip, 24V LED Strip Light
- Input Voltage: 24V DC
- Wattage: 8W per metre
- Colour Temperature: 5000K
- Light Output: 720 lm per metre
- Colour Rendering Index: CRI ≥90
- Light Source: COB LED
- LED Density: 480 LEDs per metre; official datasheet also lists 560 LEDs per metre
- Beam Angle: 180°
- IP Rating: IP54
- Cutting Increment: 50mm
- Wiring: Parallel
- Operating Temperature: -20°C to 50°C
- Maximum Continuous Run: 5m with one-end feed; 10m with feeds at both ends
- Dimmable: Yes, with a suitable dimmer
- Required Driver: 24V DC constant-voltage LED driver
- Sold As: Per metre
- Dimensions (H x L x W): 2.8mm x 1000mm x 5mm
- Weight: 0.1 kg
- Micro-width 5mm strip for compact installation spaces
- COB LED technology provides a smooth, dotless linear appearance
- High CRI90 output for improved colour rendering
- 5000K white light with approximately 720 lm/m output
- IP54 protection suitable for indoor areas, including suitable wet-area applications
- 50mm cut sections for flexible installation lengths
- Dimmable with compatible equipment
- Requires installation on an aluminium heat sink for thermal management and warranty validity
- Optional fast-fix and L-joint connectors are available
- Installation should be completed by a licensed electrician where connection to mains-powered equipment or the 24V LED driver is involved. Use a compatible 24V DC constant-voltage driver, install the strip on an aluminium heat sink, and follow AS/NZS 3000 requirements. Domus specifies that omitting the aluminium heat sink voids the product warranty.
- Kitchen cabinet and joinery lighting
- Bathroom and laundry highlighting
- Bar and restaurant feature lighting
- Retail and commercial display lighting
- Architectural coves and linear lighting details
- Indoor accent and task lighting in compact spaces
- AS/NZS 3000:2018 Electrical Installations applies to the associated electrical installation and driver connection
- AS/NZS 60598.1 and relevant AS/NZS 60598 series requirements may apply to the completed LED luminaire or lighting assembly; no specific product certification was stated by Domus
- Low operating consumption of 8W per metre supports energy-efficient linear lighting
- 24V DC operation can reduce resistive losses and heat compared with higher-current low-voltage arrangements when correctly designed
- Aluminium heat-sink installation improves thermal management and may extend service life, reducing replacement waste
- LED lighting generally provides longer service life and lower energy use than comparable conventional linear light sources
Domus warranty: residential COB LED strips receive a 3-year replacement warranty, extending to 5 years when used with Domus drivers. Commercial applications receive a 12-month replacement warranty, extending to 2 years when used with Domus drivers. Warranty eligibility requires licensed installation, adherence to installation guidelines and aluminium heat-sink installation.
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
