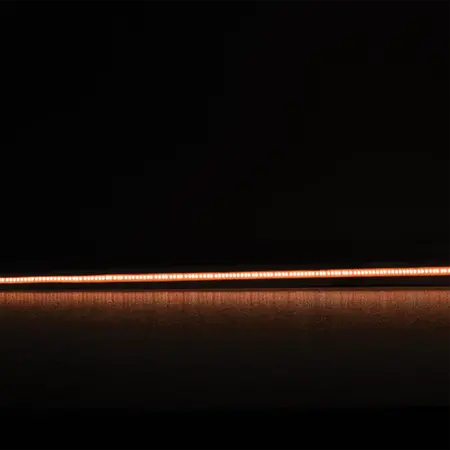

Plex-Micro COB LED Strip 8W/m 24V IP54 CRI90 2700K 50m Roll Domus
Domus Plex-Micro COB LED Strip, 8W/m, 24V DC, IP54, CRI90, 480 LED/m, 2700K, 50m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Micro-width COB LED strip, 24V LED tape, dotless LED strip, architectural LED strip lighting
- Product Type: Micro-width COB LED strip
- Roll Length: 50 metres
- Wattage: 8W per metre
- Input Voltage: 24V DC
- Light Source: COB LED
- Colour Temperature: 2700K extra warm white
- Lumens: 540lm per metre
- Colour Rendering Index: CRI ≥90
- LED Density: 480 LEDs per metre
- Beam Angle: 180°
- IP Rating: IP54
- Cutting Increment: 50mm
- Wiring: Parallel
- Dimming: Yes, with suitable dimmer
- Maximum Continuous Run: 5m with single-end feed or 10m with feeds at both ends
- Required Accessory: 24V DC constant-voltage LED driver
- Installation Requirement: Install on an aluminium heat sink
- Strip Width: 5mm
- Strip Height: 2.8mm
- Dimensions (H x L x W): 2.8mm x 50000mm x 5mm
- Weight: 1.8 kg
- COB technology provides smooth, dotless linear illumination
- Ultra-narrow 5mm strip for compact installation spaces
- High CRI ≥90 for accurate colour rendering
- 2700K extra warm white light output
- 24V DC operation helps reduce resistive heat over longer runs
- IP54 construction suitable for indoor areas and appropriate wet-area applications when installed correctly
- Dimmable with compatible control equipment
- 50mm cutting increments
- Weldless joint design supports continuity and reliability
- Compatible with suitable Domus fast-fix, L-joint and strip connectors
- Installation should be carried out by a licensed electrician using a compatible 24V DC constant-voltage LED driver, suitable wiring, aluminium heat-sinking and installation practices applicable to extra-low-voltage lighting systems. The strip must not be connected directly to mains voltage.
- Under-cabinet and kitchen lighting
- Bathroom, laundry and vanity feature lighting
- Retail and hospitality display lighting
- Architectural coves, pelmets and shelving
- Bars, restaurants and commercial interiors
- Feature and accent lighting in compact installation spaces
- Relevant complete lighting-system requirements include AS/NZS 60598.1:2017 for general luminaire safety and construction
- AS/NZS 60598.2.23:2021 is relevant to extra-low-voltage lighting systems
- AS/NZS 3000:2018 applies to the electrical installation and wiring of the complete system
- AS 61347.2.13:2018 is relevant to the compatible LED controlgear or driver
- LED technology provides lower operating energy consumption than many conventional lighting sources
- 24V DC operation and approximately 67.5lm/W output support efficient low-voltage lighting design
- Long-life COB LED construction can reduce replacement frequency and material waste
- Aluminium heat-sink installation supports thermal management and extended product service life
- LED lighting contains no mercury and produces no ultraviolet or infrared light output under normal operation
Domus Lighting warranty: residential COB LED strips receive a 3-year replacement warranty, extended to a total 5-year replacement warranty when used with Domus drivers. Commercial applications receive a 12-month replacement warranty, extended to a total 2-year replacement warranty when used with Domus drivers. Warranty eligibility requires licensed-electrician installation, adherence to installation guidelines and installation on an aluminium heat sink.
Available through Domus Lighting and authorised Australian lighting distributors, subject to distributor stock and ordering conditions.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
