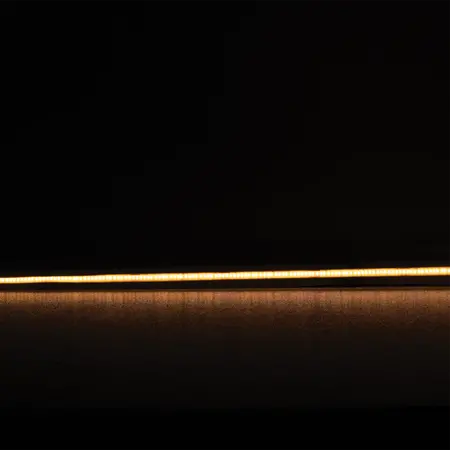

Plex-Micro COB LED Strip 8W/m 24V IP54 CRI90 3000K 50m Roll Domus
Domus Plex-Micro COB LED Strip, 8W/m, 24V DC, IP54, CRI90, 480 LED/m, 3000K, 50m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Plex-Micro LED Tape, COB LED Strip Light, Micro-Width LED Strip, 24V LED Tape
- Light Source: COB LED
- Input Voltage: 24V DC
- Power Consumption: 8W per metre
- Luminous Flux: 640lm per metre at 3000K
- Colour Temperature: 3000K warm white
- Colour Rendering Index: CRI ≥90
- LED Density: 480 LEDs per metre
- Beam Angle: 180°
- IP Rating: IP54
- Wiring: Parallel
- Cutting Increment: 50mm
- Maximum Continuous Run: 5m with single-end feed; 10m with dual-end feed
- Dimming: Yes, with suitable dimmer and compatible driver
- Required Driver: 24V DC constant-voltage LED driver
- Roll Length: 50m
- Dimensions (H x L x W): 2.8mm x 50000mm x 5mm
- Weight: 2.5 kg
- Micro-width 5mm profile for compact installation spaces
- COB technology provides smooth, dotless linear illumination
- High CRI90 output for improved colour rendering
- 24V DC operation helps reduce resistive heat over longer cable runs
- IP54 protection suitable for indoor areas including some wet-area applications
- 50mm cut increments for flexible sizing
- Weldless joint design supports continuity and installation reliability
- Compatible with Domus fast-fix, L-joint and strip connectors
- Must be installed on an aluminium heat sink for thermal management and warranty validity
- Installation should be completed by a licensed electrician, particularly where the 24V DC driver connects to mains power. Use a compatible 24V constant-voltage LED driver, install the strip on an aluminium heat sink, and follow applicable Australian wiring requirements.
- Kitchen under-cabinet and joinery lighting
- Bathroom and laundry feature lighting
- Hospitality and retail display lighting
- Bars, restaurants and commercial interiors
- Architectural coves, niches and linear feature lighting
- Cabinet, shelving and furniture illumination
- AS/NZS 3000:2018 — applicable to the associated electrical installation, mains-connected driver and wiring; manufacturer-specific product certification was not stated.
- Efficient 80lm/W output at 3000K helps provide useful illumination with relatively low power consumption
- 24V operation can reduce resistive losses and heat over suitable longer-run installations
- COB construction and aluminium heat-sink installation support extended product service life, reducing replacement waste
- Compatible aluminium profiles and heat sinks can be reused or recycled at end of service life
Domus COB LED Strips are covered by a 3-year replacement warranty for residential applications, or 12 months for commercial applications. When used with Domus drivers, coverage increases to a total of 5 years residential or 2 years commercial. Installation by a licensed electrician and installation on an aluminium heat sink are required for warranty eligibility.
Available through Domus Lighting and authorised Australian lighting distributors, subject to distributor stock.
