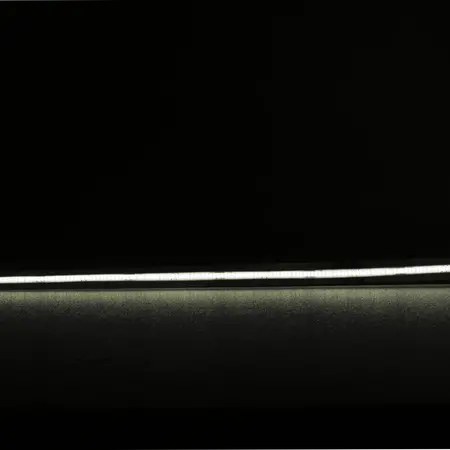

Plex-Micro COB LED Strip 8W/m 24V IP54 CRI90 4000K 50m Roll Domus
Domus Plex-Micro COB LED Strip, 8W/m, 24V DC, IP54, CRI90, 480 LED/m, 4000K, 50m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Plex-Micro LED Strip, Micro-Width COB LED Tape, 24V LED Strip, Dotless COB Strip Lighting
- Product Type: Micro-width COB LED strip
- Roll Length: 50 metres
- Input Voltage: 24V DC
- Power Consumption: 8W per metre
- Colour Temperature: 4000K neutral white
- Lumen Output: 680lm per metre
- Colour Rendering Index: CRI ≥90
- LED Density: 480 LEDs per metre as listed on the product page; current datasheet lists 560 LEDs per metre
- Beam Angle: 180°
- IP Rating: IP54
- Cutting Increment: 50mm
- Wiring: Parallel
- Dimming: Yes, with a suitable dimmer and compatible 24V constant-voltage driver
- Maximum Continuous Run: 5m with single-end feed; 10m with feeds at both ends
- Operating Temperature: -20°C to 50°C
- Required Driver: 24V DC constant-voltage LED driver
- Heat Management: Must be installed on an aluminium heat sink
- Dimensions (H x L x W): 2.8mm x 50000mm x 5mm
- Weight: 1.2 kg
- COB LED technology provides a smooth, dotless linear appearance
- Micro-width 5mm format for confined installation spaces
- High CRI90 rendering for improved colour accuracy
- 24V DC operation helps reduce resistive heat over longer runs
- IP54 construction suitable for indoor applications and some wet-area installations
- 50mm marked cutting increments
- Dimmable with suitable control equipment
- Weldless joint design supports continuity and installation reliability
- Compatible with optional fast-fix, L-joint and strip connectors
- Suitable for kitchens, bathrooms, laundries, hospitality, retail and feature lighting
- Installation should be performed by a licensed electrician in accordance with applicable Australian electrical installation requirements. Use a compatible 24V DC constant-voltage LED driver, install the strip on an aluminium heat sink, observe the 5m single-feed or 10m dual-feed maximum run limits, and follow Domus installation instructions. Incorrect installation or failure to use an aluminium heat sink may void the warranty.
- Kitchen and cabinet lighting
- Bathroom, laundry and wet-area feature lighting
- Hospitality and restaurant highlighting
- Retail display and shelving illumination
- Architectural coves, niches and joinery lighting
- Residential and commercial linear lighting installations
- AS/NZS 3000: Electrical installations, relevant to wiring and installation of the LED driver and lighting system
- AS/NZS 60598.1: General requirements and tests for luminaires, relevant to the complete LED lighting assembly
- AS/NZS 61347.2.13: Particular requirements for LED module controlgear, relevant to the compatible LED driver; product-specific certification is not stated by the manufacturer
- LED technology provides efficient illumination at 8W per metre compared with many conventional linear lighting alternatives
- 24V DC operation can reduce resistive heat losses over suitable longer runs
- Long-life COB LED construction can reduce replacement frequency and material waste
- The 50mm cut points allow lengths to be matched closely to the installation, reducing offcut waste
- Aluminium heat-sink installation supports thermal management and extended product service life
Domus Lighting warranty: residential COB LED strips have a 3-year replacement warranty, extending to 5 years when used with Domus drivers. Commercial applications have a 12-month replacement warranty, extending to 2 years when used with Domus drivers. Warranty eligibility requires installation by a licensed electrician and compliance with Domus installation requirements, including aluminium heat-sink installation.
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
