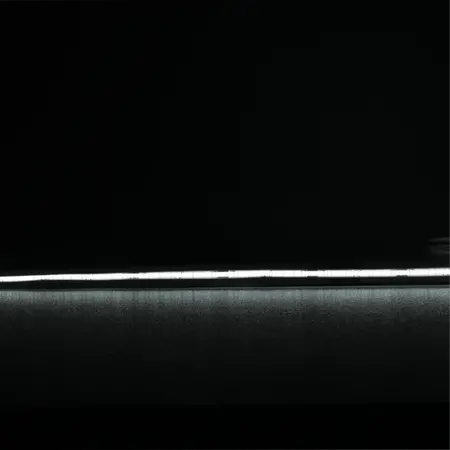

Plex-Micro COB LED Strip 8W/m 24V IP54 CRI90 5000K 50m Roll Domus
Domus Plex-Micro COB LED Strip, 8W/m, 24V DC, IP54, CRI90, 480 LED/m, 5000K, 50m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Plex-Micro LED Strip, Domus COB LED Strip, Micro-Width LED Strip, 24V LED Tape Light
- Input Voltage: 24V DC
- Wattage: 8W per metre
- Light Source: COB LED
- Colour Temperature: 5000K
- Colour Rendering Index: CRI ≥90
- Lumen Output: 720 lm/m at 5000K
- Beam Angle: 180°
- IP Rating: IP54
- LED Density: 480 LEDs/m on product listing; current datasheet states 560 LEDs/m
- Cutting Increment: 50mm
- Wiring: Parallel
- Dimming: Fully dimmable with suitable dimmers
- Required Driver: 24V DC constant-voltage LED driver
- Maximum Continuous Run: 5m with one-end feed or 10m with feeds at both ends
- Operating Temperature: -20°C to 50°C
- Heat Dissipation: Must be installed on an aluminium heat sink
- Roll Length: 50m
- Dimensions (H x L x W): 2.8mm x 50000mm x 5mm
- Weight: 1.2 kg
- Micro-width 5mm COB LED strip for installations with limited space
- Dotless, seamless linear light appearance
- High CRI90 light quality for improved colour rendering
- IP54 protection suitable for indoor areas and wet-area applications where appropriately installed
- 24V DC operation helps reduce resistive heat over longer runs
- 50mm cutting sections for flexible sizing
- Dimmable with compatible control equipment
- Optional fast-fix and L-joint accessories available
- Installation should be completed by a licensed electrician where the 24V driver connects to mains supply. Use a compatible 24V DC constant-voltage driver, install the strip on an aluminium heat sink, and follow the manufacturer's maximum run lengths and installation instructions.
- Kitchen cabinet and benchtop lighting
- Bathroom, laundry and wet-area highlighting
- Bars, restaurants and hospitality interiors
- Retail display and joinery lighting
- Architectural coves, niches and shelving
- Residential and commercial linear accent lighting
- AS/NZS 3000 for the associated electrical installation and wiring
- AS/NZS 60598.1 may apply to the completed luminaire or lighting system
- AS/NZS 60598.2.20 may apply where the completed installation is classified as a lighting chain
- LED technology provides efficient illumination at approximately 80–90 lm/W
- Low-voltage 24V DC operation supports efficient lighting system design
- COB construction and aluminium heat-sink installation can support longer service life and reduce replacement waste
- Dimmable operation can reduce energy consumption when full output is not required
Domus warranty policy: residential COB LED strips receive a 3-year replacement warranty, extending to 5 years when used with Domus drivers. Commercial applications receive a 12-month replacement warranty, extending to 2 years when used with Domus drivers. Installation must follow Domus guidelines and warranty eligibility requires licensed electrical installation.
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
