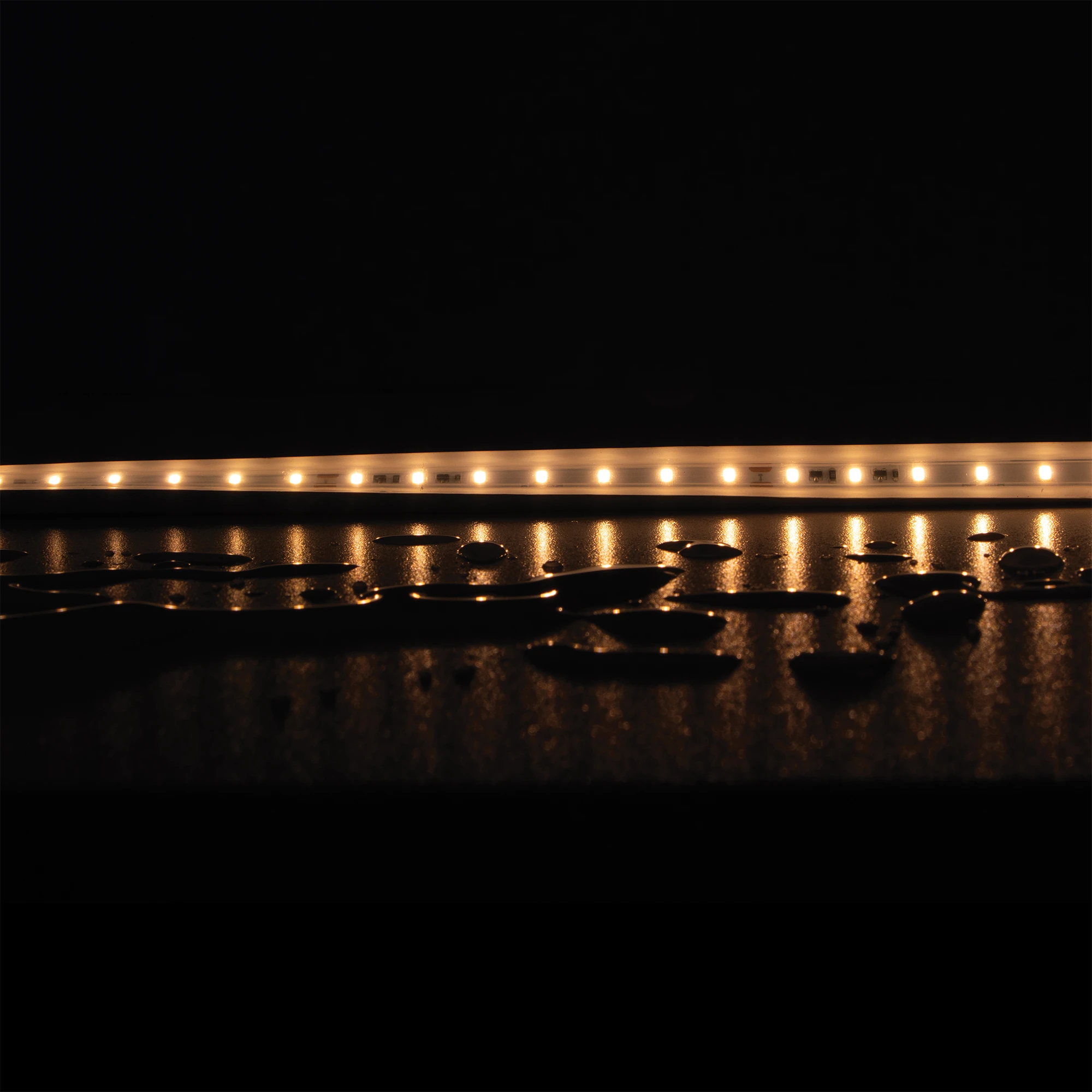

Plex-SMD LED Strip 5W/m 24V IP66 CRI90 3000K 50m Roll Domus
Domus Plex-SMD LED Strip, 5W/m, 24V DC, IP66, CRI90, 70 LED/m, 3000K, 50m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Plex-SMD-5-IP66 LED Strip, 24V SMD LED Tape, IP66 Waterproof LED Strip, High CRI LED Strip
- Power Consumption: 5W per metre; 250W per 50m roll
- Input Voltage: 24V DC
- Colour Temperature: 3000K warm white
- Colour Rendering Index: CRI ≥90
- LED Type: SMD
- LED Density: 70 LEDs per metre
- Luminous Output: Approximately 500lm per metre at 3000K
- Beam Angle: 120°
- Ingress Protection: IP66 with silicone coating
- Dimming: Yes, with a compatible dimmer and driver
- Cutting Increments: 100mm
- Wiring: Parallel
- Maximum Continuous Run: 40m with single-end feed; up to 80m with feeds at both ends
- Required Driver: 24V DC constant-voltage LED driver
- Operating Temperature: -20°C to 50°C
- Heat Management: Must be installed on an aluminium heat sink or suitable aluminium profile
- Dimensions (H x L x W): 5.4mm x 50000mm x 13mm
- Weight: 4.5 kg
- 50m roll for extended linear lighting installations
- High colour rendering with CRI ≥90
- 24V DC operation helps reduce voltage drop and resistive heat over long runs
- IP66 silicone-coated construction for indoor and suitable sheltered outdoor applications
- Dimmable with compatible control equipment
- 70 SMD LEDs per metre for consistent illumination
- Suitable for cutting at 100mm intervals
- Designed for kitchens, bathrooms, laundries, bars, restaurants, gardens, under-eave lighting and commercial applications
- Installation should be completed by a licensed electrician where the 24V driver connects to mains power. Use a compatible 24V DC constant-voltage driver, suitable dimmer and aluminium heat sink or profile. Follow the manufacturer's installation instructions; incorrect heat management may void the warranty.
- Architectural and cove lighting
- Kitchen, bathroom and laundry illumination
- Bar, restaurant and hospitality lighting
- Under-eave and sheltered outdoor lighting
- Retail, commercial and display lighting
- Long-run linear lighting installations
- AS/NZS 3000:2018 – Electrical installations, including selection and installation of electrical equipment and lighting systems
- AS/NZS 60598.1 and AS/NZS 60598.2.1 – relevant luminaire safety requirements when the LED strip is incorporated into a fixed general-purpose luminaire assembly
- Low 5W/m power consumption supports energy-efficient linear lighting designs
- 24V operation and long-run capability can reduce voltage-drop losses and associated wiring losses
- LED technology can reduce energy consumption compared with conventional linear light sources
- The flexible strip can be cut to the required length, helping reduce installation offcuts and material waste
Domus Lighting replacement warranty: 3 years for residential applications and 12 months for commercial applications, subject to licensed installation, correct installation, suitable heat sinking, compatible components and the manufacturer's warranty conditions.
Available through Domus Lighting and authorised Australian lighting distributors, subject to distributor stock and project-order requirements.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
