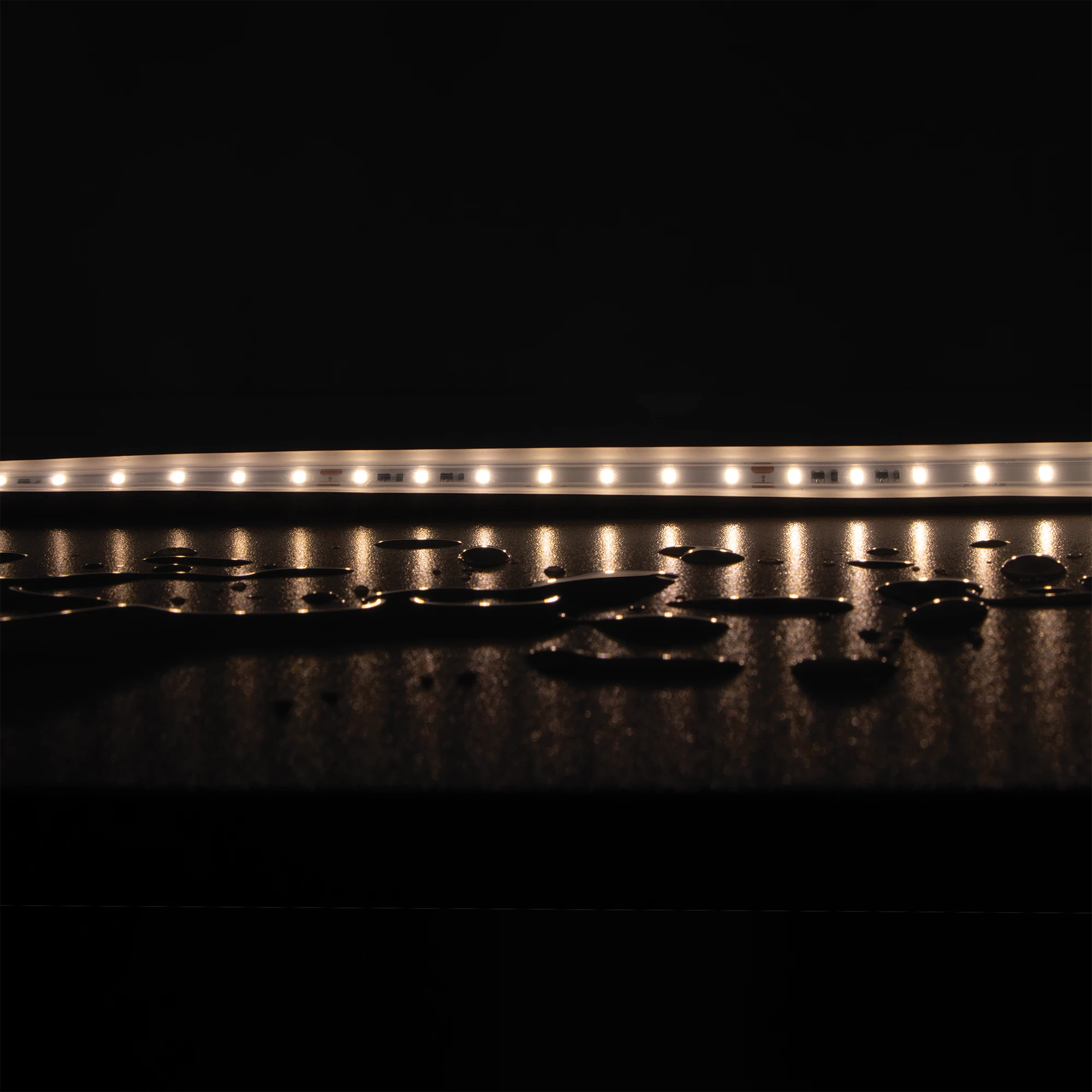

Plex-SMD LED Strip 5W/m 24V IP66 CRI90 4000K 50m Roll Domus
Domus Plex-SMD LED Strip, 5W/m, 24V DC, IP66, CRI90, 70 LED/m, 4000K, 50m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Plex-SMD-5-IP66, Domus 24V LED Strip, IP66 LED Tape Light, 4000K LED Strip
- Power: 5W per metre
- Input Voltage: 24V DC constant voltage
- Colour Temperature: 4000K
- Luminous Output: Approximately 500–550 lm per metre
- Colour Rendering Index: CRI ≥90
- LED Density: 70 SMD LEDs per metre
- Ingress Protection: IP66
- Dimming: Yes, with compatible 24V DC driver or controller
- Maximum Run Length: Up to 40m with a single tail and driver; up to 80m with tails and drivers at both ends
- Cutting Increments: 100mm
- Operating Temperature: -20°C to 50°C
- Beam Angle: 120°
- Roll Length: 50m
- Required Accessory: 24V DC LED driver
- Construction: Silicone-coated flexible LED strip
- Dimensions (H x L x W): 2mm x 50000mm x 10mm
- Weight: 5 kg
- High CRI90 output for accurate colour rendering
- 4000K neutral white light suitable for general and commercial illumination
- IP66 silicone-coated construction for protected indoor and outdoor applications
- 24V DC operation helps reduce voltage drop and resistive heat over long runs
- 70 SMD LEDs per metre for consistent linear illumination
- Dimmable with a compatible constant-voltage LED driver and control system
- 100mm cutting increments for installation flexibility
- Designed for long linear runs with weldless joints for improved continuity
- Installation should be performed by a licensed electrician using a correctly sized 24V DC constant-voltage LED driver. The complete installation must be carried out in accordance with AS/NZS 3000, the manufacturer's installation instructions and the driver's requirements. IP66 protection does not make the strip suitable for submersion.
- Under-cabinet and kitchen lighting
- Bathroom, laundry and sheltered wet-area highlighting
- Bars, restaurants and hospitality interiors
- Garden and under-eave lighting
- Commercial linear lighting installations
- Architectural cove, display and feature lighting
- Long-run residential and commercial illumination
- AS/NZS 3000:2018 — applicable to the electrical installation and wiring of the 24V DC lighting system
- AS/NZS 60598.1:2017 — general luminaire safety requirements may apply to the completed LED lighting assembly; product-specific compliance should be confirmed with the manufacturer or supplier
- Low 5W per metre power consumption can reduce operational energy demand compared with higher-wattage linear lighting products
- 24V DC operation supports efficient long-run lighting with reduced voltage drop and resistive heat
- Silicone-coated IP66 construction can help extend service life in suitable environments and reduce replacement waste
- LED technology provides efficient directional illumination for task, accent and architectural lighting applications
Domus Lighting warranty: 3-year replacement warranty for residential LED strips and 12-month replacement warranty for commercial LED strips, subject to proof of purchase, licensed-electrician installation and compliance with Domus installation guidelines. The current Domus warranty statement is dated 9 January 2026.
Available through Domus Lighting and authorised Australian electrical and lighting distributors, subject to distributor stock levels.
