Plex-SMD LED Strip 5W/m 24V IP66 CRI90 5000K 50m Roll Domus

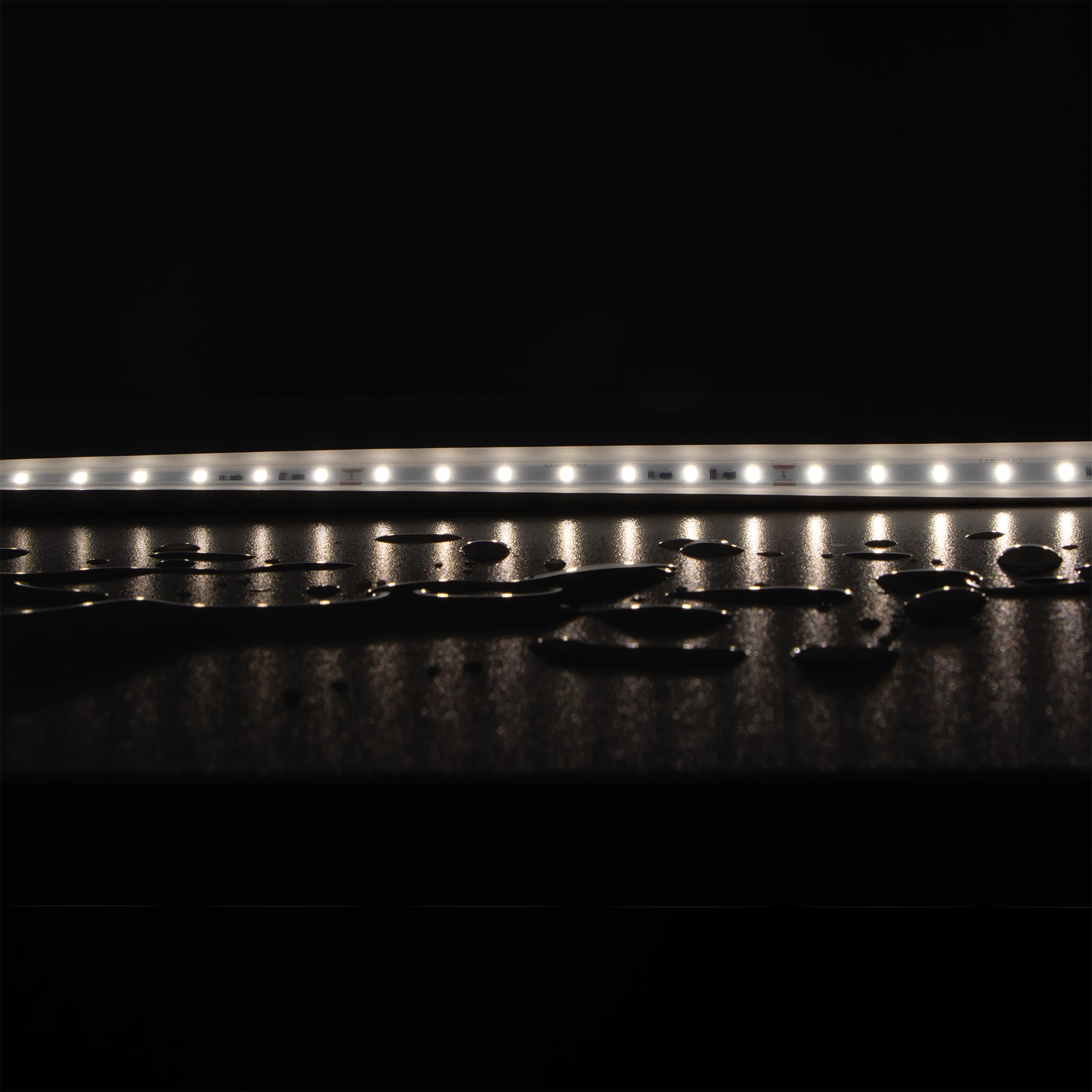

Domus Plex-SMD LED Strip, 5W/m, 24V DC, IP66, CRI90, 70 LED/m, 5000K, 50m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Domus PLEX SMD-5 IP66 LED Strip, 24V High-CRI LED Tape, IP66 Waterproof LED Strip
- Power Consumption: 5W per metre
- Input Voltage: 24V DC
- Light Source: SMD LED
- LED Density: 70 LEDs per metre
- Colour Temperature: 5000K
- Colour Rendering Index: CRI ≥90
- Luminous Output: Approximately 550lm per metre at 5000K
- Ingress Protection: IP66
- Beam Angle: 120°
- Cutting Increment: 100mm
- Maximum Continuous Run: 40m with single-end feed; up to 80m with feed at both ends and suitable system design
- Dimming: Compatible with suitable 24V DC LED dimmers
- Wiring: Parallel constant-voltage configuration
- Required Driver: 24V DC constant-voltage LED driver
- Operating Temperature: -20°C to 50°C
- Dimensions (H x L x W): 5.4mm x 50000mm x 13mm
- Weight: 4.5 kg
- Designed for extra-long linear lighting runs
- Silicone-coated IP66 construction for indoor and suitable outdoor applications
- High CRI90 output for accurate colour rendering
- 24V DC operation helps reduce resistive heat and voltage drop over long runs
- Dimmable with compatible 24V DC control equipment
- 100mm cut sections for installation flexibility
- Suitable for commercial, residential and architectural highlighting applications
- Must be installed on an aluminium heat sink or profile for thermal management
- Installation should be completed by a licensed electrician in accordance with manufacturer instructions and AS/NZS 3000. Use a correctly rated 24V DC constant-voltage LED driver, suitable cabling and compatible dimming equipment. Mount the strip on an aluminium heat sink or profile; the 230V AC driver connection must be performed by a licensed electrician.
- Architectural and feature lighting
- Under-cabinet and kitchen lighting
- Bathroom, laundry and wet-area highlighting
- Bar, restaurant and hospitality interiors
- Garden and under-eave lighting
- Commercial linear lighting installations
- Long-run display, cove and joinery lighting
- AS/NZS 3000: Electrical installations — relevant to installation of the LED strip, driver and associated wiring
- AS/NZS 60598.1: Luminaires — general requirements and tests, where the completed LED lighting system is assessed as a luminaire
- Low 5W/m power consumption supports reduced operating energy compared with higher-wattage strip lighting
- 24V operation and long-run design can reduce resistive heat and voltage losses when correctly installed
- IP66 silicone protection and aluminium heat-sink installation can support longer service life and reduce replacement waste
- LED technology provides efficient directional illumination for task and accent lighting applications
Domus standard warranty for LED strips is a 3-year replacement warranty for residential applications and a 12-month replacement warranty for commercial applications, subject to licensed installation, correct installation to manufacturer guidelines, suitable heat sinking and use within the product IP rating. Warranty terms are subject to Domus Lighting's current warranty statement and Australian Consumer Law.
Available through Domus Lighting and authorised Australian electrical wholesalers, lighting retailers and distributors.
