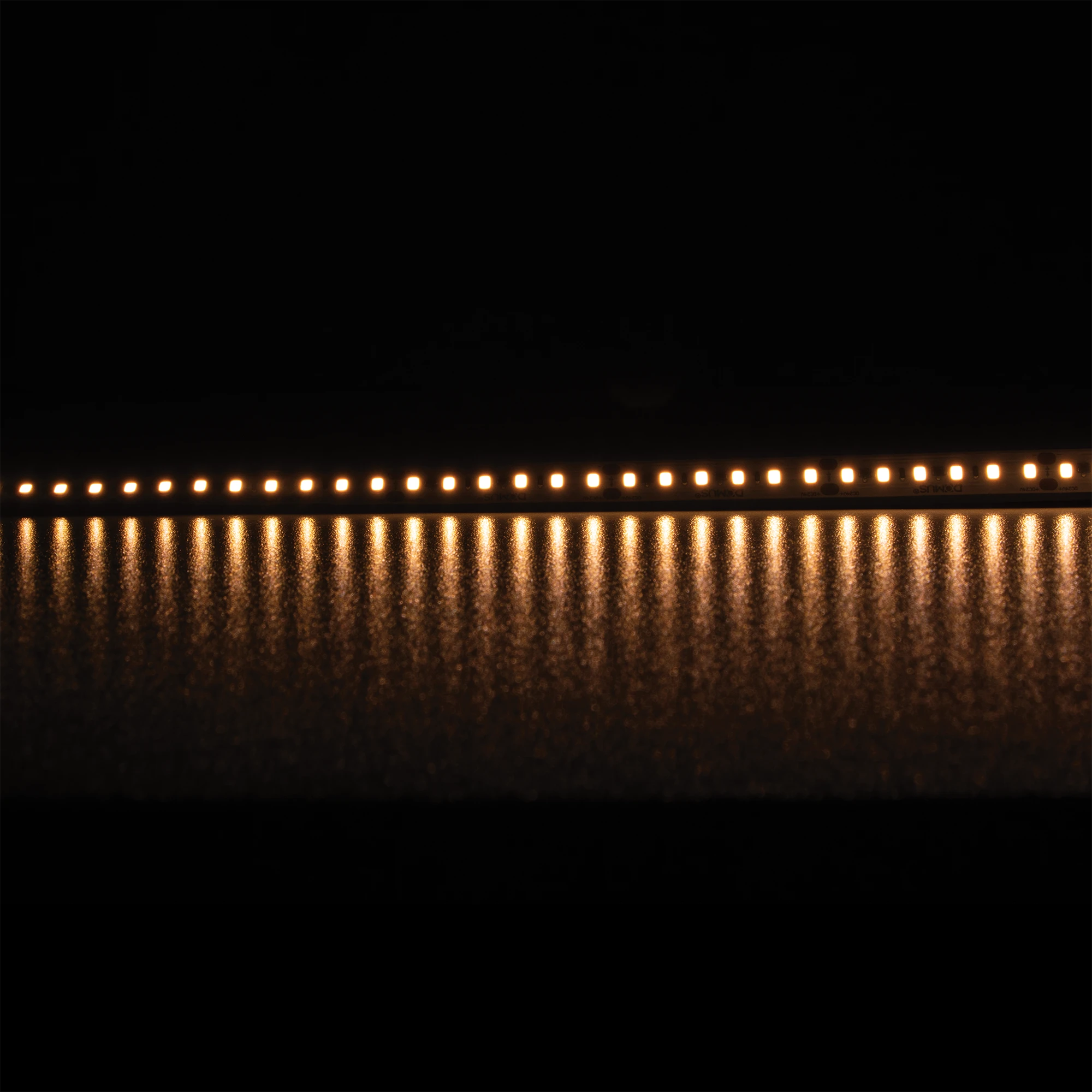

Plex-SMD LED Strip 9W/m 24V IP54 CRI90 3000K 50m Roll Domus
Domus Plex-SMD LED Strip, 9W/m, 24V DC, IP54, CRI90, 120 LED/m, 3000K, 50m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: PLEX-SMD-9-50M, Domus PLEX SMD LED Strip, 24 V LED Tape, Warm White LED Strip
- Item Number: 24195
- Roll Length: 50 metres
- Light Source: SMD LED
- Power Consumption: 9 W/m
- Input Voltage: 24 V DC
- Lumen Output: 765 lm/m at 3000K
- Colour Temperature: 3000K warm white
- Colour Rendering Index: ≥90
- LED Density: 120 LEDs/m
- Beam Angle: 120°
- Wiring: Parallel
- IP Rating: IP54
- Cutting Increment: 25 mm
- Maximum Continuous Run: 20 m with one-end feed; 40 m with feeds at both ends
- Dimming: Yes, with suitable dimmers
- Operating Temperature: -20°C to 50°C
- Required Driver: 24 V DC constant-voltage LED driver
- Installation Requirement: Install on an aluminium heat sink
- Dimensions (H x L x W): 5.4mm x 50000mm x 10mm
- Weight: 2.5 kg
- High-colour-rendering CRI90 light output
- Efficient 9 W/m SMD LED design
- 24 V DC operation helps reduce resistive heat and voltage drop
- 120 LEDs per metre for consistent illumination
- IP54 protection for indoor and damp-area applications
- Dimmable with compatible control equipment
- 25 mm cutting increments
- Weldless joint construction for improved continuity
- Suitable for kitchens, bathrooms, laundries, bars, restaurants and feature lighting
- Designed for long runs up to 20 m from one end or 40 m with feeds at both ends
- Installation should be completed by a licensed electrician or suitably qualified lighting professional. Use a compatible 24 V DC constant-voltage LED driver, install the strip on an aluminium heat sink, and comply with applicable Australian electrical installation requirements. The 50 m roll must be divided into suitable feed lengths rather than operated as one continuous 50 m run.
- Architectural feature lighting
- Kitchen and cabinet lighting
- Bathroom and laundry lighting in suitable IP54 applications
- Bar and restaurant lighting
- Under-eave and sheltered outdoor highlighting
- Commercial linear lighting installations
- Display, joinery and cove lighting
- AS/NZS 60598.1: General requirements and tests for luminaires, applicable to the completed lighting assembly where relevant
- AS/NZS 60598.2.1: Particular requirements for fixed general-purpose luminaires, applicable to the completed low-voltage lighting assembly where relevant
- AS/NZS 61347.2.13: Particular requirements for LED controlgear, applicable to the required 24 V DC LED driver
- High efficacy of approximately 100–110 lm/W can reduce energy consumption compared with lower-efficacy lighting for an equivalent light output
- 24 V DC operation and long-run design can reduce resistive losses when correctly installed and fed
- LED technology has a long service life compared with many conventional light sources, helping reduce replacement waste
- The flexible strip and aluminium heat-sink installation support serviceable linear lighting systems rather than complete fitting replacement
Domus Lighting warranty: 3-year replacement warranty for residential LED strips and 12-month replacement warranty for commercial LED strips, subject to the manufacturer's conditions. Warranty eligibility requires installation by a licensed electrician, adherence to installation guidelines and installation on an aluminium heat sink. Warranty does not cover removal or re-installation costs unless otherwise stated.
Available through Domus Lighting and authorised Australian electrical wholesalers; stock and lead times are subject to distributor confirmation.
