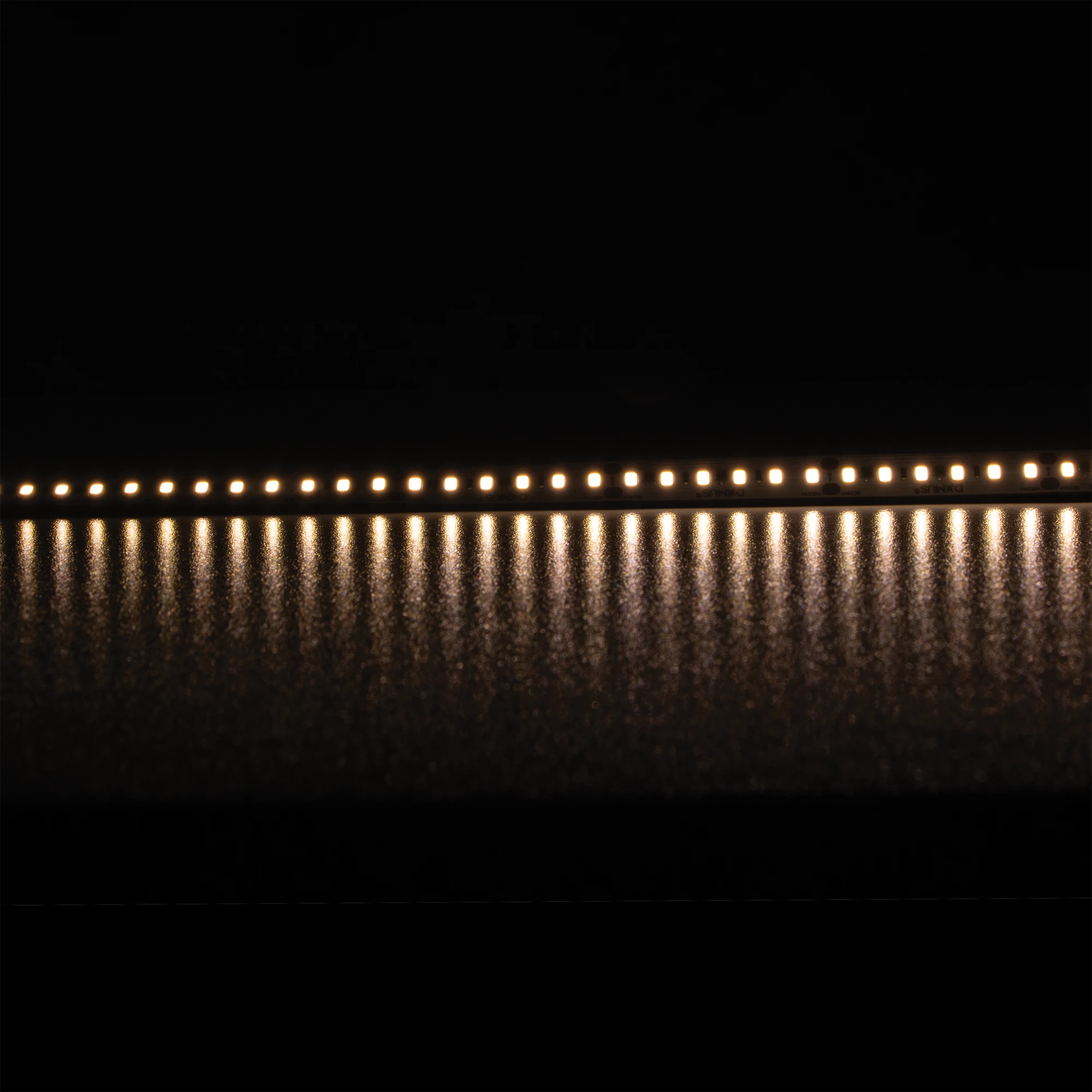

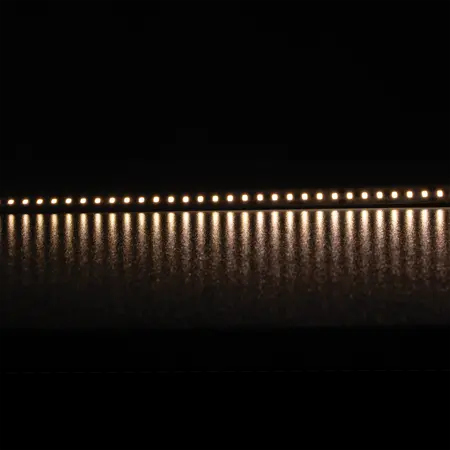

Plex-SMD LED Strip 9W/m 24V IP54 CRI90 4000K 50m Roll Domus
Domus Plex-SMD LED Strip, 9W/m, 24V DC, IP54, CRI90, 120 LED/m, 4000K, 50m roll. Requires 24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Plex-SMD-9-50M LED Strip, 24V LED Tape Light, SMD LED Strip Lighting
Technical Specifications
- Roll Length: 50 metres
- Power Consumption: 9W per metre
- Input Voltage: 24V DC
- Light Output: 810 lumens per metre
- Colour Temperature: 4000K neutral white
- Colour Rendering Index: CRI ≥90
- LED Type: SMD
- LED Density: 120 LEDs per metre
- Ingress Protection: IP54
- Cutting Increment: 25mm
- Dimming: Yes, with compatible controller or dimmable driver
- Maximum Single-Feed Run: 20 metres
- Maximum Dual-Feed Run: 40 metres
- Driver Requirement: 24V DC constant-voltage LED driver, sold separately
- Dimensions (H x L x W): 3mm x 50000mm x 13mm
- Weight: 4.5 kg
Key Features
- High colour rendering with CRI ≥90
- 24V DC operation reduces voltage drop and resistive heat over long runs
- Designed for long continuous runs up to 20 metres from one end or 40 metres with dual-end feeding
- IP54 protection for indoor and damp-area applications
- Dimmable with compatible control equipment
- Weldless joint construction supports continuity and reliability
- 25mm cuttable sections for installation flexibility
- 120 SMD LEDs per metre
- Available in a 50 metre roll for large linear lighting installations
Professional Installation Requirements
- Install on a suitable aluminium heat-dissipating surface and connect through a correctly sized 24V DC constant-voltage LED driver. Any 240V AC mains wiring to the driver should be performed by a licensed electrician in accordance with applicable Australian wiring requirements.
Applications
- Kitchen under-cabinet and joinery lighting
- Bathroom and laundry feature lighting
- Bars, restaurants and hospitality interiors
- Retail displays and commercial interiors
- Cove, niche and architectural accent lighting
- Long-run linear lighting installations
Standards & Compliance
- AS/NZS 3000:2018 for installation of associated low-voltage and extra-low-voltage lighting wiring and controlgear
Environmental Benefits
- 100–110 lumens per watt efficacy supports lower energy consumption than many conventional lighting sources
- 24V DC operation reduces resistive heat and can improve efficiency across longer runs
- LED technology produces less heat than traditional halogen lighting
- Long 50 metre roll format can reduce packaging and connection waste compared with multiple shorter rolls
Warranty Information
Domus Lighting warranty: 3-year replacement warranty for residential LED strips and 12-month replacement warranty for commercial LED strips, subject to installation by a licensed electrician, correct installation and the manufacturer's warranty conditions.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
