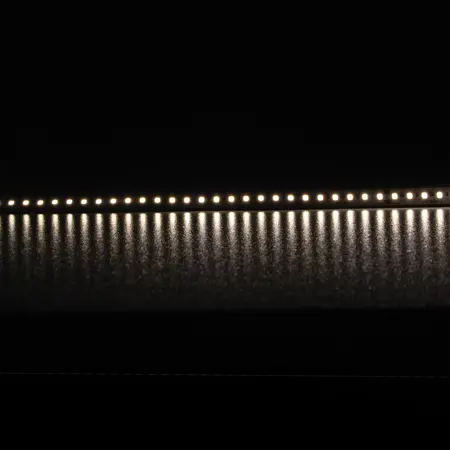

Plex-SMD LED Strip 9W/m 24V IP54 CRI90 5000K 50m Roll Domus
Domus Plex-SMD LED Strip, 9W/m, 24V DC, IP54, CRI90, 120 LED/m, 5000K, 50m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: 24V LED Strip Light, SMD LED Tape, High-CRI LED Strip, PLEX-SMD-9-50M
- Power Consumption: 9W per metre
- Input Voltage: 24V DC
- Colour Temperature: 5000K
- Colour Rendering Index: CRI ≥90
- Luminous Flux: 855 lumens per metre
- LED Density: 120 SMD LEDs per metre
- Ingress Protection: IP54
- Cutting Increment: 50mm
- Dimming: Yes
- Maximum Single-Feed Run: 20m
- Maximum Dual-Feed Run: 40m
- Total Power for 50m Roll: 450W
- Approximate Current for 50m Roll: 18.75A at 24V DC
- Required Accessory: Compatible 24V DC LED driver
- Dimensions (H x L x W): 300mm x 300mm x 10mm
- Weight: 2.5 kg
- High-colour-rendering CRI90 light quality
- 5000K neutral daylight colour temperature
- 24V DC operation reduces voltage drop and resistive heat on long runs
- IP54 protection for indoor and damp-area applications
- 120 SMD LEDs per metre for consistent linear illumination
- Dimmable when paired with a compatible 24V DC dimming system
- Weldless joint construction supports continuity and reliability
- Suitable for long-run applications up to 20m from a single feed or 40m with dual feeding
- Supplied as a 50m roll
- Installation and connection to the 240V supply should be carried out by a licensed electrician. Use a compatible 24V DC LED driver sized for the connected strip length and install the strip and driver in accordance with AS/NZS 3000, manufacturer instructions and the product's IP rating.
- Kitchen under-cabinet lighting
- Bathroom and laundry feature lighting in suitable damp-area locations
- Bars, restaurants and hospitality interiors
- Retail displays and shelving
- Architectural cove and concealed lighting
- Commercial and residential linear accent lighting
- AS/NZS 3000:2018 Electrical installations — applicable to the associated electrical installation and wiring
- AS/NZS 61347.2.13 — relevant to the separate LED controlgear or driver used with the strip
- 100–110 lumens per watt efficacy supports lower energy consumption than many conventional linear light sources
- 24V DC operation and long-run capability can reduce distribution losses when correctly designed
- LED technology provides a long service life, reducing replacement frequency and material waste
- The strip is dimmable, allowing lighting output and energy use to be reduced when full brightness is not required
Domus Lighting warranty: 3-year replacement warranty for residential LED strips and 12-month replacement warranty for commercial LED strips, subject to proof of purchase, compliant installation and installation by a licensed electrician. Australian Consumer Law rights continue to apply.
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors; 50m rolls may be supplied as made-to-order items depending on distributor stock.
