Plex-SMD LED Strip 9W/m 24V IP54 CRI90 5000K Per Metre Domus

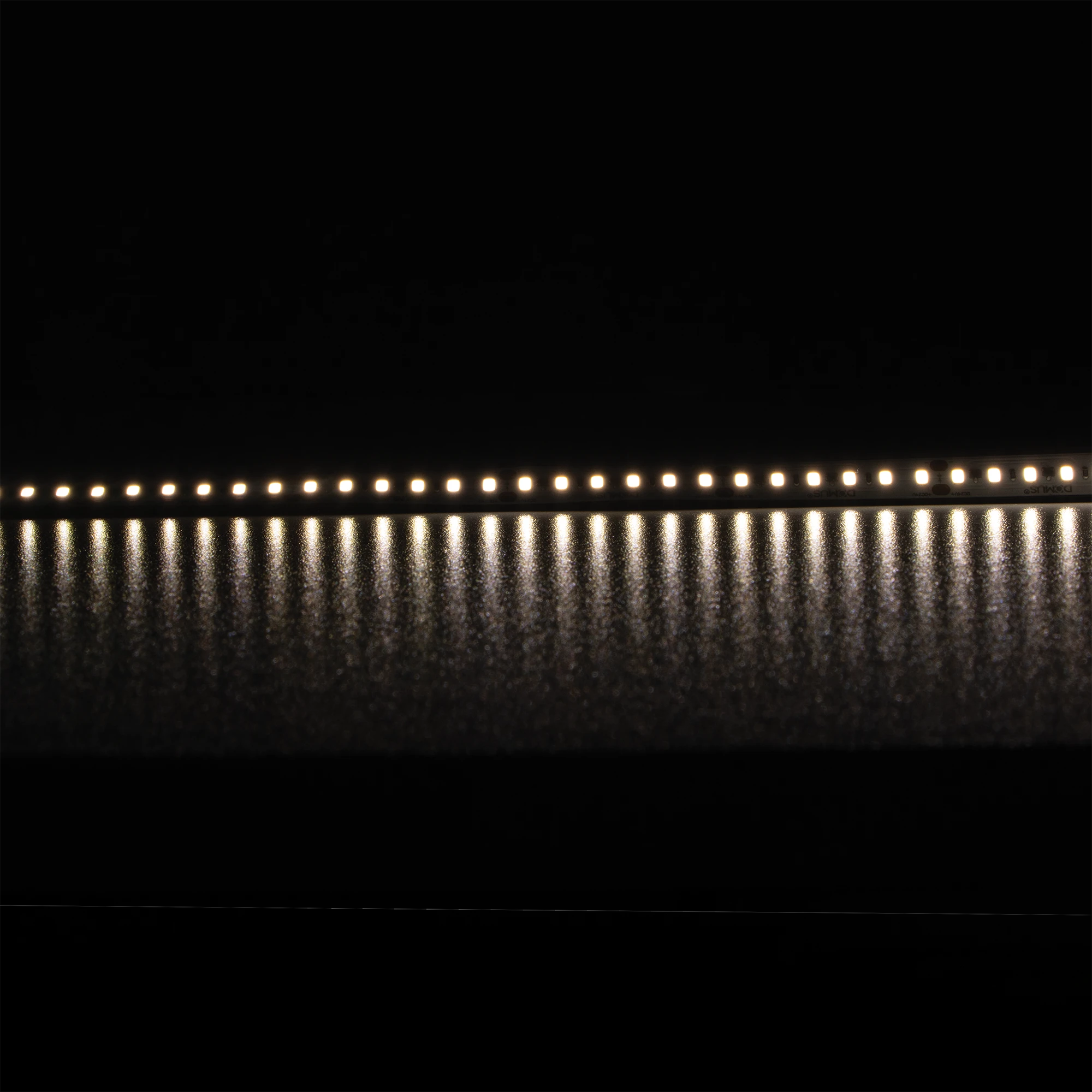

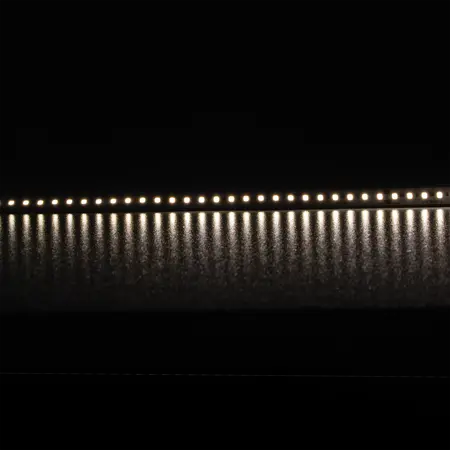

Domus Plex-SMD LED Strip, 9W/m, 24V DC, IP54, CRI90, 120 LED/m, 5000K, sold per metre. Requires 24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus PLEX-SMD-9 LED Tape, 24V LED Strip Light, SMD LED Tape, IP54 LED Strip
Technical Specifications
- Power Consumption: 9W per metre
- Input Voltage: 24V DC
- Colour Temperature: 5000K
- Light Output: 855 lumens per metre
- Colour Rendering Index: CRI ≥90
- LED Technology: SMD
- LED Density: 120 LEDs per metre
- Ingress Protection: IP54
- Cutting Increment: 25mm
- Maximum Run: 20m with single driver feed; 40m with feeds at both ends
- Dimming: Yes
- Supply Format: Sold per metre
- Required Accessory: 24V DC constant-voltage LED driver
- Dimensions (H x L x W): 2mm x 1000mm x 10mm
- Weight: 0.1 kg
Key Features
- High colour rendering with CRI ≥90
- 5000K cool white light output
- 24V DC operation helps reduce voltage drop and resistive heat over longer runs
- IP54-rated construction for indoor and damp-area applications
- Dimmable with compatible control equipment
- Weldless joint construction supports continuity and reliability
- Suitable for cutting into 25mm sections
- Available in runs up to 20m from a single driver feed
Professional Installation Requirements
- Installation should be completed by a licensed electrician, particularly where the 24V DC driver connects to mains power. Use a correctly rated 24V DC constant-voltage driver and install the strip in accordance with the manufacturer's instructions and applicable wiring requirements.
Applications
- Kitchen under-cabinet and task lighting
- Bathroom and laundry feature lighting
- Bar, restaurant and hospitality lighting
- Display, shelving and joinery illumination
- Architectural and indirect interior lighting
- Commercial linear lighting installations
Standards & Compliance
- AS/NZS 3000: Electrical installations — selection and installation requirements for the connected lighting system
- AS/NZS 60598.1: General requirements for luminaires, where the strip is incorporated into a complete luminaire or lighting assembly
- AS/NZS 61347.2.13: Applicable to compatible LED controlgear or drivers, where specified for the complete installation
Environmental Benefits
- Efficient LED output of approximately 95 lm/W for the 5000K variant helps reduce energy consumption compared with many conventional light sources
- 24V DC design helps reduce resistive losses and voltage drop in longer runs
- Long LED service life can reduce replacement frequency and material waste
- Low-voltage operation supports efficient integration with modern constant-voltage LED drivers
Warranty Information
Domus Lighting warranty policy covers LED strips for 3 years by replacement in residential applications and 12 months by replacement in commercial applications, subject to licensed installation, correct use, installation instructions and other warranty conditions.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
