Plex-SMD LED Strip 9W/m 24V IP67 CRI90 3000K 50m Roll Domus

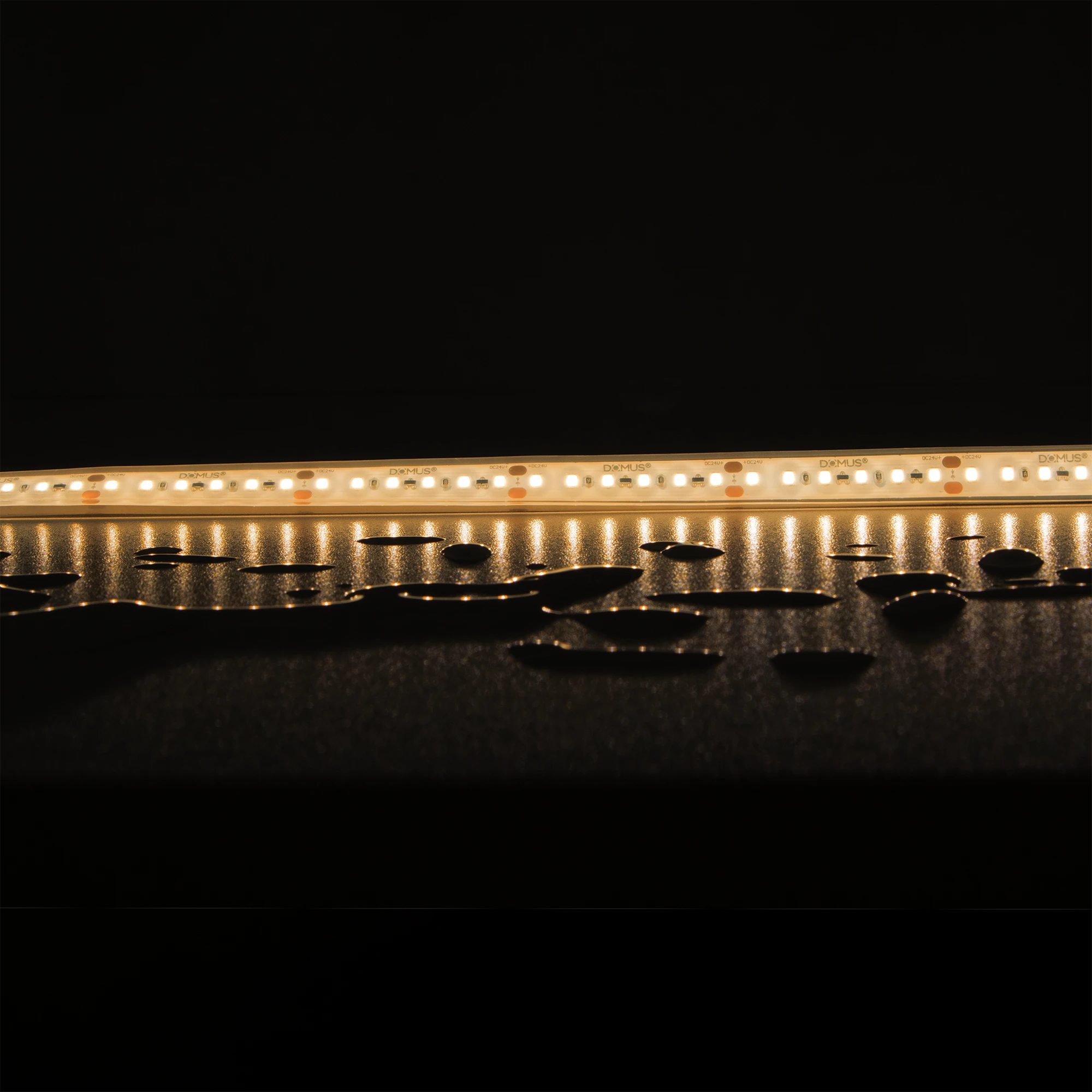

Domus Plex-SMD LED Strip, 9W/m, 24V DC, IP67, CRI90, 120 LED/m, 3000K, 50m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: PLEX-SMD-9-IP67 LED Strip, Domus 24V LED Tape, IP67 SMD LED Strip, Warm White LED Strip
- Light Source: SMD LED
- Power Consumption: 9W per metre
- Input Voltage: 24V DC
- Colour Temperature: 3000K warm white
- Colour Rendering Index: CRI90 or higher
- LED Density: 120 LEDs per metre
- Ingress Protection: IP67
- Beam Angle: 120°
- Luminous Efficacy: 100–110 lm/W
- Luminous Output: Approximately 900–990 lm/m based on published efficacy
- Cutting Increment: 25mm
- Maximum Continuous Run: 20m with single-end feed and driver; up to 40m with feeds at both ends
- Dimming: Compatible with suitable 24V DC dimming equipment
- Driver Requirement: 24V DC constant-voltage LED driver, not included
- Heat Management: Install on an aluminium heat sink
- Roll Length: 50m
- Dimensions (H x L x W): 5.4mm x 50000mm x 13mm
- Weight: 5.0 kg
- Warm white 3000K light colour for residential and hospitality applications
- High CRI90 colour rendering
- IP67 construction for protection against dust and temporary water immersion
- Low-voltage 24V DC operation
- 120 SMD LEDs per metre for even linear illumination
- Designed for extended run lengths with reduced resistive heat
- Cuttable at 25mm intervals
- Dimmable with compatible control equipment
- Suitable for kitchens, bathrooms, laundries, bars, restaurants and indoor feature lighting
- Installation should be performed by a licensed electrician in accordance with the manufacturer's instructions and applicable electrical requirements. Use a correctly rated 24V DC constant-voltage driver, provide aluminium heat sinking along the strip, observe the maximum run length and ensure all IP67 connections remain suitably sealed. Domus warranty conditions require licensed-electrician installation.
- Architectural feature lighting
- Kitchen, bathroom and laundry accent lighting
- Bar, restaurant and hospitality interiors
- Joinery, shelving and cabinet illumination
- Commercial display and retail highlighting
- Cove, pelmet and indirect lighting installations
- AS/NZS 60598.1:2025 may apply to the completed luminaire or lighting assembly; Domus does not publish a product-specific compliance declaration for this LED strip.
- AS/NZS 3000:2018 with applicable amendments applies to the associated electrical installation and wiring; product-specific compliance should be confirmed with the installer or supplier.
- LED technology provides high luminous efficacy at approximately 100–110 lm/W, supporting lower energy use for equivalent decorative lighting output.
- 24V DC operation and extended run capability can reduce resistive losses compared with shorter, higher-current strip runs.
- The strip is designed for aluminium heat-sink installation, supporting heat management and potentially extending service life when correctly installed.
- Long 50m roll format can reduce packaging and joint waste compared with supplying multiple shorter rolls.
Domus warranty policy lists LED strips under a 3-year replacement warranty for residential applications and a 12-month replacement warranty for commercial applications, subject to proof of purchase, licensed-electrician installation and compliance with installation guidelines. Installation on an aluminium heat sink is required to preserve warranty eligibility. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2026/01/Warranty-Statement-Revised-09-01-2026.pdf))
Available through Domus Lighting and authorised Australian electrical wholesalers, lighting retailers and distributors. Confirm current availability and whether the 50m roll is made to order.
