Plex-SMD LED Strip 9W/m 24V IP67 CRI90 4000K 50m Roll Domus

BRAND: Domus Lighting
SKU: 24203
$1,965.60 List price: $2,620.90
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access

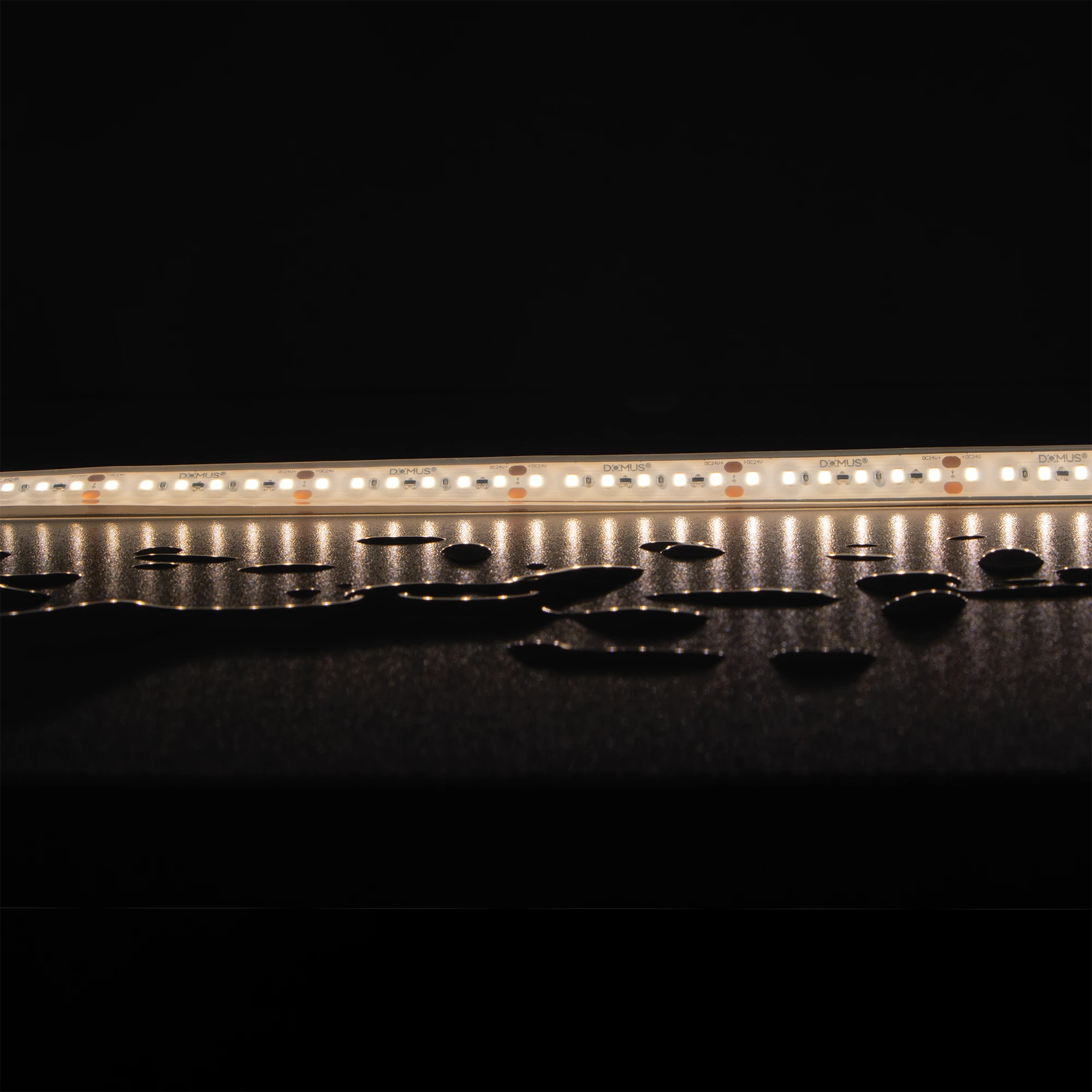

Domus Plex-SMD LED Strip, 9W/m, 24V DC, IP67, CRI90, 120 LED/m, 4000K, 50m roll. Requires 24V DC LED driver.

Alternatively Known As: Plex SMD-9 IP67 LED Strip, 24V Waterproof LED Tape, Neutral White LED Strip, Domus SKU 24200

Technical Specifications
  • Power Consumption: 9W per metre
  • Input Voltage: 24V DC
  • Light Source: SMD LED
  • Colour Temperature: 4000K neutral white
  • Colour Rendering Index: CRI ≥90
  • LED Density: 120 LEDs per metre
  • Lumen Output: 650–725 lm/m
  • Beam Angle: 120°
  • IP Rating: IP67
  • Wiring: Parallel
  • Cutting Increment: 25mm
  • Maximum Continuous Run: 20m with single-end driver feed; up to 40m with feeds at both ends
  • Dimming: Yes, with suitable dimmer and compatible driver
  • Driver Requirement: 24V DC constant-voltage LED driver
  • Roll Length: 50m
  • Dimensions (H x L x W): 5.4mm x 50000mm x 13mm
  • Weight: 6 kg
Key Features
  • IP67-rated silicone-protected construction for damp and waterproof applications
  • High CRI90 output for improved colour rendering
  • 4000K neutral white colour temperature
  • 120 SMD LEDs per metre for consistent linear illumination
  • 24V DC operation reduces resistive losses on longer runs
  • Dimmable with suitable control equipment
  • 25mm cut sections for flexible installation lengths
  • Install on an aluminium heat sink for thermal management and warranty compliance
  • Suitable for kitchens, bathrooms, laundries, bars, restaurants and indoor highlighting applications
Professional Installation Requirements
  • Installation should be performed by a licensed electrician. Use a correctly sized 24V DC constant-voltage LED driver, install the strip on an aluminium heat sink, and follow the manufacturer's wiring, IP-rating and maximum-run requirements.
Applications
  • Architectural and feature lighting
  • Kitchen, bathroom and laundry illumination
  • Under-cabinet and joinery lighting
  • Commercial hospitality and retail highlighting
  • Bars, restaurants and display areas
  • Indoor wet-area lighting where the complete installation is suitably protected
Standards & Compliance
  • AS/NZS 60598.1:2025 – Luminaires, Part 1: General requirements and tests, applicable to the complete lighting assembly
  • AS/NZS 60598.2.23:2021 – Particular requirements for extra-low-voltage lighting systems for ELV light sources, applicable to the complete installation
  • AS/NZS 3000:2018 – Electrical installations, applicable to wiring and installation of the lighting system
Environmental Benefits
  • LED technology provides approximately 100–110 lumens per watt, supporting lower energy consumption than many conventional light sources
  • 24V DC operation can reduce resistive heat and energy losses on longer cable runs
  • Cutting in 25mm sections can reduce material waste when fitting lighting to exact lengths
  • Long-run design can reduce the number of drivers and connection points required in suitable installations
Warranty Information

Domus Lighting warranty: 3-year replacement warranty for residential LED strips and 12-month replacement warranty for commercial LED strips, subject to proof of purchase, licensed-electrician installation, installation in accordance with Domus guidelines and other warranty conditions.

Available Now

Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.

Lighting Requirement Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
