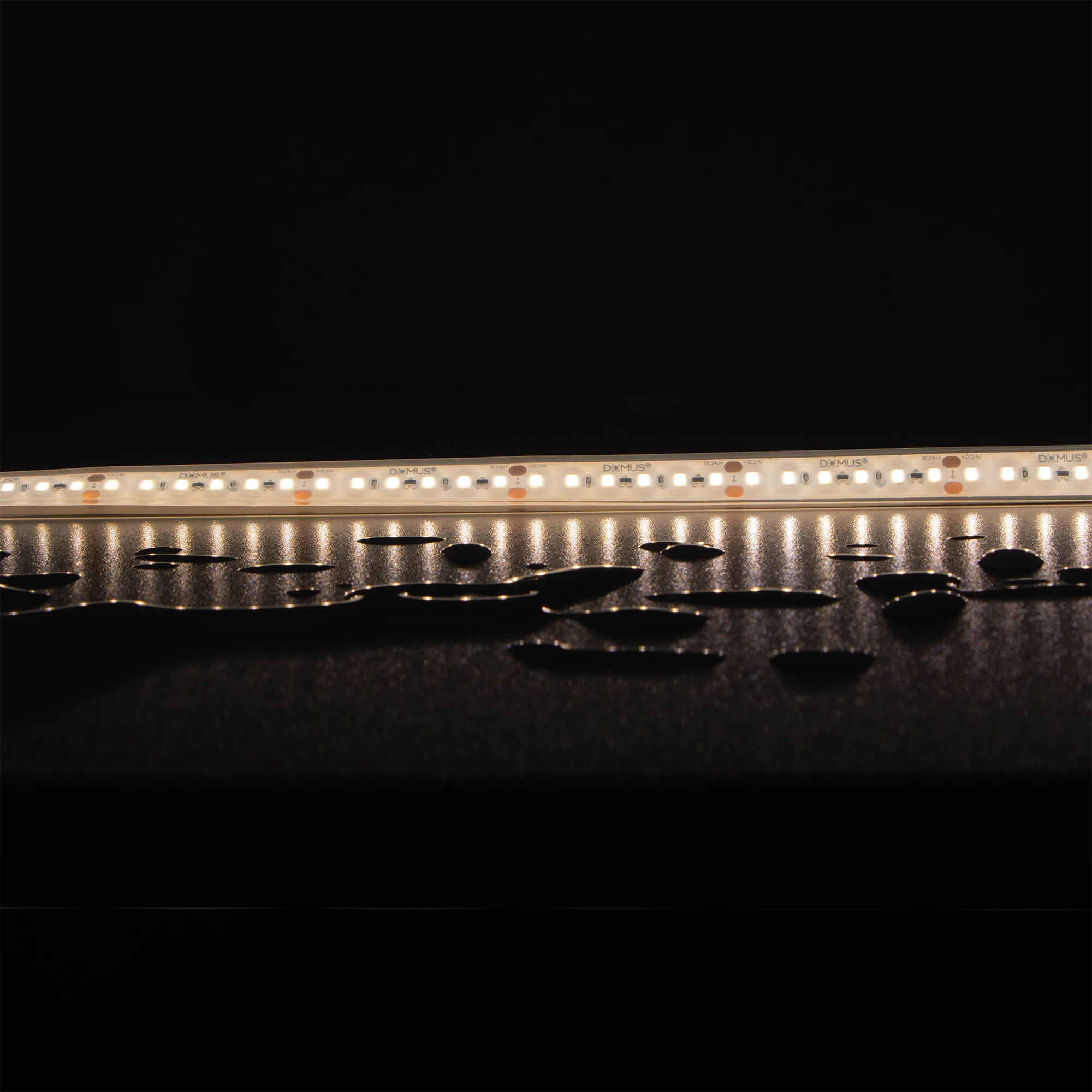

Plex-SMD LED Strip 9W/m 24V IP67 CRI90 4000K Per Metre Domus
Domus Plex-SMD LED Strip, 9W/m, 24V DC, IP67, CRI90, 120 LED/m, 4000K, sold per metre. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: PLEX-SMD-9-IP67, Domus 24V LED Strip, IP67 SMD LED Tape, 4000K Neutral White LED Strip
- Power: 9W per metre
- Input Voltage: 24V DC
- Colour Temperature: 4000K
- Colour Rendering Index: CRI90
- LED Type: SMD
- LED Density: 120 LEDs per metre
- Lumen Output: 650-725 lm per metre
- Beam Angle: 120°
- IP Rating: IP67
- Cutting Increments: 25mm
- Maximum Continuous Run: 20m with single tail and driver; up to 40m with power supplied from both ends
- Dimming: Yes, with a compatible dimmer
- Wiring: Parallel
- Required Driver: 24V DC constant-voltage LED driver
- Product Format: Sold per metre
- Dimensions (H x L x W): 5.4mm x 1000mm x 13mm
- Weight: 0.1 kg
- High colour rendering with CRI90 performance
- IP67 protection for suitable wet-area and outdoor applications when correctly installed
- 24V DC operation reduces voltage-drop and resistive heat compared with equivalent 12V strips
- Long-run capability up to 20m with a single tail and compatible driver
- Dimmable with compatible control equipment
- 25mm cut increments for flexible length configuration
- Silicone-coated strip construction for improved moisture protection
- Must be installed on an aluminium heat sink for thermal management and warranty compliance
- Installation should be performed by a licensed electrician. Use a compatible 24V DC constant-voltage LED driver, install the strip on an aluminium heat sink, and complete wiring in accordance with AS/NZS 3000. IP67 connections, joins and cable entries must be suitably sealed for the installation environment.
- Kitchen, bathroom and laundry feature lighting
- Bars, restaurants and hospitality interiors
- Architectural highlighting and concealed linear lighting
- Display, joinery and shelving illumination
- Suitable outdoor or wet-area installations where the complete system, connections and driver are appropriately IP rated
- AS/NZS 3000: Electrical installations — Wiring Rules apply to the connected electrical installation
- AS/NZS 60598.1: General requirements and tests for luminaires should be considered for the complete LED strip and driver installation
- Efficient output of approximately 100-110 lumens per watt helps reduce energy consumption compared with less efficient lighting technologies
- 24V DC operation supports efficient low-voltage lighting system design
- Long-run capability can reduce the number of drivers and connection points required in larger installations
- LED light sources generally have a longer service life than conventional lamps, reducing replacement frequency and waste
Domus warranty: 3-year replacement warranty for residential use and 12-month replacement warranty for commercial use for LED strips. Warranty eligibility requires installation by a licensed electrician, adherence to Domus installation guidelines, use of compatible products and installation on an aluminium heat sink. Warranty terms are subject to Domus Lighting's current warranty statement and Australian Consumer Law.
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
