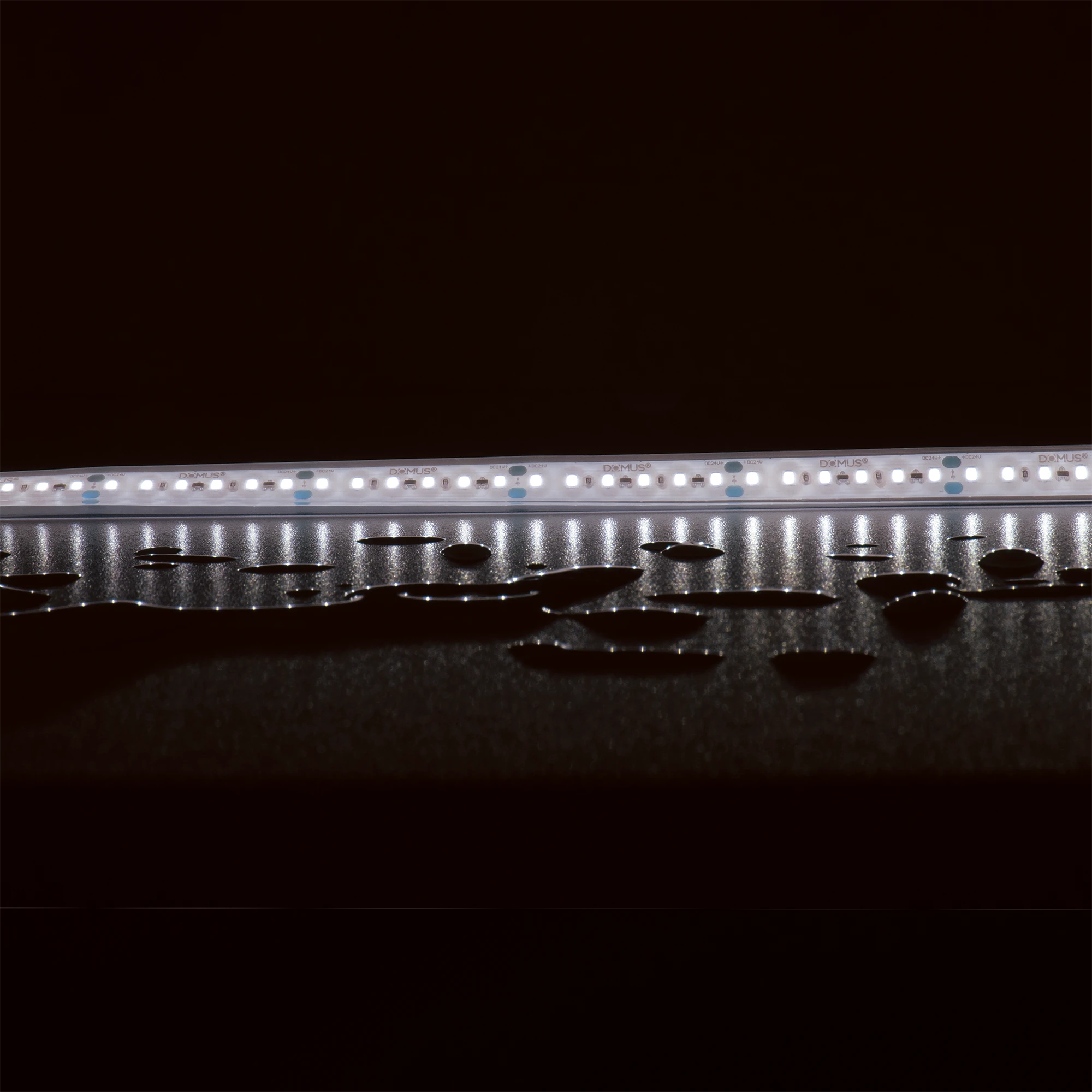

Plex-SMD LED Strip 9W/m 24V IP67 CRI90 5000K 50m Roll Domus
Domus Plex-SMD LED Strip, 9W/m, 24V DC, IP67, CRI90, 120 LED/m, 5000K, 50m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Plex SMD-9 IP67 LED Strip, 24V LED Tape, Waterproof LED Strip Lighting, Domus SKU 24201
- Product Code: 24201
- Light Source: SMD LED
- Power Consumption: 9W per metre
- Input Voltage: 24V DC
- Colour Temperature: 5000K
- Colour Rendering Index: CRI90 or higher
- LED Density: 120 LEDs per metre
- Beam Angle: 120 degrees
- Luminous Efficacy: 100-110 lm/W
- Light Output: Approximately 900-990 lm/m based on stated efficacy
- Ingress Protection: IP67
- Cutting Increment: 25mm
- Maximum Continuous Run: 20m with single-end feed and driver; up to 40m with feeds at both ends
- Wiring: Parallel
- Dimming: Yes, with suitable dimmer
- Required Driver: 24V DC constant-voltage LED driver
- Heat Management: Must be installed on an aluminium heat sink
- Dimensions (H x L x W): 5.4mm x 50000mm x 13mm
- Weight: 3.5 kg
- High colour rendering performance with CRI90 specification
- IP67 protection for waterproof strip-lighting applications
- 24V DC operation supports longer runs with reduced resistive heat
- 120 SMD LEDs per metre for consistent linear illumination
- Dimmable with compatible control equipment
- Can be cut at 25mm intervals
- Suitable for kitchens, bathrooms, laundries, bars, restaurants and indoor highlighting
- Longer weldless joint sections help reduce continuity failure points
- Installation requires a correctly sized 24V DC constant-voltage LED driver and aluminium heat sink. The mains-voltage driver connection should be completed by a licensed electrician, with the installation carried out in accordance with applicable Australian electrical requirements. Seal and protect all cut ends and connections to maintain the intended IP rating.
- Kitchen and bathroom feature lighting
- Laundry and wet-area highlighting
- Bar and restaurant ambient lighting
- Commercial interior highlighting
- Display, joinery and cabinet lighting
- Architectural coves and concealed linear lighting
- Decorative lighting in areas requiring IP67 protection
- AS/NZS 3000:2018 Wiring Rules — relevant to the electrical installation, driver connection and low-voltage wiring
- AS/NZS 60598.1 — general safety requirements potentially applicable to the completed LED lighting assembly; verify the complete system and driver documentation
- LED technology provides lower energy consumption than equivalent conventional lighting for similar illumination levels
- 24V operation and stated 100-110 lm/W efficacy support efficient lighting system design
- Long service life and IP67 protection can reduce replacement frequency and associated material waste
- The strip is a replaceable component, allowing sections of a lighting installation to be renewed without replacing the entire fitting
Domus Lighting warranty statement dated 9 January 2026: LED strips have a 3-year replacement warranty for residential applications and a 12-month replacement warranty for commercial applications. Warranty eligibility requires installation by a licensed electrician and compliance with Domus installation guidelines. Domus specifies installation on an aluminium heat sink; failure to do so may void the warranty.
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
