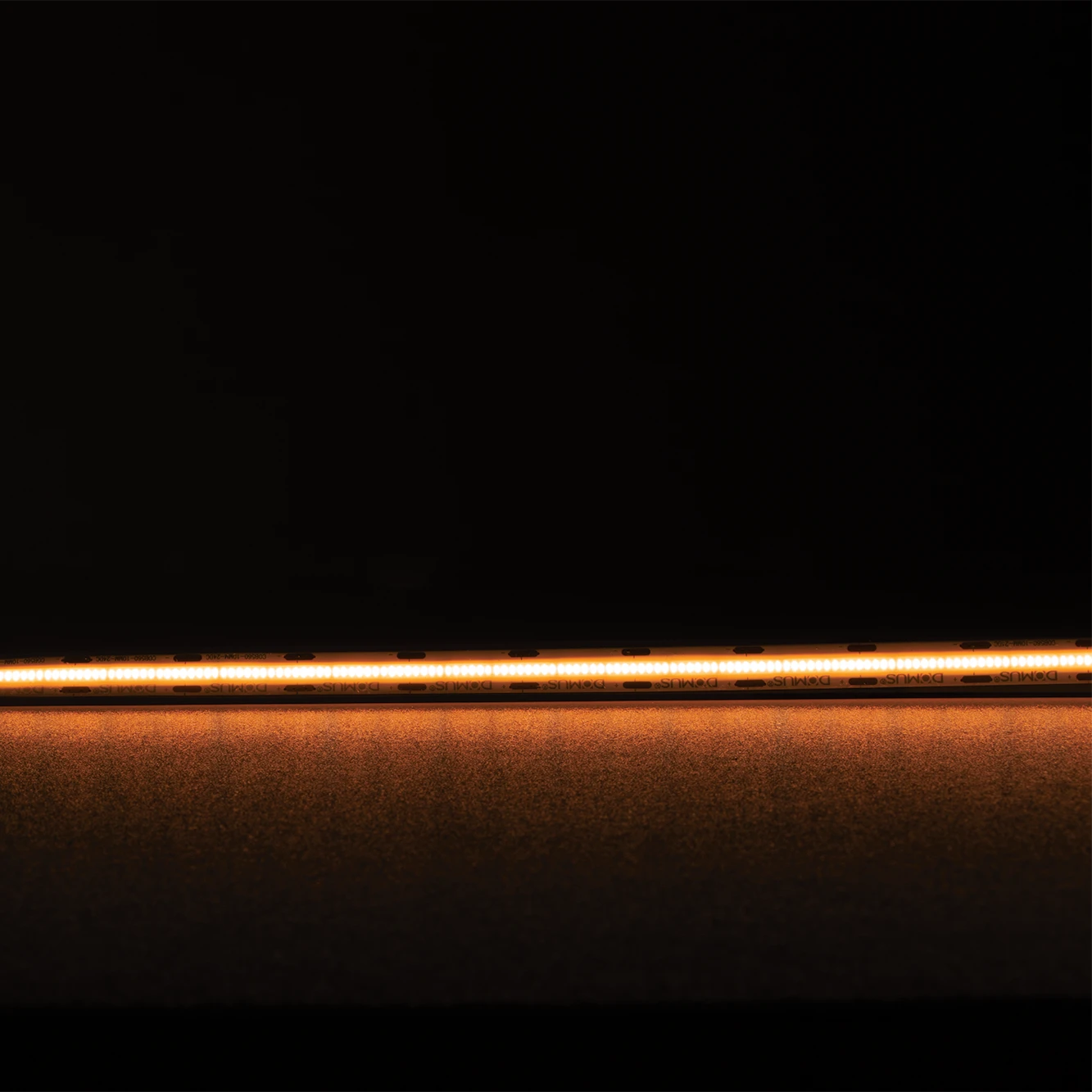

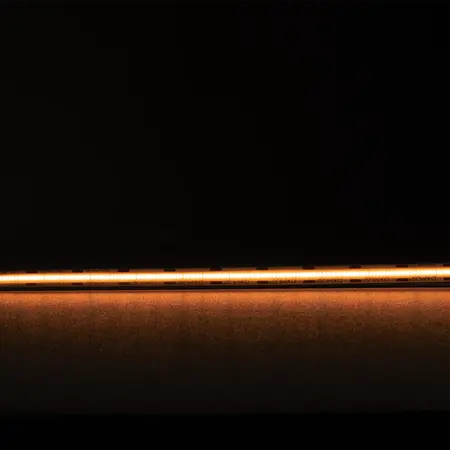

Plex-Ultra COB LED Strip 10W/m 24V IP54 2700K 50m Roll Domus
Domus Plex-Ultra COB LED Strip, 10W/m, 24V DC, IP54, CRI90, 560 LED/m, 2700K, 50m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Plex-Ultra Extra Warm White COB LED Strip, Dotless LED Strip, 24V LED Tape Light
- Light Source: COB LED
- Colour Temperature: 2700K extra warm white
- Lumen Output: 670 lm/m
- Power Consumption: 10W/m
- Input Voltage: 24V DC
- Colour Rendering Index: CRI ≥90
- LED Density: 560 LEDs/m
- Beam Angle: 180°
- Wiring: Parallel
- IP Rating: IP54
- Cutting Increment: 25mm
- Maximum Continuous Run: 13m with one-end feed or 26m with two-end feed
- Dimming: Yes, with suitable dimmer
- Required Driver: 24V DC constant-voltage LED driver
- Roll Length: 50m
- Dimensions (H x L x W): 2.8mm x 50000mm x 10mm
- Weight: 2.2 kg
- Dotless COB LED appearance for smooth, continuous linear illumination
- 2700K extra warm white colour temperature
- High CRI90 output for improved colour rendering
- Long-run design with reduced heat and resistance
- Dimmable with compatible equipment
- Suitable for indoor areas including kitchens, bathrooms, laundries, bars and restaurants
- Must be installed on an aluminium heat sink for thermal management and warranty validity
- Installation should be completed by a licensed electrician, with a compatible 24V DC constant-voltage LED driver, suitable dimming equipment where required, and aluminium heat-sinking installed in accordance with Domus Lighting instructions.
- Residential cove, task and accent lighting
- Kitchen, bathroom and laundry highlighting
- Commercial bar and restaurant lighting
- Retail display and joinery illumination
- Architectural and other indoor linear lighting installations
- AS/NZS 60598.2.23:2021 – relevant requirements for extra-low-voltage lighting systems; confirm system-level compliance for the complete strip, driver and installation
- AS/NZS 3000:2018 – relevant electrical installation requirements for the connected lighting system
- LED technology provides energy-efficient illumination compared with many conventional light sources
- 24V DC operation and long-run design can reduce resistive losses in extended installations
- Aluminium heat-sinking supports thermal management and may help extend service life when correctly installed
- LED lighting contains no UV or infrared output according to the manufacturer’s product documentation
Domus COB LED Strips carry a 3-year replacement warranty for residential applications and a 12-month replacement warranty for commercial applications. Warranty extends to 5 years residential or 2 years commercial when used with Domus drivers. Installation on an aluminium heat sink and by a licensed electrician is required for warranty eligibility.
Available through Domus Lighting and authorised Australian lighting distributors.
