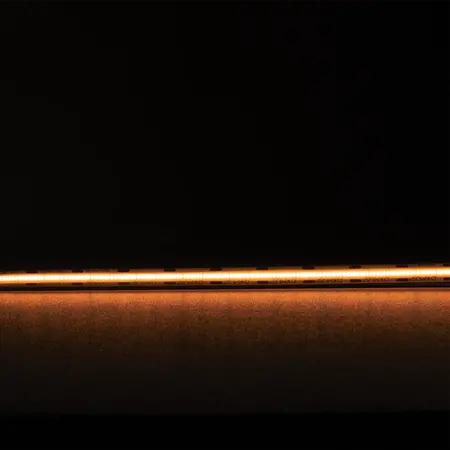

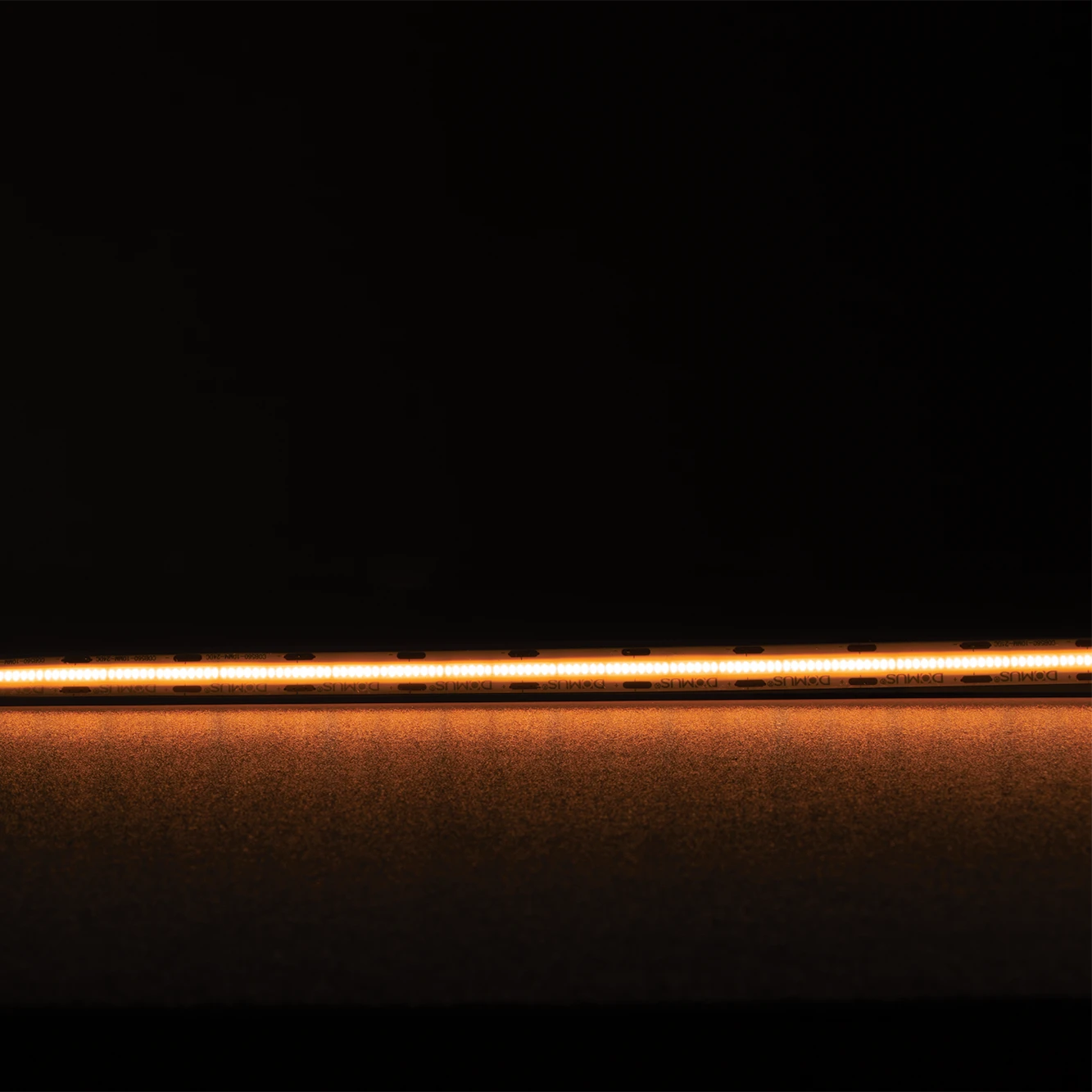

Plex-Ultra COB LED Strip 10W/m 24V IP54 2700K Per Metre Domus
Domus Plex-Ultra COB LED Strip, 10W/m, 24V DC, IP54, CRI90, 2700K, sold per metre. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Plex-Ultra 24V COB LED Tape, Domus COB LED Strip, 2700K LED Strip Light
- Light Source: COB LED
- Power Consumption: 10W per metre
- Input Voltage: 24V DC
- Lumen Output: 670lm per metre at 2700K
- Colour Temperature: 2700K extra warm white
- Colour Rendering Index: CRI ≥90
- LED Density: 560 LEDs per metre
- Beam Angle: 180°
- Ingress Protection: IP54
- Dimming: Yes, with a suitable dimmer and compatible 24V constant-voltage driver
- Cutting Increment: 25mm
- Wiring: Parallel
- Maximum Continuous Run: 13m with one-end driver feed; 26m with two-end driver feed
- Driver Requirement: 24V DC constant-voltage LED driver
- Installation Requirement: Install on an aluminium heat sink to manage heat and maintain warranty coverage
- Sales Unit: Sold per metre
- Dimensions (H x L x W): 2.8mm x 1000mm x 10mm
- Weight: 0.1 kg
- COB technology provides smooth, dotless illumination
- Designed for extended run lengths with reduced heat and resistance
- High CRI90 performance for accurate colour rendering
- 2700K extra warm white light suitable for residential and hospitality interiors
- IP54 protection for indoor applications and suitable wet-area environments when installed correctly
- Weldless joint construction for improved reliability
- Dimmable with compatible control equipment
- 25mm cutting increments for flexible length adjustment
- Optional fast-fix and L-joint connectors are available
- Suitable for use with Domus 24V DC constant-voltage drivers
- Installation should be completed by a licensed electrician. Use a compatible 24V DC constant-voltage LED driver, size the driver for the total strip load, install the strip on an aluminium heat sink, and complete any mains-voltage driver connection in accordance with AS/NZS 3000 and the driver manufacturer's instructions.
- Kitchen under-cabinet and task lighting
- Bathroom and laundry feature lighting
- Bar and restaurant accent lighting
- Joinery, shelving and cabinetry illumination
- Retail displays and commercial feature lighting
- Architectural cove and linear lighting installations
- Applicable installation standard: AS/NZS 3000 for the electrical installation and connection of the 24V DC driver system
- Applicable LED controlgear standard: AS/NZS 61347.2.13 for the separate LED driver used with LED modules
- Applicable luminaire framework: AS/NZS 60598.1 where the LED strip is incorporated into a complete luminaire assembly
- LED technology provides efficient linear illumination at 10W per metre, helping reduce operating energy compared with higher-power conventional linear light sources
- Cut-to-length 25mm increments can reduce offcut waste during installation
- Extended-run design can reduce the number of driver feed points and associated installation materials
- Low-voltage 24V DC operation supports efficient, controlled lighting systems when paired with a suitable driver
Domus COB LED Strips have a 3-year replacement warranty for residential applications and a 12-month replacement warranty for commercial applications. When used with Domus drivers, total replacement warranty coverage is 5 years residential or 2 years commercial. Warranty eligibility requires installation by a licensed electrician and compliance with Domus installation guidelines, including use of an aluminium heat sink for the LED strip.
Available through Domus Lighting and authorised Australian distributors.
