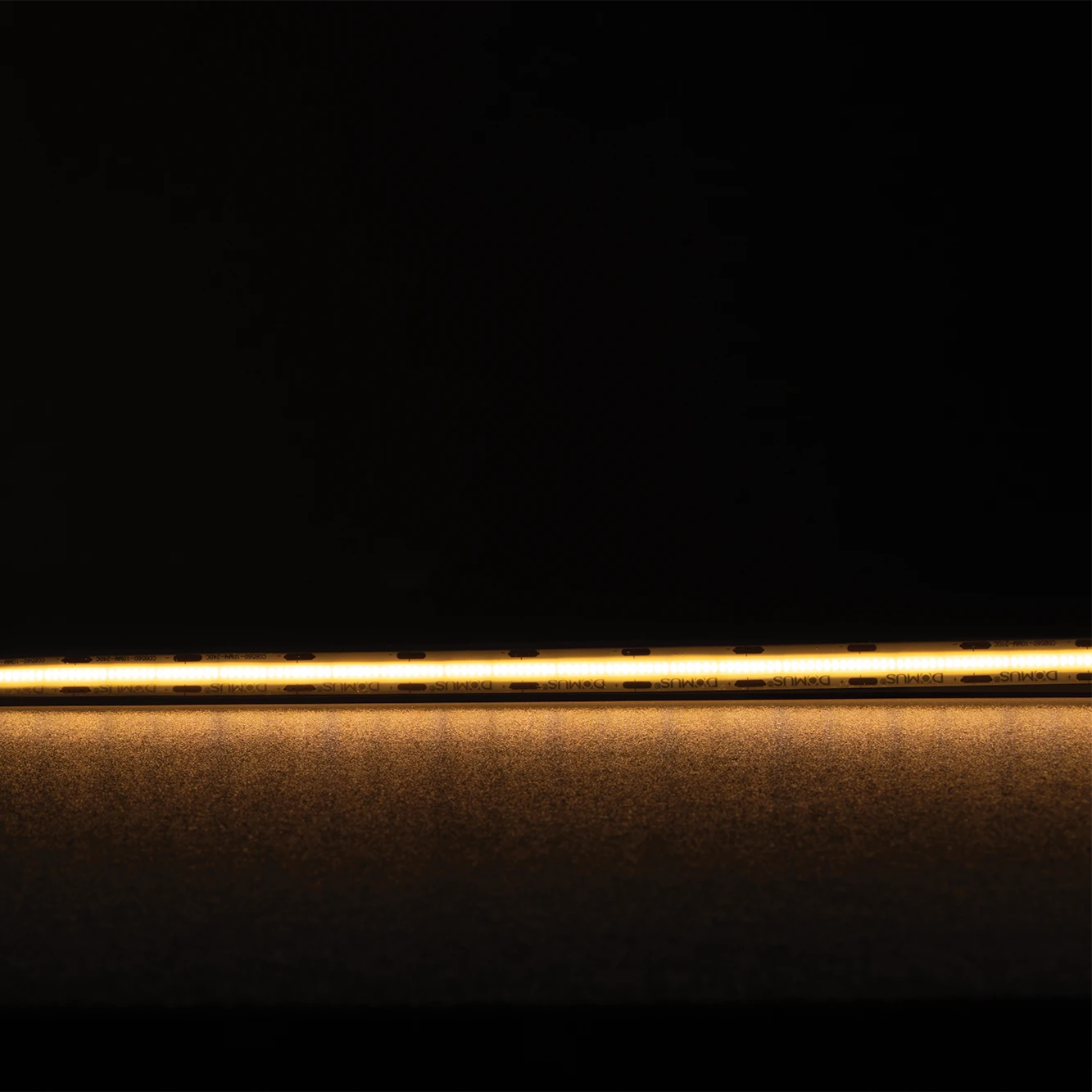

Plex-Ultra COB LED Strip 10W/m 24V IP54 3000K 50m Roll Domus
Domus Plex-Ultra COB LED Strip, 10W/m, 24V DC, IP54, CRI90, 560 LED/m, 3000K, 50m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Domus PLEX-ULTRA COB LED Tape, 24V LED Strip Light, Dotless COB LED Strip, Warm White LED Tape
- LED Technology: COB true dotless LED strip
- Input Voltage: 24V DC
- Power Consumption: 10W per metre
- Luminous Output: 770lm per metre at 3000K
- Colour Temperature: 3000K warm white
- LED Density: 560 LEDs per metre
- Colour Rendering Index: ≥90 CRI
- Ingress Protection: IP54; suitable for indoor wet areas
- Beam Angle: 180°
- Dimming: Yes, with a compatible LED driver and dimmer
- Cutting Increment: 25mm
- Wiring: Parallel
- Maximum Continuous Run: 5m with one-end driver feed; 10m with two-end driver feed
- Operating Temperature: -20°C to 50°C
- Lifespan: 50,000 hours
- Driver Requirement: 24V DC constant-voltage LED driver
- Installation Requirement: Must be installed on an aluminium heat sink
- Roll Length: 50m
- Dimensions (H x L x W): 4.5mm x 50000mm x 12mm
- Weight: 4.5 kg
- True dotless COB illumination for a continuous, seamless appearance
- High CRI90 output for accurate colour rendering
- 24V DC operation supports longer runs with reduced resistive heat
- IP54 construction suitable for indoor wet-area applications
- Weldless joint construction improves continuity and reliability
- Dimmable with suitable 24V LED control equipment
- 25mm cutting increments for flexible installation
- Compatible fast-fix and L-joint connectors available
- Designed for kitchens, bathrooms, laundries, bars, restaurants and feature lighting
- Installation should be completed by a licensed electrician, particularly where the 24V driver connects to mains power. Install the strip on an aluminium heat sink and use a compatible 24V DC constant-voltage LED driver. Follow Domus installation instructions and applicable wiring requirements.
- Residential feature and accent lighting
- Kitchen, bathroom and laundry lighting
- Bar, restaurant and hospitality interiors
- Cabinet, joinery and display lighting
- Commercial architectural and linear lighting
- Indoor wet-area lighting where IP54 protection is suitable
- AS/NZS 60598.2.23:2021 — applicable to extra-low-voltage lighting systems; verify compliance for the complete assembled strip, driver and installation
- AS/NZS 3000 — applicable to the electrical installation and wiring of the associated LED driver
- LED technology provides efficient linear lighting at 10W per metre compared with many conventional light sources
- 50,000-hour rated lifespan can reduce replacement frequency and associated waste
- 24V DC operation and reduced resistive heat support efficient long-run lighting installations
- Aluminium heat-sink installation assists thermal management and may extend service life
Domus COB LED strips are covered by a 3-year replacement warranty for residential applications, or 12 months for commercial applications. When used with Domus drivers, total replacement warranty coverage extends to 5 years residential or 2 years commercial. Warranty eligibility requires licensed-electrician installation and compliance with Domus installation guidelines.
Available through Domus Lighting and authorised Australian distributors.
