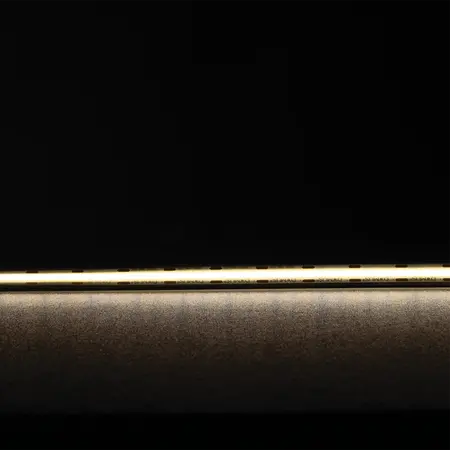

Plex-Ultra COB LED Strip 10W/m 24V IP54 4000K 50m Roll Domus
Domus Plex-Ultra COB LED Strip, 10W/m, 24V DC, IP54, CRI90, 560 LED/m, 4000K, 50m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Plex Ultra LED Strip, COB LED Strip, Dotless LED Strip, 24V LED Tape, Neutral White LED Strip
- Light Source: COB LED
- Colour Temperature: 4000K neutral white
- Lumen Output: 790 lm/m
- Colour Rendering Index: CRI ≥90
- LED Density: 560 LEDs/m
- Power Consumption: 10W/m; 500W per 50m roll
- Input Voltage: 24V DC
- Beam Angle: 180°
- Wiring: Parallel
- Ingress Protection: IP54
- Cutting Increment: 25mm
- Continuous Run: 13m with one-end driver feed; 26m with two-end driver feed
- Dimming: Yes, with a suitable 24V constant-voltage driver and dimmer
- Required Driver: 24V DC constant-voltage LED driver
- Installation Base: Aluminium heat sink required; omission may void warranty
- IES Files: Available
- Dimensions (H x L x W): 2.8mm x 50000mm x 10mm
- Weight: 2.5 kg
- COB technology provides a smooth, dotless light appearance
- High CRI90 output for improved colour rendering
- Long-run design reduces voltage-drop and resistive heat issues
- 4000K neutral white suitable for residential and commercial linear lighting
- IP54 protection for indoor use, including suitable wet-area applications
- 25mm cutting sections for customised lengths
- Parallel wiring for consistent strip operation
- Dimmable with compatible 24V driver and dimmer
- Designed for kitchens, bathrooms, laundries, bars, restaurants and indoor highlighting
- Installation should be performed by a licensed electrician. Use a correctly sized 24V DC constant-voltage LED driver, comply with the driver manufacturer's wiring requirements, install the strip on an aluminium heat sink, and follow applicable Australian wiring requirements. Domus warranty eligibility requires installation by a licensed electrician.
- Kitchen under-cabinet and task lighting
- Bathroom and laundry feature lighting in suitable protected locations
- Cove, pelmet and shadow-gap lighting
- Retail, hospitality and restaurant linear lighting
- Display, joinery and architectural highlighting
- Long-run residential and commercial interior lighting
- AS/NZS 60598.2.23:2021 – relevant to extra-low-voltage lighting systems; confirm compliance of the complete assembled installation, including LED driver
- AS/NZS 60598.1:2017 – general luminaire safety requirements applicable to the completed lighting assembly
- AS/NZS 3000:2018 – wiring and installation requirements for the associated electrical installation
- LED technology can reduce energy consumption compared with conventional fluorescent or incandescent linear lighting
- 24V DC operation supports efficient extra-low-voltage lighting system design
- Long continuous runs can reduce the number of joins, connectors and associated installation materials
- Aluminium heat sinks used for installation are durable and recyclable
- Efficient thermal management can help extend strip service life and reduce replacement waste
Domus warranty: residential COB LED strips receive 3 years replacement warranty, extended to a total of 5 years when used with Domus drivers; commercial COB LED strips receive 12 months replacement warranty, extended to a total of 2 years when used with Domus drivers. Warranty conditions include licensed-electrician installation, adherence to installation instructions and use of an aluminium heat sink. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2026/01/Warranty-Statement-Revised-09-01-2026.pdf))
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
