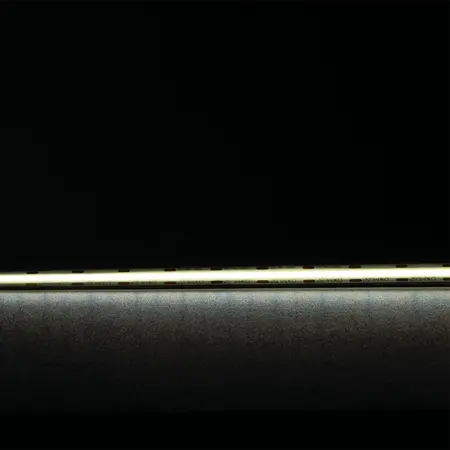

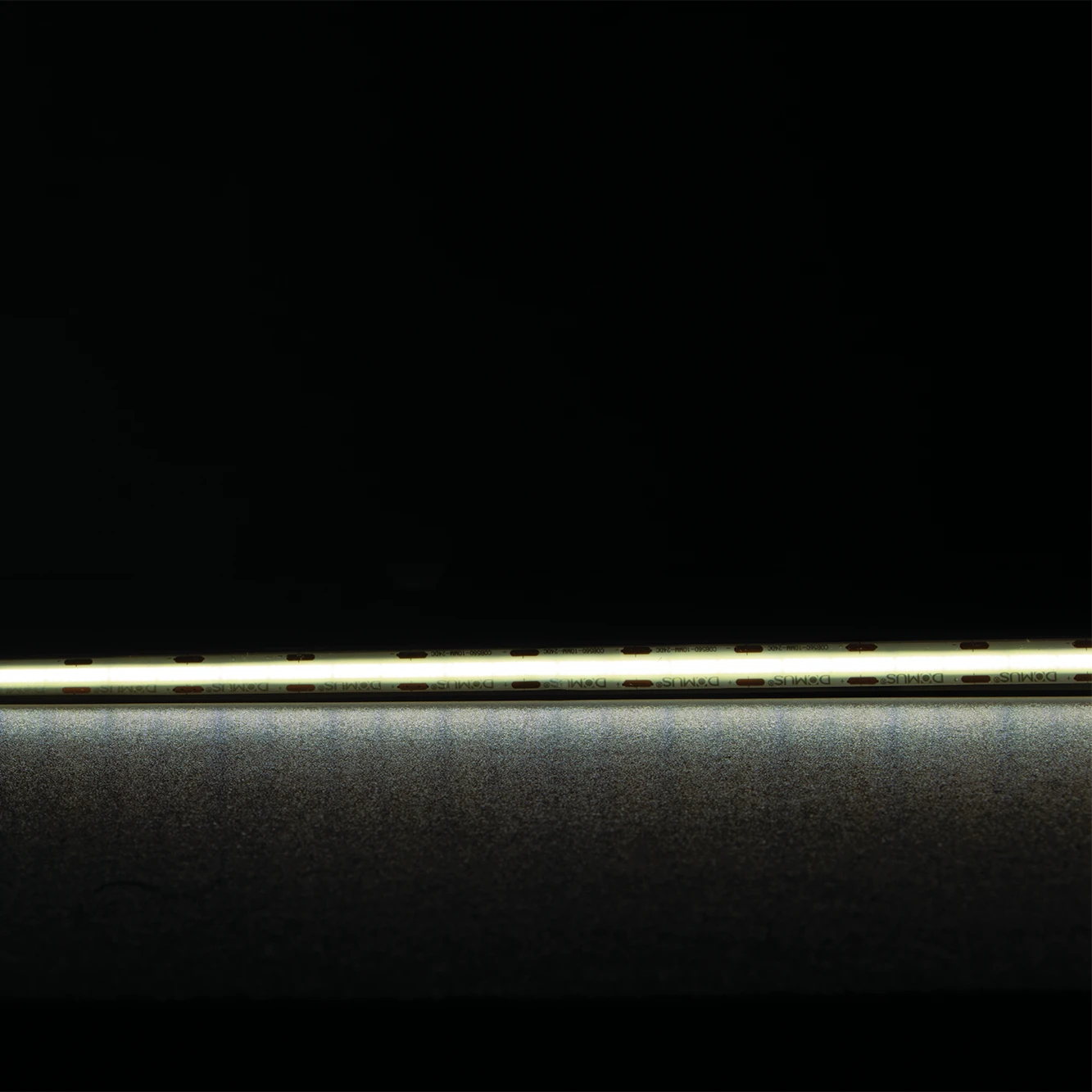

Plex-Ultra COB LED Strip 10W/m 24V IP54 5000K 50m Roll Domus

BRAND: Domus Lighting
SKU: 24182
$1,816.20 List price: $2,421.60
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
Domus Plex-Ultra COB LED Strip, 10W/m, 24V DC, IP54, CRI90, 560 LED/m, 5000K, 50m roll. Requires 24V DC LED driver.

Alternatively Known As: Plex-Ultra COB LED Tape, Domus COB LED Strip, Dotless LED Strip, 24V LED Strip Light

Technical Specifications
  • Light Source: COB LED
  • Power Consumption: 10W per metre
  • Input Voltage: 24V DC
  • Lumen Output: 810lm per metre at 5000K
  • Colour Temperature: 5000K
  • Colour Rendering Index: ≥90
  • LED Density: 560 LEDs per metre
  • Beam Angle: 180°
  • IP Rating: IP54
  • Wiring: Parallel
  • Cutting Increment: 25mm
  • Dimming: Yes, with suitable LED driver and dimmer
  • Continuous Run: Up to 13m with one-end driver feed or 26m with two-end driver feed
  • Required Driver: 24V DC constant-voltage LED driver
  • Installation Base: Aluminium heat sink required
  • Operating Environment: Indoor use, including suitable wet areas
  • Dimensions (H x L x W): 2.8mm x 50000mm x 10mm
  • Weight: 2.5 kg
Key Features
  • True dotless COB illumination
  • Designed for extended run lengths with reduced heat and resistance
  • 50m roll length for larger linear lighting installations
  • High CRI90 output for accurate colour rendering
  • 24V DC operation
  • IP54 protection for indoor and suitable wet-area applications
  • Dimmable with compatible driver and dimmer
  • Weldless joint construction for improved reliability
  • 25mm cutting increments
  • Optional fast-fix and L-joint connectors available
Professional Installation Requirements
  • Installation should be performed by a licensed electrician using a compatible 24V DC constant-voltage LED driver. Install the strip on a suitable aluminium heat sink; Domus states that failure to do so will void the warranty. Follow applicable wiring and lighting installation requirements.
Applications
  • Residential feature lighting
  • Kitchen and cabinet lighting
  • Bathroom and laundry lighting in suitable locations
  • Commercial bars and restaurants
  • Retail and display lighting
  • Architectural and cove lighting
  • Long-run linear lighting installations
Standards & Compliance
  • AS/NZS 60598.1:2017 may apply to the completed luminaire or lighting assembly
  • AS/NZS 60598.2.23:2021 may apply to extra-low-voltage lighting systems using ELV light sources
  • AS/NZS 3000 applies to the associated electrical installation and wiring
Environmental Benefits
  • LED technology provides efficient low-voltage lighting at 10W per metre
  • 24V DC operation supports extra-low-voltage lighting system design
  • The 50m roll format can reduce installation joints and associated material waste on long runs
  • Compatible with dimming controls, allowing light output and energy use to be reduced when full output is not required
Warranty Information

Domus COB LED Strips are covered by a 3-year replacement warranty for residential applications, extending to a total 5-year replacement warranty when used with Domus drivers. Commercial applications receive a 12-month replacement warranty, extending to a total 2 years when used with Domus drivers. Warranty eligibility requires installation by a licensed electrician and installation on an aluminium heat sink.

Available Now

Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
