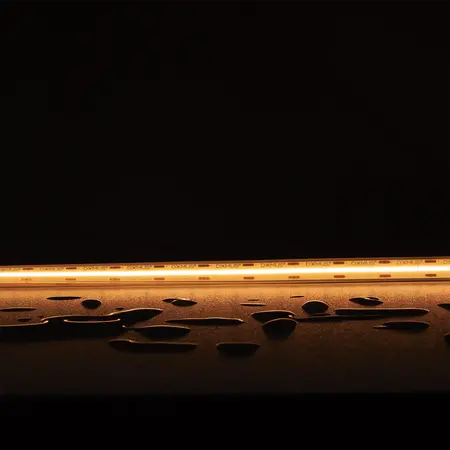

Plex-Ultra COB LED Strip 10W/m 24V IP67 2700K Per Metre Domus
Domus Plex-Ultra COB LED Strip, 10W/m, 24V DC, IP67, CRI90, 2700K, sold per metre. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Plex Ultra IP67 LED Strip, COB LED Tape Light, Waterproof LED Strip, 24V LED Strip Lighting
- Light Source: COB LED
- Colour Temperature: 2700K extra warm white
- Power Consumption: 10W per metre
- Input Voltage: 24V DC
- Lumen Output: 550 lm per metre
- Colour Rendering Index: CRI ≥90
- LED Density: 560 LEDs per metre
- Beam Angle: 180°
- Wiring: Parallel
- Ingress Protection: IP67
- Cutting Increment: 25mm
- Maximum Continuous Run: 13m with single-end feed; 26m with feeds at both ends
- Dimming: Yes, with suitable dimmers
- Required Driver: 24V DC constant-voltage LED driver
- Installation Requirement: Install on an aluminium heat sink
- Sales Unit: Sold per metre
- Dimensions (H x L x W): 4.5mm x 1000mm x 10mm
- Weight: 0.1 kg
- COB LED technology produces a smooth, dotless lighting effect
- IP67 silicone-coated construction for waterproof installations
- 24V DC operation supports extended run lengths with reduced resistive heat
- High CRI90 output for accurate colour rendering
- Dimmable with compatible control equipment
- 560 LEDs per metre for uniform illumination
- Weldless joint construction improves continuity and reliability
- 25mm cutting sections simplify length adjustment
- Optional fast-fix and L-joint connectors available
- Installation should be completed by a licensed electrician using a compatible 24V DC constant-voltage LED driver and suitable dimming equipment. The strip must be installed on an aluminium heat sink; failure to do so may void the warranty. Follow the manufacturer's installation instructions and applicable Australian electrical requirements.
- Kitchen under-cabinet and joinery lighting
- Bathroom and laundry feature lighting
- Bar and restaurant lighting
- Architectural and decorative linear lighting
- Wet-area and waterproof indoor lighting installations
- Display, shelving and cove lighting
- Applicable luminaire safety requirements: AS/NZS 60598.1:2017
- Applicable extra-low-voltage lighting system requirements: AS/NZS 60598.2.23:2021
- Associated 24V LED driver/controlgear should comply with AS 61347.2.13:2018 and AS/NZS 61347.1:2016
- LED technology provides efficient linear illumination at 10W per metre
- Low-voltage 24V DC operation can support efficient, controlled lighting system design
- Longer continuous runs can reduce the number of separate driver connections and associated installation materials
- Aluminium heat-sink installation supports thermal management and product longevity
- LED strip components and aluminium heat sinks can be separated for recycling at end of service life
Domus COB LED strips have a 3-year replacement warranty for residential applications and a 12-month replacement warranty for commercial applications. When used with Domus drivers, the warranty extends to a total of 5 years residential or 2 years commercial. Warranty eligibility requires installation by a licensed electrician in accordance with Domus installation guidelines, including installation on an aluminium heat sink.
Available through Domus Lighting and authorised Australian lighting distributors; supplied by the metre for the 2700K IP67 variant.
