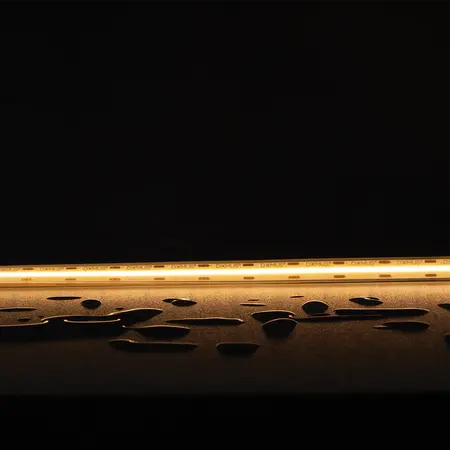

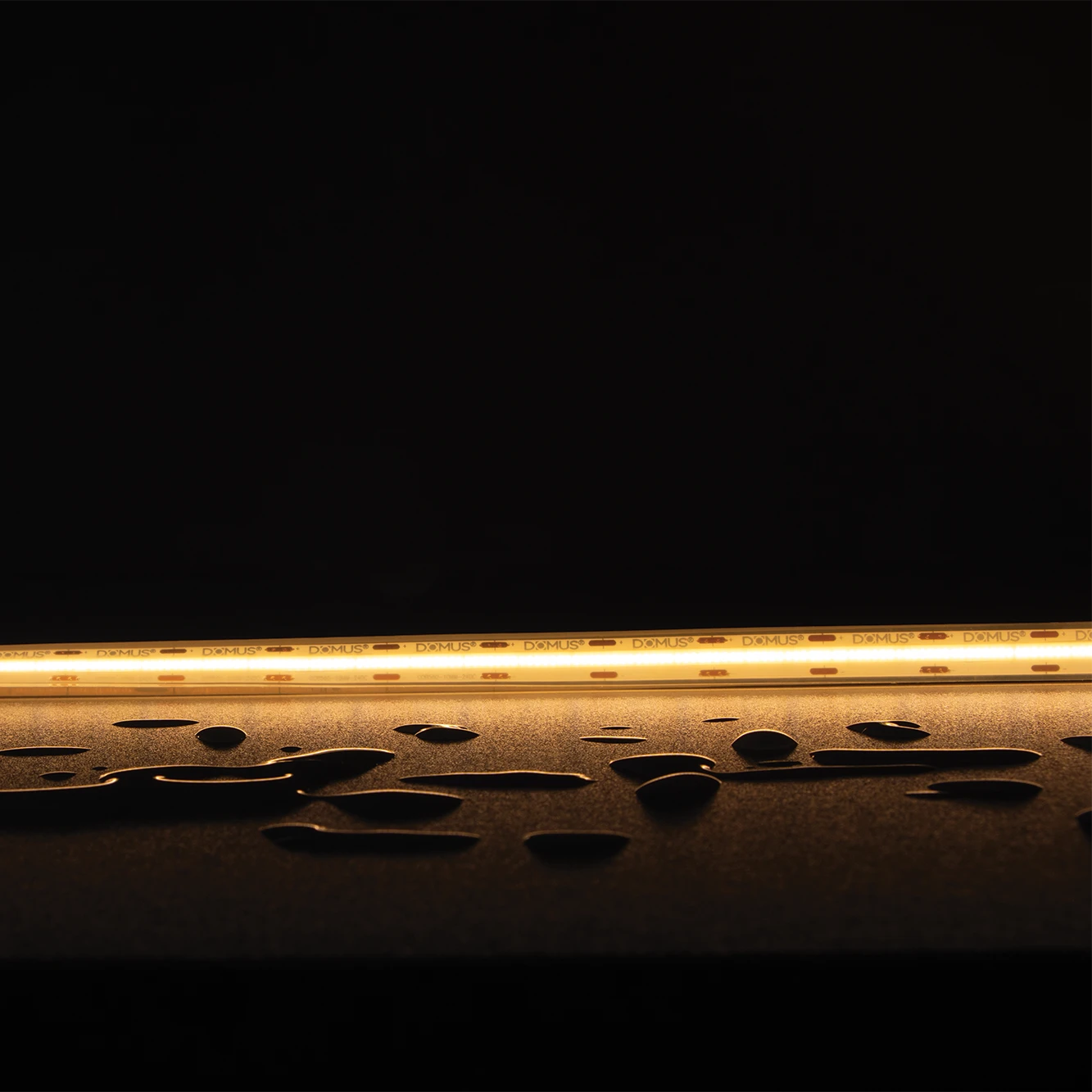

Plex-Ultra COB LED Strip 10W/m 24V IP67 3000K 50m Roll Domus
Domus Plex-Ultra COB LED Strip, 10W/m, 24V DC, IP67, CRI90, 560 LED/m, 3000K, 50m roll. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Plex-Ultra IP67 COB LED Strip, 24V Waterproof LED Tape, Dotless COB Strip Light
- Light Source: COB LED
- Input Voltage: 24V DC
- Power Consumption: 10W per metre; 500W per 50m roll
- Luminous Output: 650lm per metre at 3000K
- Colour Temperature: 3000K warm white
- Colour Rendering Index: CRI ≥90
- LED Density: 560 LEDs per metre
- Beam Angle: 180°
- Ingress Protection: IP67
- Cutting Increment: 25mm
- Maximum Continuous Run: 13m with one-end feed; 26m with feeds at both ends
- Wiring: Parallel
- Dimming: Yes, with suitable dimmer and compatible driver
- Required Driver: 24V DC constant-voltage LED driver
- Heat Management: Must be installed on an aluminium heat sink
- Construction: Silicone-coated waterproof strip with weldless joint construction
- Dimensions (H x L x W): 4.5mm x 50000mm x 12mm
- Weight: 3.5 kg
- Dotless COB illumination for a continuous linear appearance
- Designed for extended run lengths with reduced heat and resistance
- IP67 protection for waterproof applications when correctly installed
- High CRI90 output for improved colour rendering
- 560 LEDs per metre for smooth, uniform illumination
- 25mm cutting increments
- Dimmable with suitable control equipment
- 50m roll format for large-scale linear lighting installations
- Optional fast-fix and L-joint connectors available
- Installation should be performed by a suitably qualified electrician or lighting professional. Use a compatible 24V DC constant-voltage driver, provide appropriate heat dissipation with an aluminium heat sink, and follow the manufacturer's maximum run-length and wiring requirements. Any 230V mains-side driver connection must comply with applicable Australian electrical installation requirements.
- Architectural cove and feature lighting
- Kitchen, bathroom and laundry lighting
- Retail, hospitality and restaurant fit-outs
- Display, joinery and cabinetry lighting
- Commercial linear lighting installations
- Water-resistant indoor and protected outdoor lighting applications
- AS/NZS 60598.1 may apply to the complete assembled luminaire and installation; verify the manufacturer's applicable conformity documentation
- AS/NZS 3000 applies to the associated electrical installation and mains-connected LED driver
- IP67 ingress protection should be verified for the complete installed system, including end caps, connectors and cable entries
- LED technology provides lower energy consumption than comparable conventional lighting technologies
- High luminous efficacy of approximately 65lm/W at the 3000K variant supports efficient linear lighting design
- Long continuous runs can reduce the number of joins, connectors and associated installation materials
- The 24V DC system can be integrated with efficient constant-voltage LED drivers and dimming controls
- Aluminium heat-sink material used for installation is durable and recyclable
Domus Lighting warranty policy: residential COB LED strips have a 3-year replacement warranty, extendable to a total of 5 years when used with Domus drivers. Commercial COB LED strips have a 12-month replacement warranty, extendable to a total of 2 years when used with Domus drivers. Installation on an aluminium heat sink is required for warranty validity.
Available through Domus Lighting and authorised Australian lighting distributors; 50m roll availability should be confirmed with the distributor.
